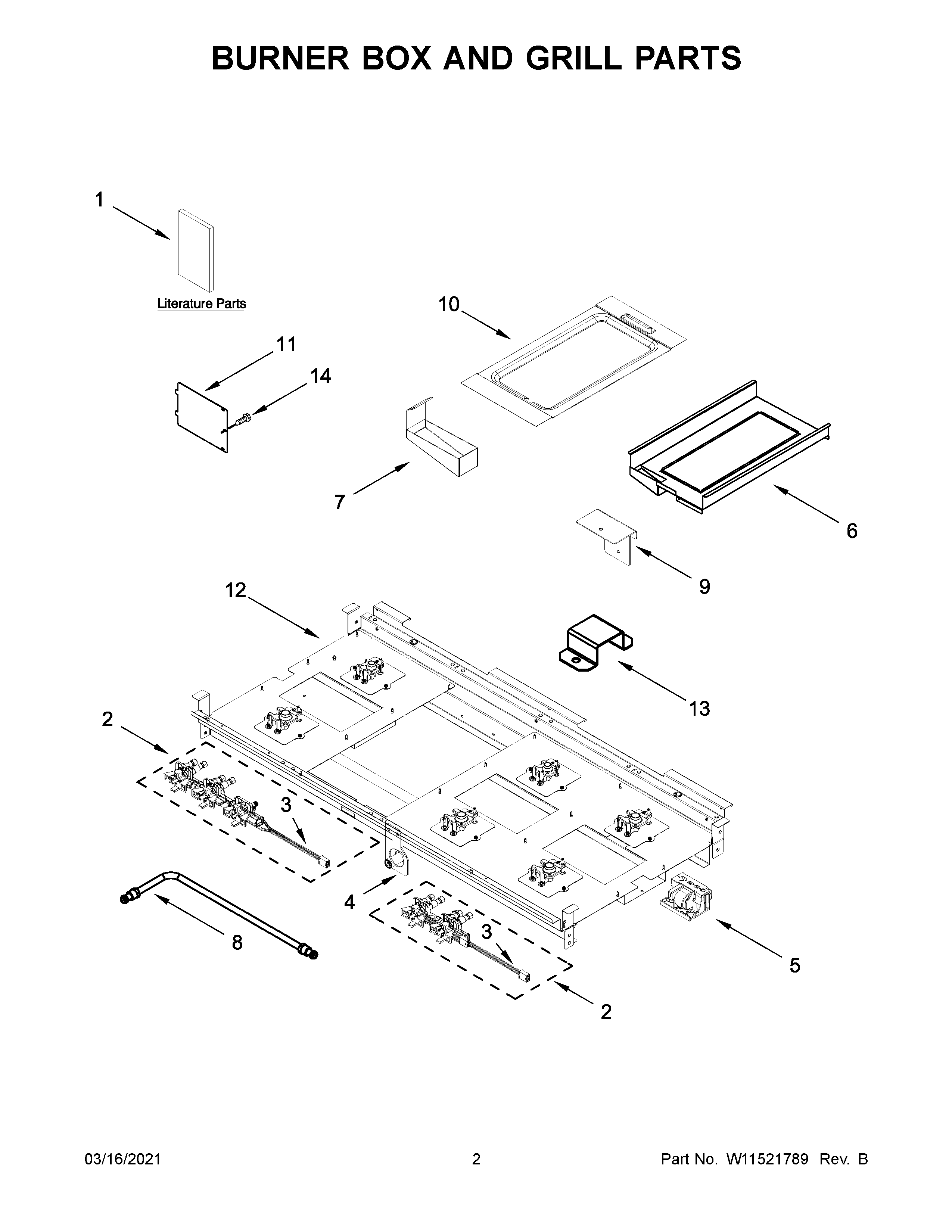

JGRP648HL01 02 – BURNER BOX AND GRILL PARTS

JGRP648HL01 02 – BURNER BOX AND GRILL PARTS

Written by

in

JGRP648HL01 02 – BURNER BOX AND GRILL PARTS

Products

PositionProduct
NIW11317786 Whirlpool Wire Harness
NIHARNESS, COOKTOP
NIHARNESS, MAIN (48")
NIW11317791 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW10624584 Whirlpool Power Cord
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
NIW11428599 Whirlpool Conversion Kit
NIW11446236 Whirlpool Wire Harness
NIW11446239 Whirlpool Wire Harness
1DDIAGRAM, WIRING
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
1BGUIDE, QUICK START
1CGUIDE, INTERNET CONNECTIVITY
1ESHEET, TECH
2W11328262 Whirlpool Manifold
2AW11320019 Whirlpool Manifold
2BW11320017 Whirlpool Manifold
3W11328263 Whirlpool Wire Harness
3AW11320016 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6W11328011 Whirlpool Drip Tray
7W11328012 Whirlpool Drip Tray
8ATUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8TUBE, MANIFOLD SUPPLY (LEFT)
8BTUBE, MANIFOLD SUPPLY (RIGHT)
9BRACKET, GRILL GREASE CAPTURE
10DEFLECTOR, GRILL HEAT
11W10115843 Whirlpool Access Cover
13BRACKET, GRILL ORIFICE HOLDER
14SCREW
