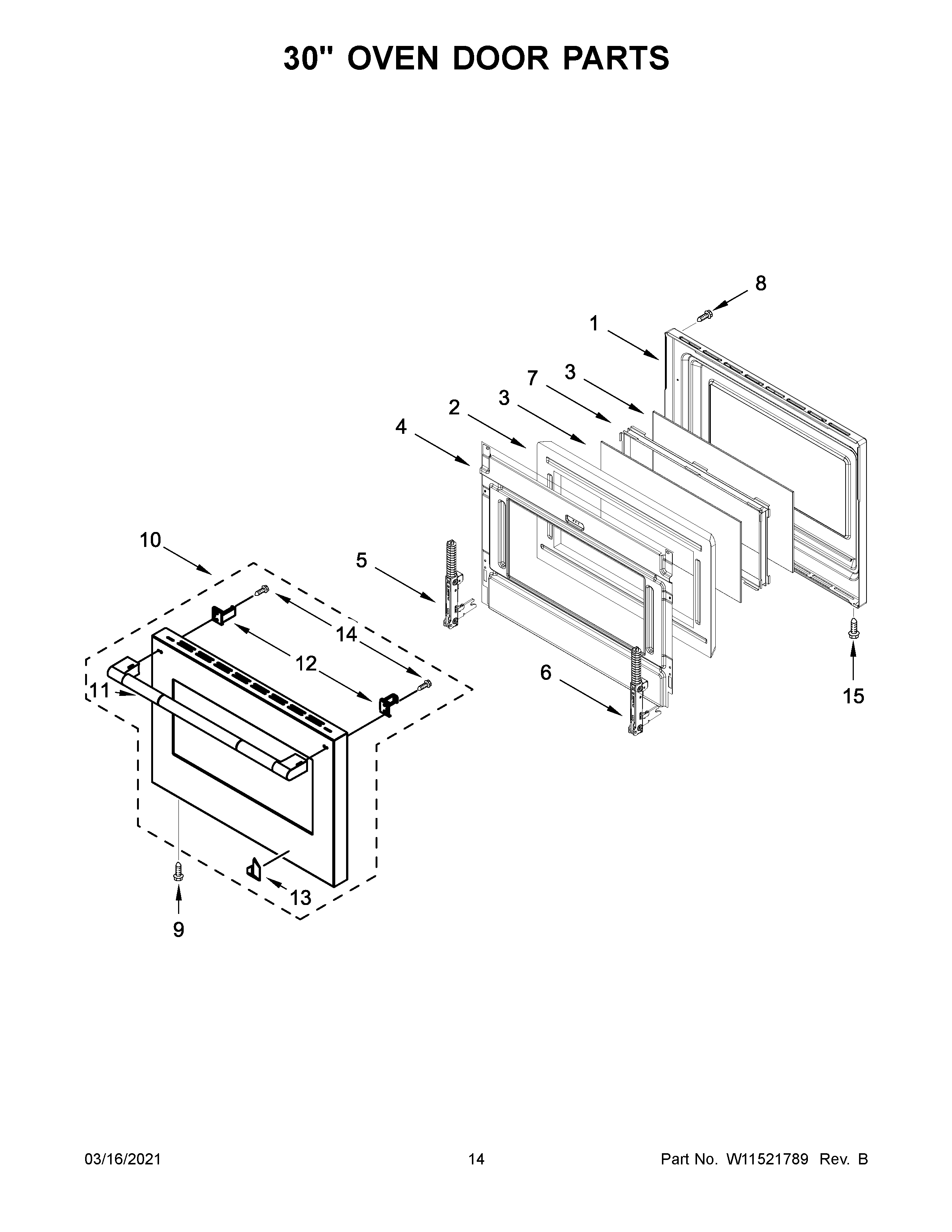

JGRP648HL01 08 – 30″ OVEN DOOR PARTS

Products

Position	Product
1	W11318831 Whirlpool Glass Frame
2	INSULATION, DOOR (30 IN)
3	W11318823 Whirlpool Door Glass
4	RETAINER, GLASS
5	W11643630 Whirlpool Door Hinge
6	W11643898 Whirlpool Door Hinge
7	WPW10272594 Whirlpool Window Frame
8	W11712404 Whirlpool Screw
9	W10162096 Whirlpool Screw
10	W11315557 Whirlpool Door Glass
11	W11317501 Whirlpool Door Handle
12	BRACKET, HANDLE
13	W11317500 Whirlpool Nameplate
14	WPW10276043 Whirlpool Screw
15	W11193480 Whirlpool Screw
