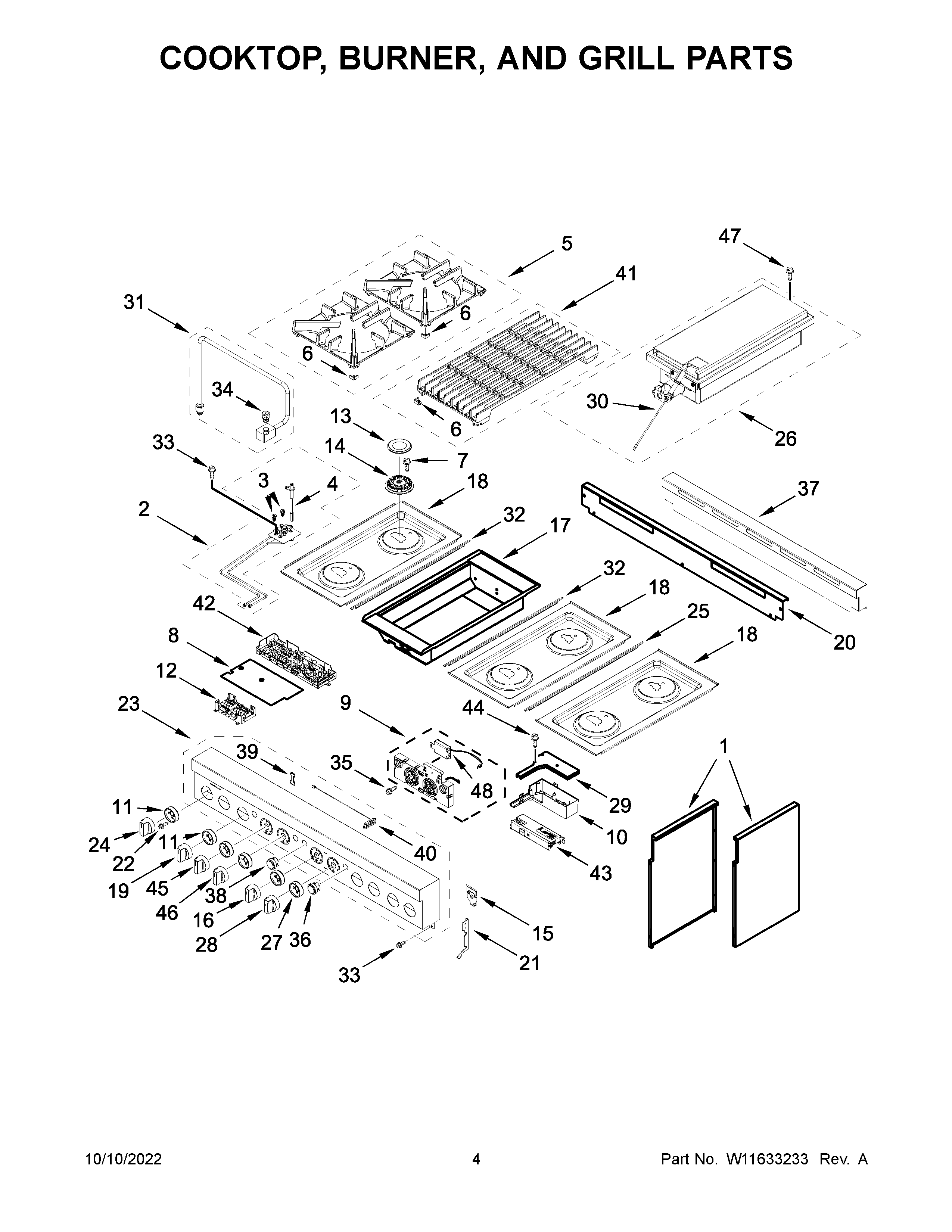

JGRP648HL05 03 – COOKTOP, BURNER, AND GRILL PARTS

JGRP648HL05 03 – COOKTOP, BURNER, AND GRILL PARTS

Written by

in

JGRP648HL05 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

Position	Product
1A	W11320596 Whirlpool Side Assembly
1	W11321067 Whirlpool Complete Side Assembly
2E	ASSEMBLY, ORIFICE HOLDER (RIGHT REAR)
2	W11319741 Whirlpool Orifice Holder
2C	ASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR)
2B	ASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT)
2D	ASSEMBLY, ORIFICE HOLDER (RIGHT FRONT)
2A	W11319746 Whirlpool Orifice Holder
3D	W10892429 Whirlpool Orifice Spud
3B	W10892440 Whirlpool Spud Orifice
3	W11643164 Whirlpool Orifice Spud
3A	W10892418 Whirlpool Range Orifice Spud
3C	W11661909 Whirlpool Range Orifice Spud
4A	W11238756 Whirlpool Surface Igniter
4	W11573760 Whirlpool Surface Igniter
5	W11515370 Whirlpool Burner Grate
6	W11550692 Whirlpool Bumper
7	SCREW
8	W11320149 Whirlpool Insulator
9	W11492275 Whirlpool Electronic Control Board + Core
10	COVER, WIFI OUTER
11	BEZEL-KNOB
12	W11355250-includeCORE Whirlpool W11355250 Refrigerator Electronic Control Board + Core
13	W11319224 Whirlpool Burner Cap
14A	W11319673 Whirlpool Burner Head
14	W11319683 Whirlpool Burner Head
15	W11318207 Whirlpool Clip Assembly
16	W11574370 Whirlpool Knob
17	ASSEMBLY, GRILL BOX
18	W11316696 Whirlpool Cooktop
18B	W11328972 Whirlpool Cooktop
18A	W11316697 Whirlpool Range Cooktop
19	W11620700 Whirlpool Knob
20	W10323252 Whirlpool Trim Top
21A	W10130759 Whirlpool Mounting Bracket
21	W10130760 Whirlpool Bracket Mounting
22	W11509770 Whirlpool Screw
23	WPL W10878258
24	W11574368 Whirlpool Knob
25	W10271524 Whirlpool Trim Top
26	W11328568 Whirlpool Burner Grille
27	W11317499 Whirlpool Knob Bezel
28	W11574369 Whirlpool Range Knob
29	WPL W11205794
30	WPL W11174598
31	WPL W11419278
32	W10291193 Whirlpool Trim Top
33	SCREW
34	WPL W11419282
35	WP3400814 Whirlpool Screw
36	W11319196 Whirlpool Push Button
37	W11516014 Whirlpool Trim Top
38	W11318857 Whirlpool Push Button
39	WPL W10896369
40	W11318855 Whirlpool Antenna
41	W11515378 Whirlpool Grille Grate
42	W11620696-includeCORE Whirlpool W11620696 Refrigerator Electronic Control Board with Core
43	W11234290 Whirlpool Electronic Control Board
44	WPL 7101P62460
45	W11591511 Whirlpool Knob
46	W11620695 Whirlpool Knob
47	WP3196557 Whirlpool Screw
48	W11123146 Whirlpool Speaker
