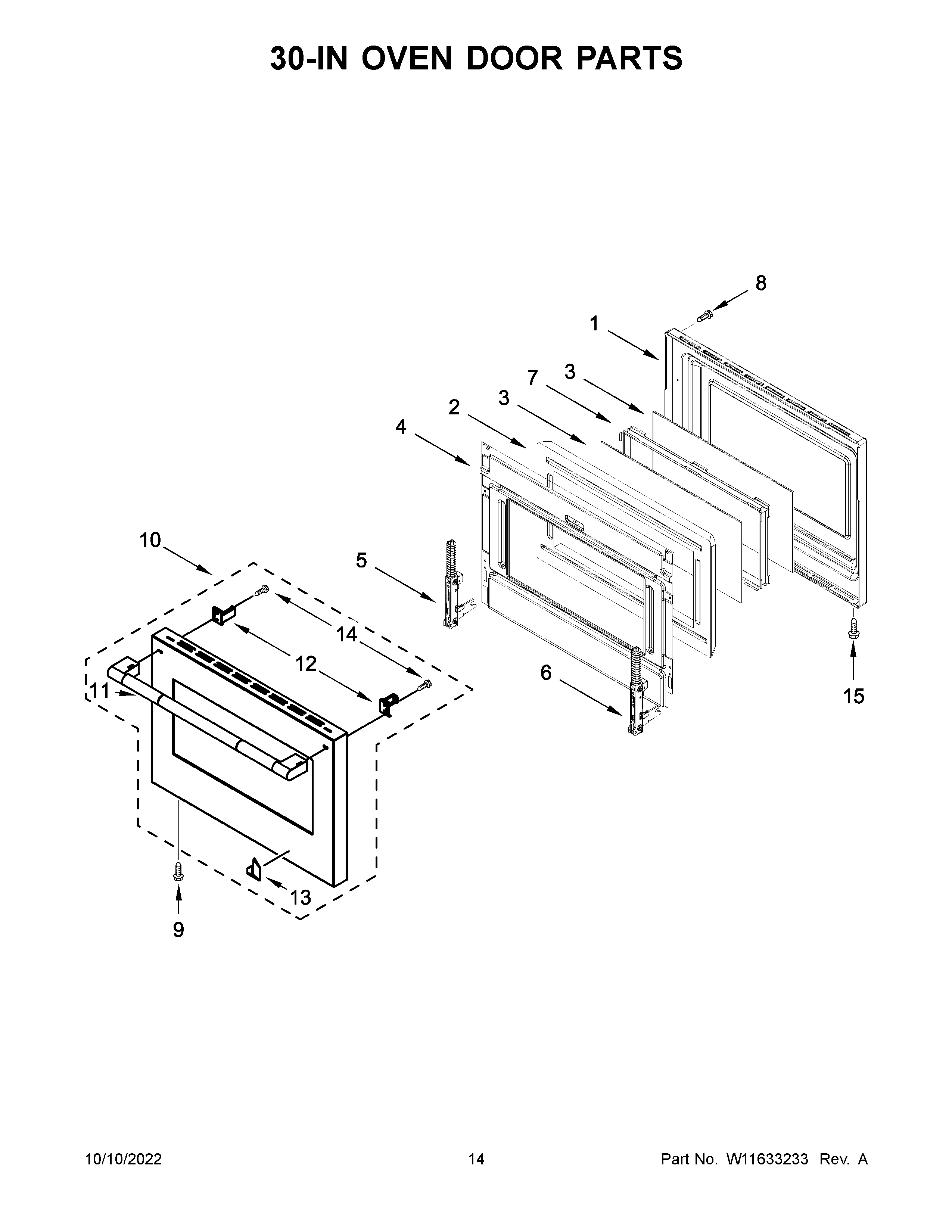

JGRP648HL05 08 – 30-IN OVEN DOOR PARTS

Products

PositionProduct
1W11318831 Whirlpool Glass Frame
2INSULATION, DOOR (30 IN)
3W11318823 Whirlpool Door Glass
4RETAINER, GLASS
5W11643630 Whirlpool Door Hinge
6W11643898 Whirlpool Door Hinge
7WPW10272594 Whirlpool Window Frame
8W11712404 Whirlpool Screw
9W10162096 Whirlpool Screw
10W11315557 Whirlpool Door Glass
11W11317501 Whirlpool Door Handle
12BRACKET, HANDLE
13W11317500 Whirlpool Nameplate
14WPW10276043 Whirlpool Screw
15W11193480 Whirlpool Screw
