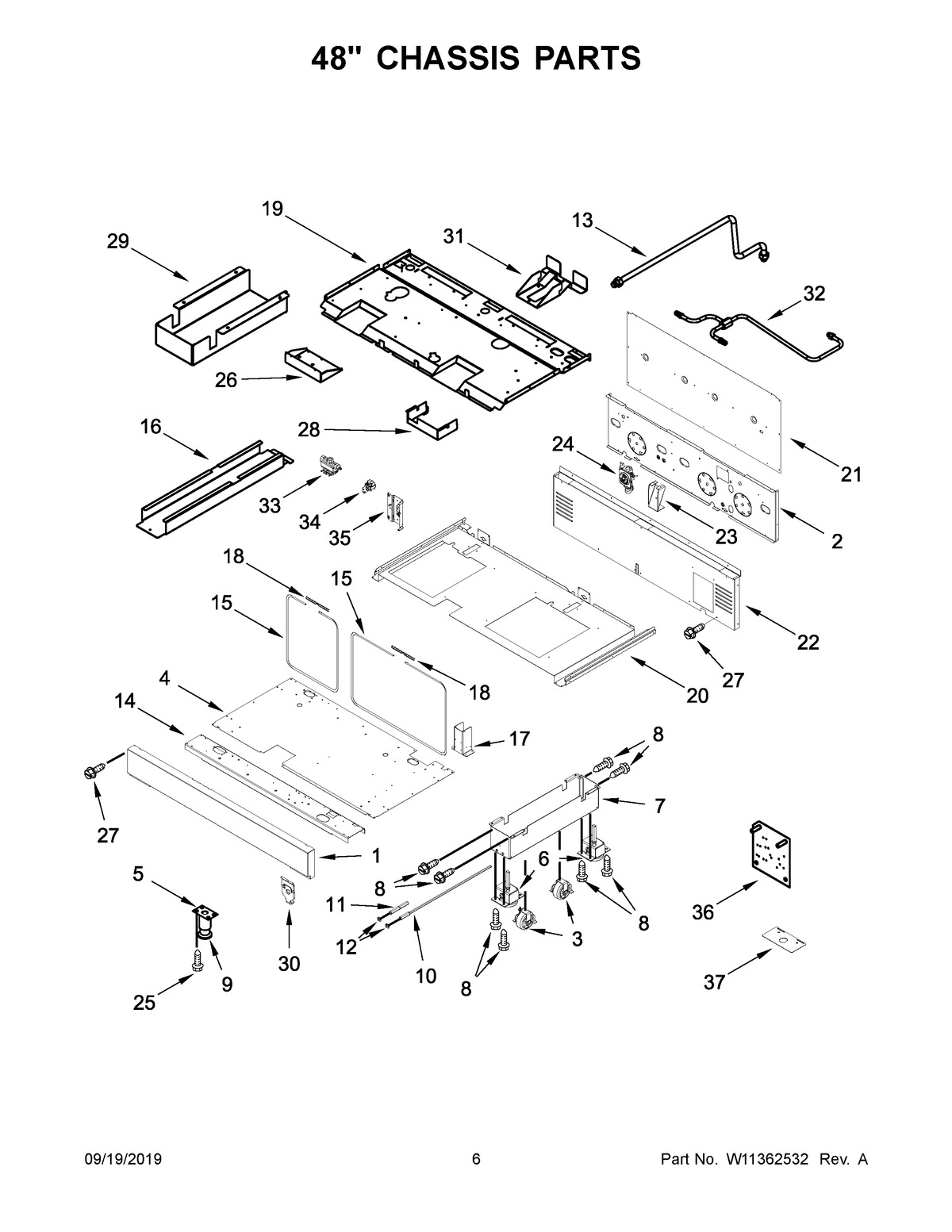

JGRP648HM00 04 – 48″ CHASSIS PARTSadmin2025-04-26T09:21:22+00:00JGRP648HM00 04 – 48″ CHASSIS PARTS
Products
| Position | Product |
|---|
| 1 | KICKPLATE |
| 2 | BACK, CHASSIS |
| 3 | MAY W10138054 |
| 4 | DUCT, BOTTOM (48") |
| 5 | PLATE, MOUNTING FOOT |
| 6 | FOOT |
| 7 | BASE, LEVELING LEG |
| 8 | MAY 4449743 |
| 9 | MAY 9759117 |
| 10 | MAY W10115869 |
| 11 | MAY W10115793 |
| 12 | RING |
| 13 | MAY W11181648 |
| 14 | SUPPORT, CHANNEL |
| 15A | GASKET, OVEN (18") |
| 15 | GASKET, OVEN (30") |
| 16 | DUCT-CHASSIS, REAR |
| 17 | MAY W10115819 |
| 18 | MAY W11362015 |
| 19 | TOP, CHASSIS |
| 20 | CHASSIS, BOTTOM |
| 21 | PANEL, BACK TOP |
| 22 | PANEL, BACK BOTTOM |
| 23 | BRACKET, PRESSURE REGULATOR |
| 24 | REGULATOR, PRESSURE |
| 25 | MAY 3400518 |
| 26 | DRAWER, APPLIANCE MANAGER |
| 27 | MAY 7101P426- 60 |
| 28 | CABINET, APPLIANCE MANAGER |
| 29 | CHANNEL, WIRE |
| 30 | SPRING CLIP, RANGE |
| 31 | MAY W11190223 |
| 32 | MAY W11112366 |
| 33 | MAY W10145680 |
| 34 | MAY W10311268 |
| 35 | MAY W10145362 |
| 36 | MAY W10511278 |
| 37 | MAY W10115855 |
