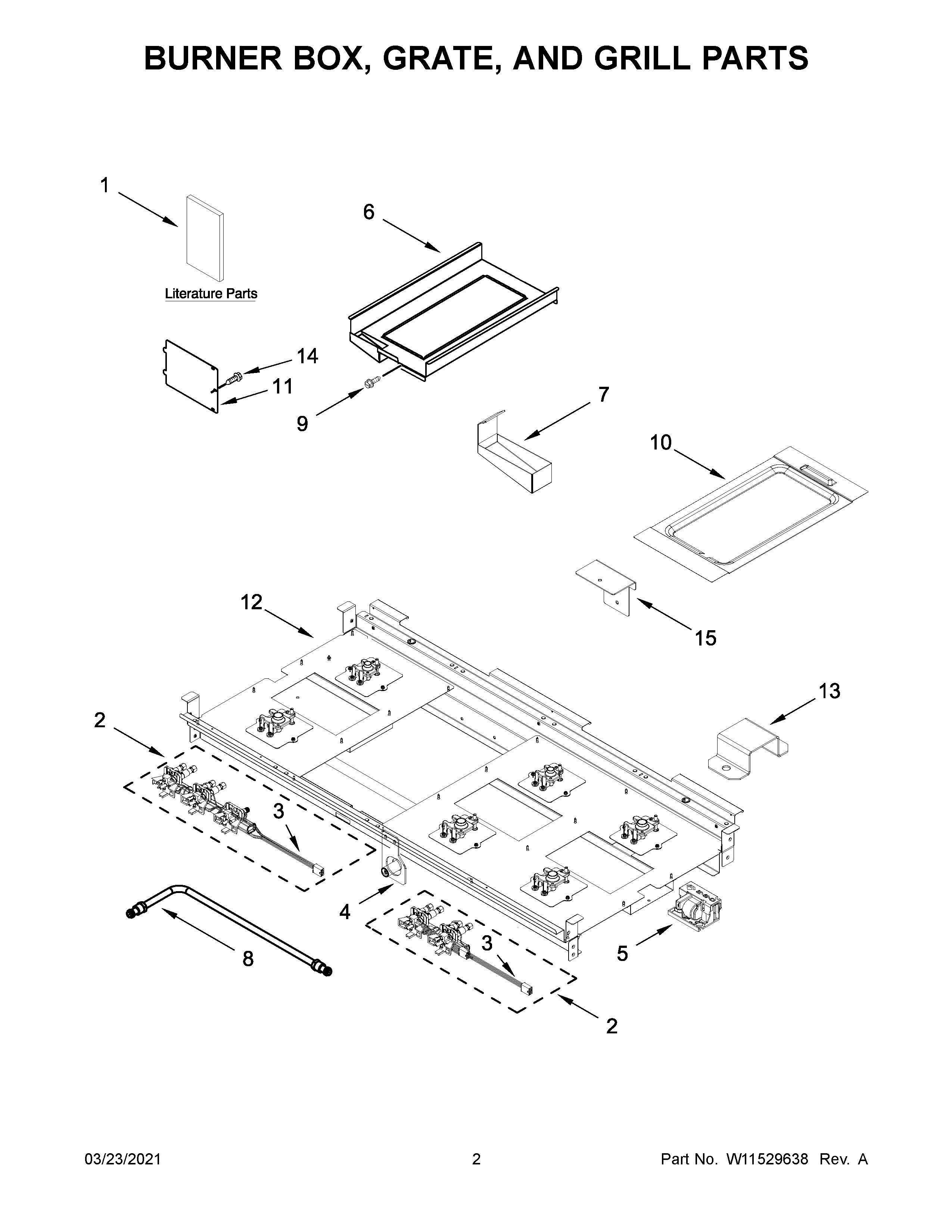

JGRP648HM01 02 – BURNER BOX, GRATE, AND GRILL PARTS

Products

PositionProduct
NIW11317791 Whirlpool Wire Harness
NIHARNESS, COOKTOP
NIHARNESS, MAIN (48")
NIW10624584 Whirlpool Power Cord
NIW10780278 Whirlpool Wire Harness
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NIW11446239 Whirlpool Wire Harness
NIW11446236 Whirlpool Wire Harness
NIW11428599 Whirlpool Conversion Kit
NI4450800 Whirlpool Oven Screw
NICABINET (NOT A SERVICEABLE PART)
NIW11317786 Whirlpool Wire Harness
1AINSTRUCTIONS, INSTALLATION
1DDIAGRAM, WIRING
1ESHEET, TECH
1BGUIDE, INTERNET CONNECTIVITY
1CGUIDE, QUICK START
1GUIDE, USE AND CARE
2BW11320017 Whirlpool Manifold
2W11328262 Whirlpool Manifold
2AW11320019 Whirlpool Manifold
3W11328263 Whirlpool Wire Harness
3AW11320016 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6W11328011 Whirlpool Drip Tray
7W11328012 Whirlpool Drip Tray
8ATUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8TUBE, MANIFOLD SUPPLY (LEFT)
8BTUBE, MANIFOLD SUPPLY (RIGHT)
9WP3196557 Whirlpool Screw
10DEFLECTOR, GRILL HEAT
11W10115843 Whirlpool Access Cover
13BRACKET, GRILL ORIFICE HOLDER
14SCREW
15BRACKET, GRILL GREASE CAPTURE
