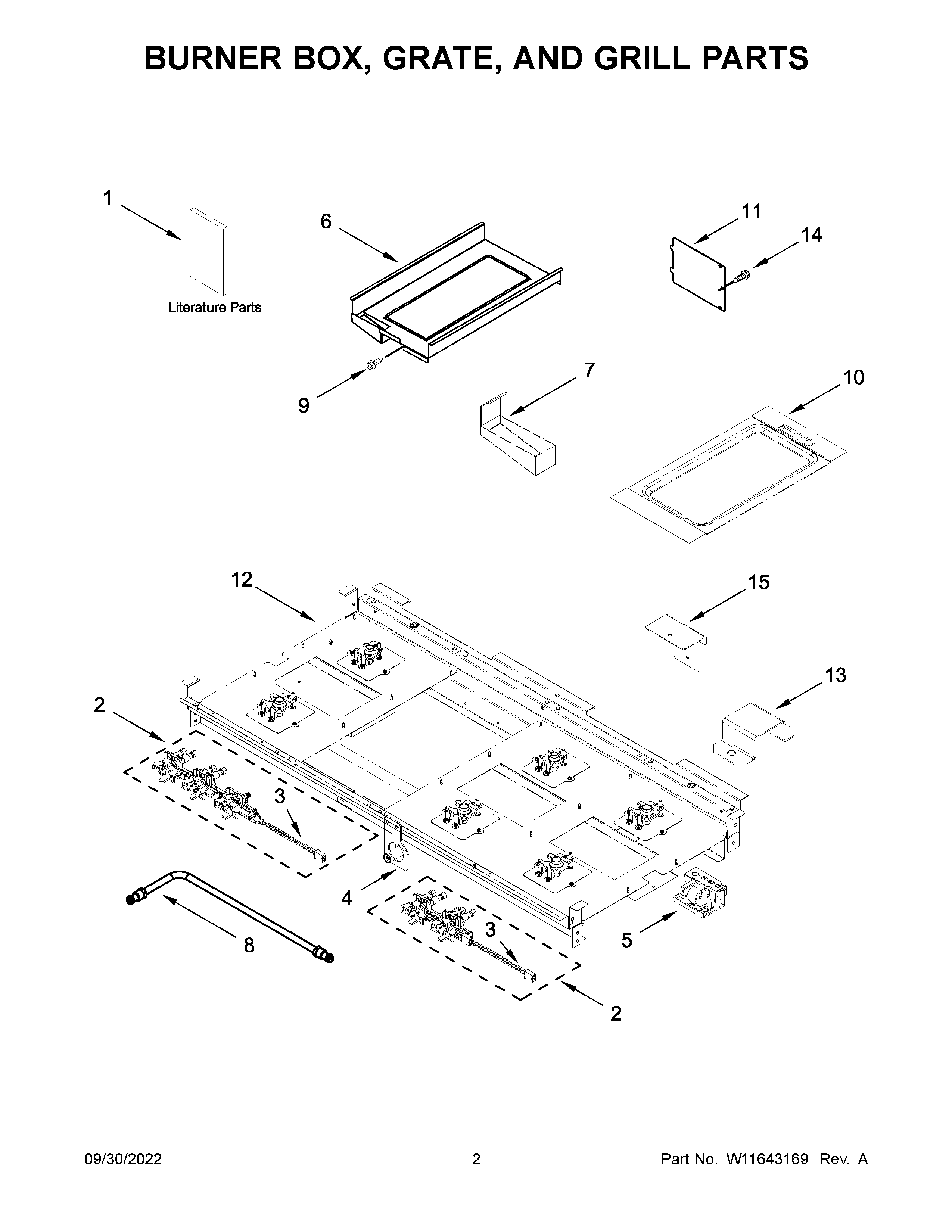

JGRP648HM05 02 – BURNER BOX, GRATE, AND GRILL PARTS

JGRP648HM05 02 – BURNER BOX, GRATE, AND GRILL PARTS

Written by

in

JGRP648HM05 02 – BURNER BOX, GRATE, AND GRILL PARTS

Products

PositionProduct
NIHARNESS, MAIN
NIHARNESS, COOKTOP
NIW11317786 Whirlpool Wire Harness
NIW11317791 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW10624584 Whirlpool Power Cord
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NIW11446239 Whirlpool Wire Harness
NIW11428599 Whirlpool Conversion Kit
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
NI16515 Whirlpool Clip
NIW11446236 Whirlpool Wire Harness
1BGUIDE, INTERNET CONNECTIVITY
1FSHEET, TECH
1CGUIDE, QUICK START
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1DWIRING DIAGRAM (OVEN)
1EWIRING DIAGRAM (COOKTOP)
2AW11320019 Whirlpool Manifold
2W11328262 Whirlpool Manifold
2BW11320017 Whirlpool Manifold
3W11328263 Whirlpool Wire Harness
3AW11320016 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6W11328011 Whirlpool Drip Tray
7W11328012 Whirlpool Drip Tray
8BTUBE, MANIFOLD SUPPLY (RIGHT)
8ATUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8TUBE, MANIFOLD SUPPLY (LEFT)
9WP3196557 Whirlpool Screw
10DEFLECTOR, GRILL HEAT
11W10115843 Whirlpool Access Cover
13BRACKET, GRILL ORIFICE HOLDER
14SCREW
15BRACKET, GRILL GREASE CAPTURE
