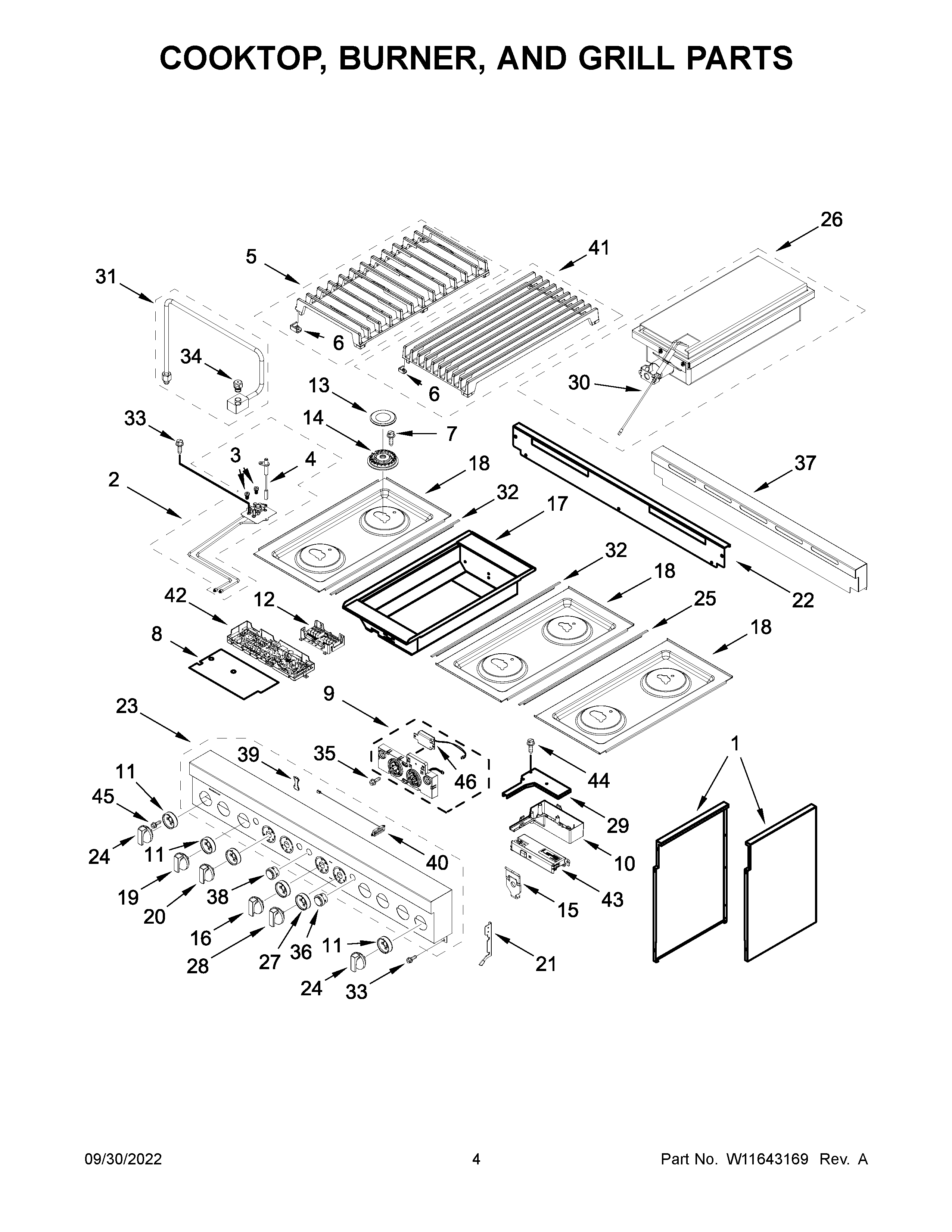

JGRP648HM05 03 – COOKTOP, BURNER, AND GRILL PARTS

JGRP648HM05 03 – COOKTOP, BURNER, AND GRILL PARTS

Written by

in

JGRP648HM05 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

Position	Product
1	W11321067 Whirlpool Complete Side Assembly
1A	W11320596 Whirlpool Side Assembly
2C	ASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR)
2	W11319741 Whirlpool Orifice Holder
2A	W11319746 Whirlpool Orifice Holder
2B	ASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT)
2E	ASSEMBLY, ORIFICE HOLDER (RIGHT REAR)
2D	ASSEMBLY, ORIFICE HOLDER (RIGHT FRONT)
3D	W10892429 Whirlpool Orifice Spud
3C	W11661909 Whirlpool Range Orifice Spud
3B	W10892440 Whirlpool Spud Orifice
3A	W10892418 Whirlpool Range Orifice Spud
3	W11643164 Whirlpool Orifice Spud
4A	W11238756 Whirlpool Surface Igniter
4	W11573760 Whirlpool Surface Igniter
5B	W11516462 Whirlpool Burner Grate
5A	W11516481 Whirlpool Grate Burner
5	W11516449 Whirlpool Grate Burner
6	W11550692 Whirlpool Bumper
7	SCREW
8	W11320149 Whirlpool Insulator
9	W11492275 Whirlpool Electronic Control Board + Core
10	COVER, WIFI OUTER
11	W11317889 Whirlpool Knob Bezel
12	W11355250-includeCORE Whirlpool W11355250 Refrigerator Electronic Control Board + Core
13	W11319224 Whirlpool Burner Cap
14A	W11319673 Whirlpool Burner Head
14	W11319683 Whirlpool Burner Head
15	W11318207 Whirlpool Clip Assembly
16	W11397970 Whirlpool Knob Assembly
17	ASSEMBLY, GRILL BOX
18A	W11316701 Whirlpool Cooktop
18	W11316700 Whirlpool Cooktop
18B	W11328008 Whirlpool Cooktop
19	W11328010 Whirlpool Range Knob
20	W11406544 Whirlpool Knob
21	W10130760 Whirlpool Bracket Mounting
21A	W10130759 Whirlpool Mounting Bracket
22	W10323252 Whirlpool Trim Top
23	WPL W10878258
24	W11317537 Whirlpool Knob
25	W10271524 Whirlpool Trim Top
26	W11328568 Whirlpool Burner Grille
27	W11317892 Whirlpool Bezel Knob
28	W11406542 Whirlpool Knob
28A	W11317539 Whirlpool Knob
29	WPL W11205794
30	WPL W11174598
31	WPL W11419278
32	W10291193 Whirlpool Trim Top
33	SCREW
34	WPL W11419282
35	WP3400814 Whirlpool Screw
36	W11319196 Whirlpool Push Button
37	W11516014 Whirlpool Trim Top
38	W11318857 Whirlpool Push Button
39	WPL W10896369
40	W11318855 Whirlpool Antenna
41	W11328377 Whirlpool Grate Grille
42	W11620696-includeCORE Whirlpool W11620696 Refrigerator Electronic Control Board with Core
43	W11234290 Whirlpool Electronic Control Board
44	WPL 7101P62460
45	W11509770 Whirlpool Screw
46	W11123146 Whirlpool Speaker
