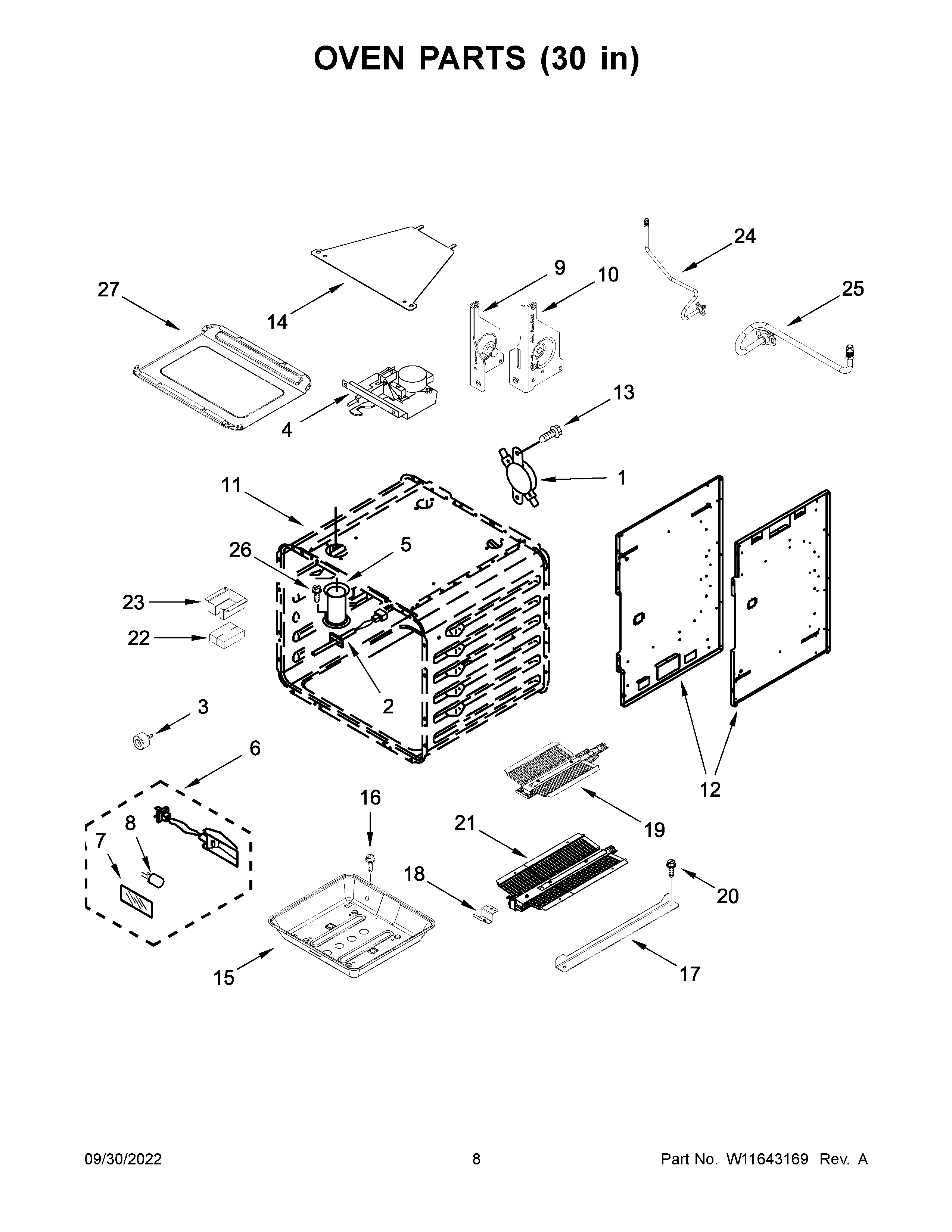

JGRP648HM05 05 – OVEN PARTS (30 IN)

Products

Position	Product
NI	INSULATION, BOTTOM
NI	WP3400968 Whirlpool Nut
NI	INSULATION, WRAP (30 IN)
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, BACK, (30 IN)
1	WP4450249 Whirlpool Thermostat
2	W10859573 Whirlpool Range Oven Temperature Sensor
3	WPW10351278 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
6	W11233684 Whirlpool Oven Light Assembly
7	W10169756 Whirlpool Light Lens
8	BULB-LIGHT
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12A	CHASSIS, SIDE (RIGHT)
12	W11320145 Whirlpool Cabinet Panel
13	SCREW
14	W10160858 Whirlpool Lid Cover
15	WPW10145744 Whirlpool Support
16	WP12992902 Whirlpool Refrigerator Screw
17	W10317437 Whirlpool Support Assembly
18	W10308040 Whirlpool Pan Bracket
19	W11643161 Whirlpool Oven Burner
20	SCREW
21	W11661180 Whirlpool Burner Broiler
22	INSULATION, BROIL COVER
23	W10310985 Whirlpool Access Cover
24	W11355244 Whirlpool Gas Tubing
25	W11355919 Whirlpool Range Gas Tubing
26	SCREW
27	W11661576 Whirlpool Oven Bottom Pan
