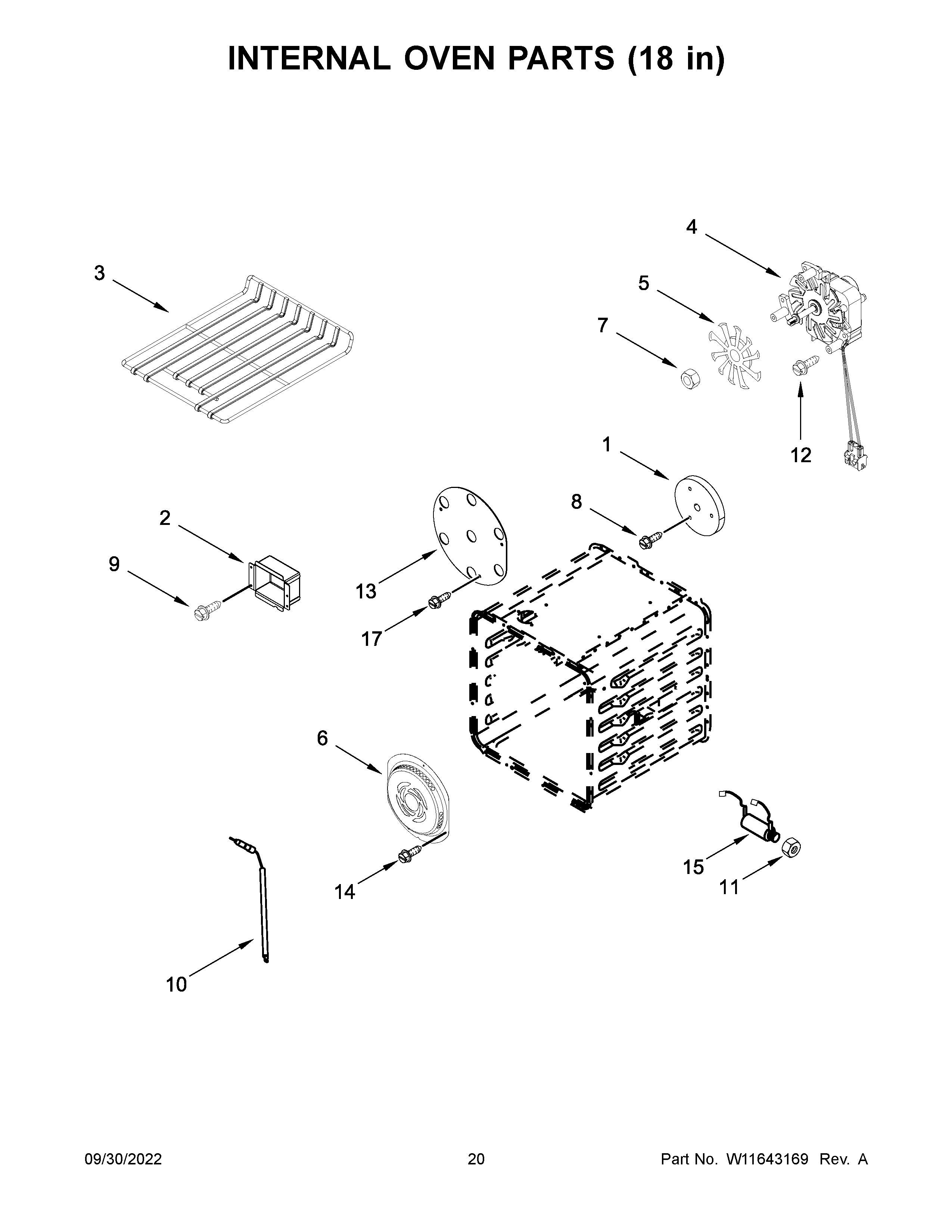

JGRP648HM05 11 – INTERNAL OVEN PARTS (18 IN)

JGRP648HM05 11 – INTERNAL OVEN PARTS (18 IN)

Written by

in

JGRP648HM05 11 – INTERNAL OVEN PARTS (18 IN)

Products

Position	Product
1	W11688507 Whirlpool Insulation
2	W10308051 Whirlpool Burner Box
3	W11111351 Whirlpool Oven Rack
4	W10794440 Whirlpool Fan Motor
5	W11320150 Whirlpool Convection Fan
6	COVER, FAN
7	W10794042 Whirlpool Nut
8	WP4449154 Whirlpool Screw
9	SCREW
10	W11355922 Whirlpool Surface Igniter
11	W11231343 Whirlpool Lock Nut
12	W10850807 Whirlpool Screw
13	W10261523 Whirlpool Plate
14	SCREW
15	8186589 Whirlpool Jack Probe
