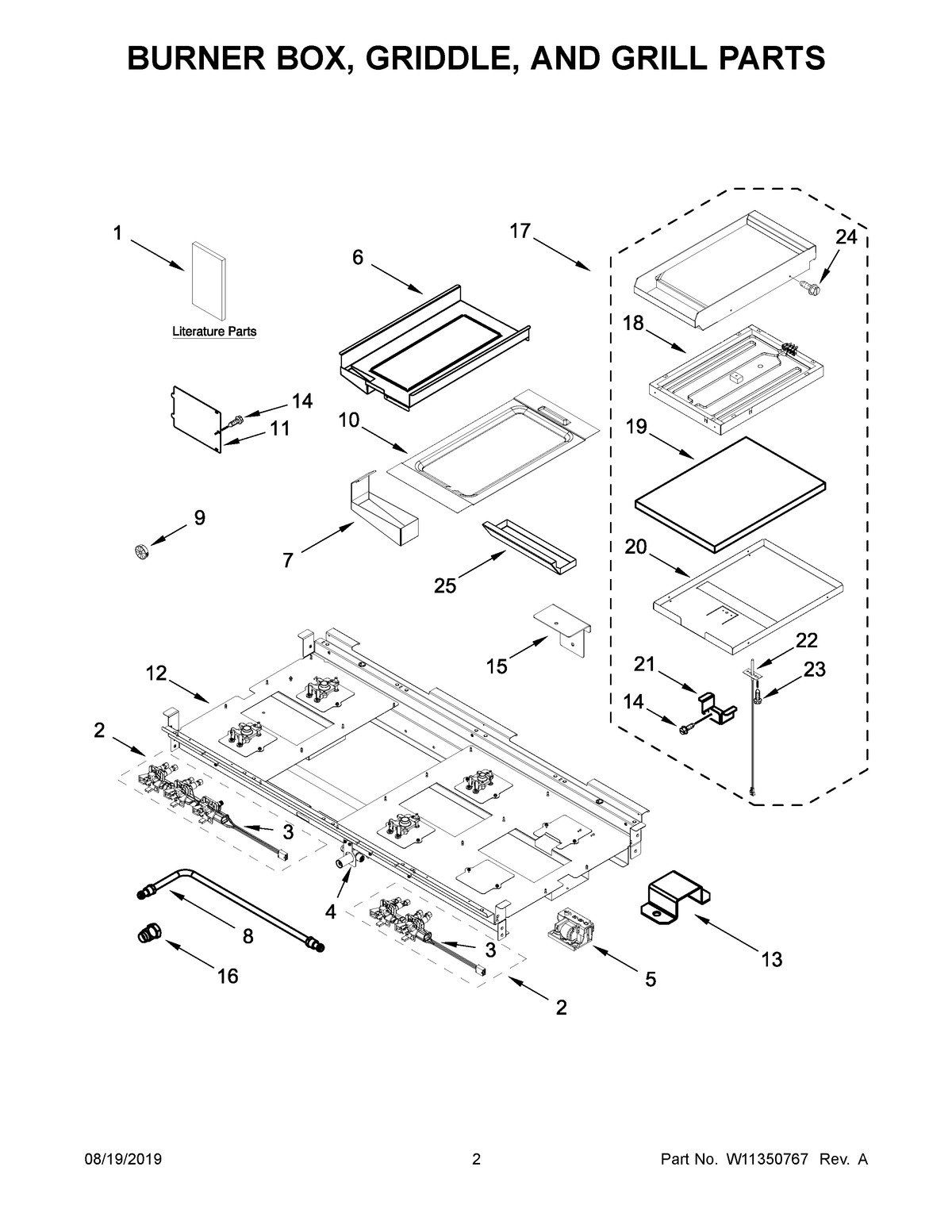

JGRP748HL00 02 – BURNER BOX, GRIDDLE, AND GRILL PARTS

JGRP748HL00 02 – BURNER BOX, GRIDDLE, AND GRILL PARTS

Written by

in

JGRP748HL00 02 – BURNER BOX, GRIDDLE, AND GRILL PARTS

Products

PositionProduct
NISCREW, ANTI-TIP KIT
NIMAY W11200333
NIKIT, LP CONVERSION
NICORD, POWER
NIHARNESS, DOOR LOCK
NIHARNESS, WIFI
NIMAY W11311196
NILINER (NOT A SERVICEABLE PART)
NIMAY W11311197
NIBRACKET, ANTI-TIP
NIHARNESS, GRIDDLE
NIMAY W11200305
NIMAY 4450800
NIHARNESS, COMMUNICATION
1DMAY W11202375
1AMAY W11177278
1BMAY W11177312
1CGUIDE, INTERNET CONNECTIVITY
1EMAY W11202275
1MAY W11177275
2AASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
2MAY W10893054
3ASWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
3SWITCH, HARNESS (GRILL, RIGHT FRONT, RIGHT REAR)
4BRACKET, MANIFOLD
5MODULE, SPARK
6MAY W11120957
7MAY W11174414
8MAY W10892796
8ATUBE, MANIFOLD SUPPLY (RIGHT CENTER)
9MAY W10189097
10MAY W11120965
11MAY W10115843
13MAY W11174418
14MAY 7101P426- 60
15MAY W11285353
16MAY W10892063
17ASSEMBLY, GRIDDLE MODULE
18ELEMENT, GRIDDLE
19INSULATION, GRIDDLE
20MAY W11330430
21BRACKET, GRIDDLE-RTD
22SENSOR, GRIDDLE
23MAY 3196160
24Screw
25DRIP, TRAY GRIDDLE
