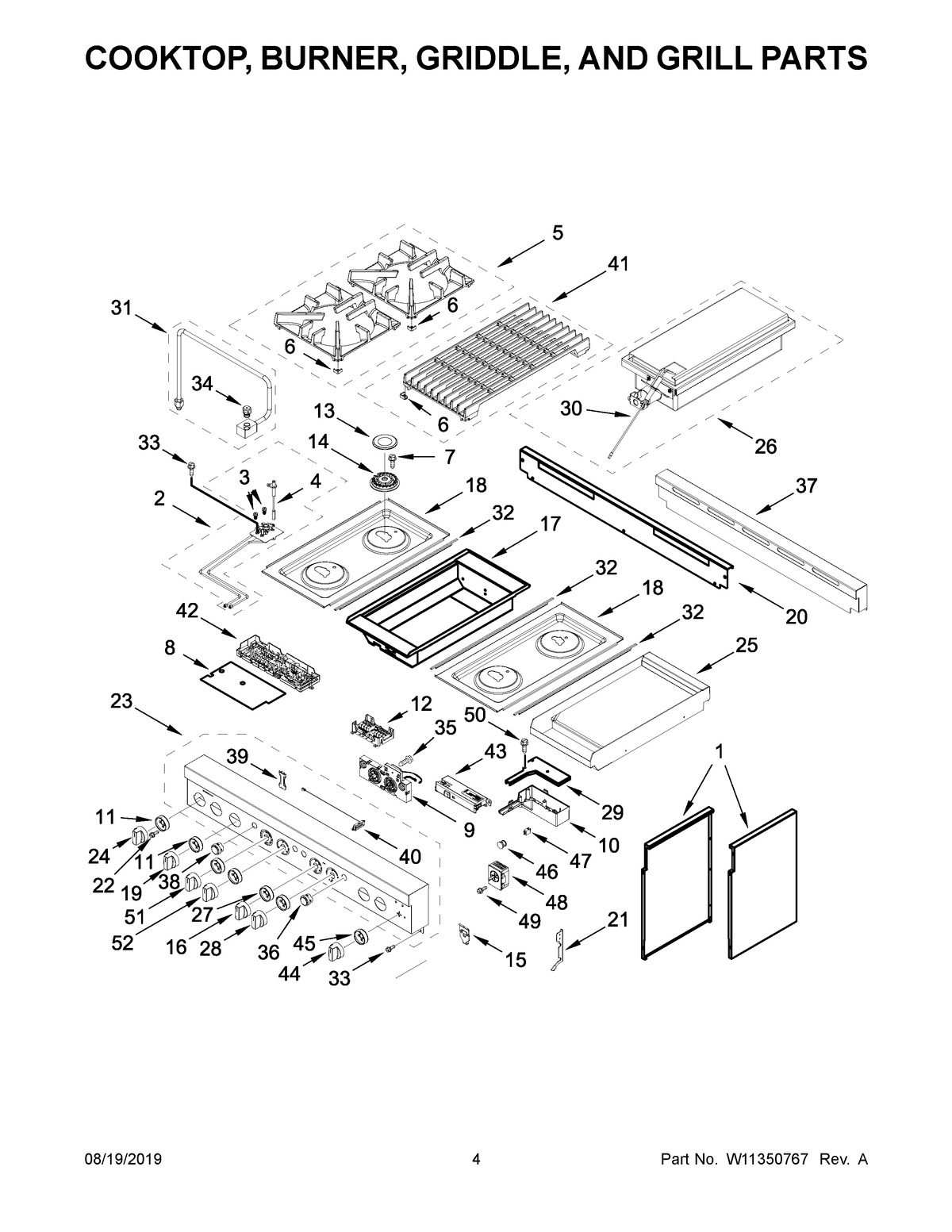

JGRP748HL00 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

Products

PositionProduct
1PANEL, CABINET SIDE (LEFT)
1APANEL, CABINET SIDE (RIGHT)
2BASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT)
2CMAY W10892721
2AASSEMBLY, ORIFICE HOLDER (LEFT REAR)
2ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
3CORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3BORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3DORIFICE, SIMMER (2.0K) (RIGHT REAR)
3AORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
4AIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5ASSEMBLY, GRATE (BLACK (SET OF 2))
6BUMPER, GRATE
7MAY W11323260
8BARRIER, APPLIANCE MANAGER
9MAY W11219188
10COVER, WIFI OUTER
11BEZEL, COOKTOP
12MAY W10871065
13CAP, BURNER (BLACK (SET OF 4))
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14ASPREADER, FLAME (LOW) (RIGHT REAR)
15SPRING CLIP, RANGE
16MAY W11092267
17MAY W11174429
18PANEL, COOKTOP (BLACK (LEFT))
18APANEL, COOKTOP (BLACK (RIGHT CENTER))
19MAY W10894925
20MAY W10323252
21BRACKET,CONSOLE (LEFT)
21ABRACKET,CONSOLE (RIGHT)
22MAY W10919387
23MAY W11253770
24KNOB, BURNER (STAINLESS)
25LINER (NOT A SERVICEABLE PART)
26MAY W11120976
27BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28KNOB, OVEN TEMPERATURE (STAINLESS)
29COVER, WIFI INNER
30MAY W11174598
31MAY W11197929
32L-STRIP
33MAY 7101P426- 60
34MAY W10892423
35SCREW
36BUTTON ASSEMBLY, OVEN START
37MAY W11183087
38BUTTON ASSEMBLY, OVEN LIGHT
39ASSEMBLY, LIGHT PIPE
40ANTENNA, WIFI
41MAY W11179894
42MAY W11100277
43ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
44KNOB, GRIDDLE (STAINLESS)
45BEZEL, GRIDDLE
46MAY W10294500
47LIGHT, INDICATOR HOUSING
48CONTROL, GRIDDLE
49SCREW
50SCREW
51MAY W11263512
52MAY W11263513
