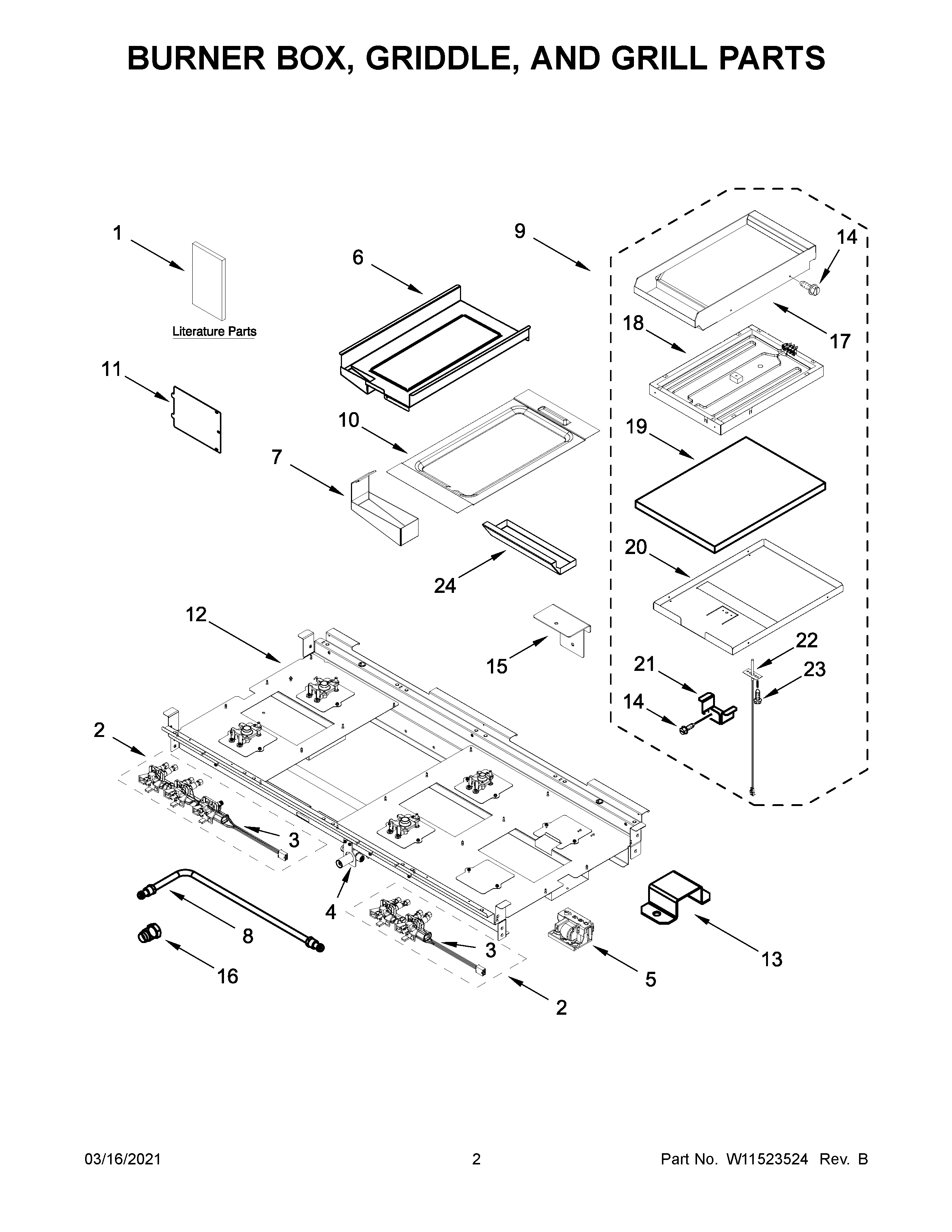

JGRP748HL01 02 – BURNER BOX, GRIDDLE, AND GRILL PARTS

Products

Position	Product
NI	W11446239 Whirlpool Wire Harness
NI	W10624584 Whirlpool Power Cord
NI	W10780278 Whirlpool Wire Harness
NI	W11317787 Whirlpool Wire Harness
NI	HARNESS, COOKTO
NI	W11317791 Whirlpool Wire Harness
NI	W11317786 Whirlpool Wire Harness
NI	SCREW, ANTI-TIP KIT
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	W11428599 Whirlpool Conversion Kit
NI	W11446236 Whirlpool Wire Harness
NI	W11200305 Whirlpool Wire Harness
1	GUIDE, USE AND CARE
1A	INSTRUCTIONS, INSTALLATION
1E	SHEET, TECH
1D	DIAGRAM, WIRING
1B	GUIDE, QUICK START
1C	GUIDE, INTERNET CONNECTIVITY
2A	W11320019 Whirlpool Manifold
2	W11328262 Whirlpool Manifold
3A	W11320016 Whirlpool Wire Harness
3	W11328263 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	W11328011 Whirlpool Drip Tray
7	W11328012 Whirlpool Drip Tray
8A	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8	TUBE, MANIFOLD SUPPLY (LEFT)
9	W11602621 Whirlpool Module
10	DEFLECTOR, GRILL HEAT
11	W10115843 Whirlpool Access Cover
13	BRACKET, GRILL ORIFICE HOLDER
14	W10162096 Whirlpool Screw
15	BRACKET, GRILL GREASE CAPTURE
16	PLUG, SUPPLY OUTLET
17	W11602622 Whirlpool Griddle Assembly
18	W11319602 Whirlpool Grille Element
19	INSULATION, GRIDDLE
20	TRAY, GRIDDLE INSULATION
21	BRACKET, GRIDDLE-RTD
22	W11319618 Whirlpool Sensor
23	W10491985 Whirlpool Screw
24	W10276497 Whirlpool Drip Tray
