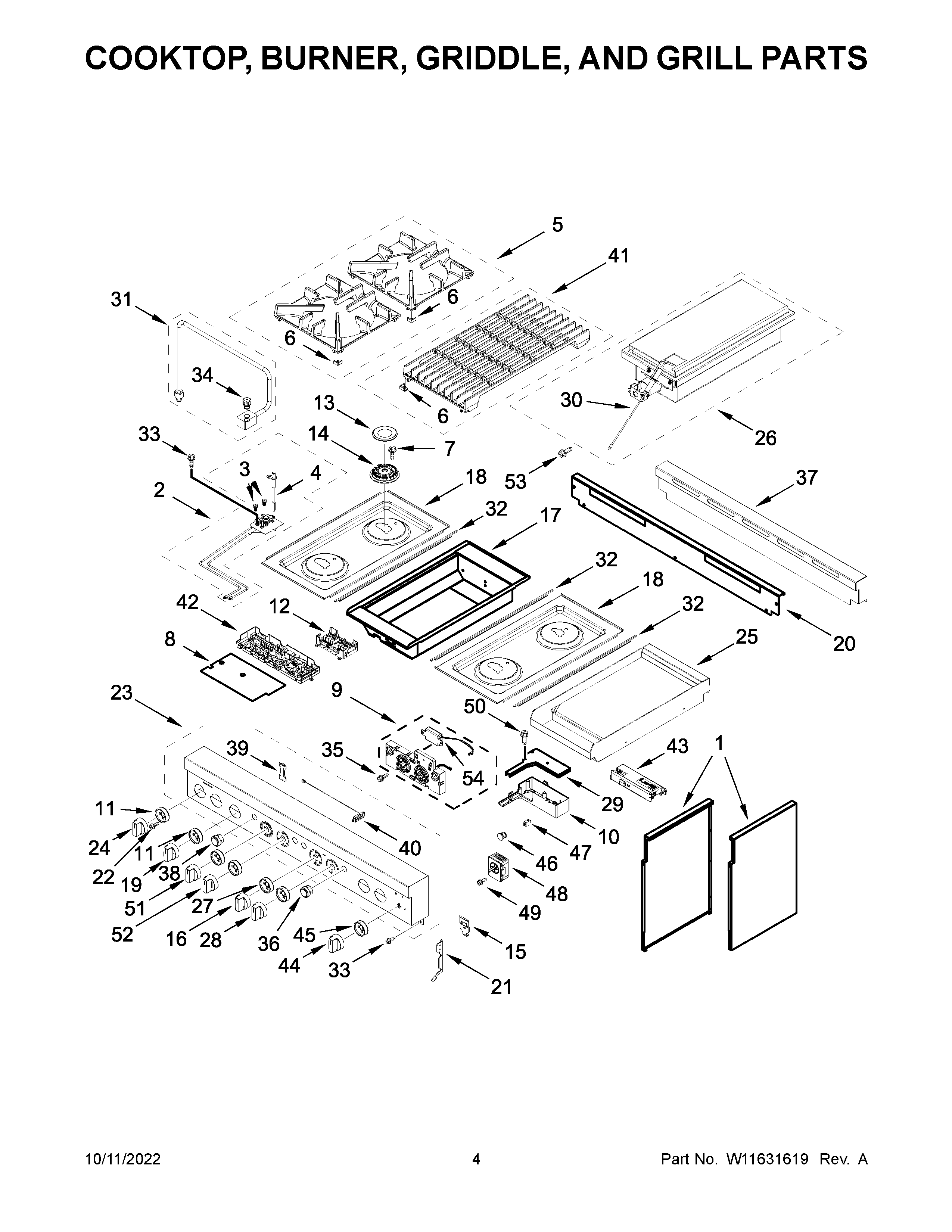

JGRP748HL05 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

Products

PositionProduct
1AW11320596 Whirlpool Side Assembly
1W11321067 Whirlpool Complete Side Assembly
2W11319741 Whirlpool Orifice Holder
2CASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR)
2AW11319746 Whirlpool Orifice Holder
2BW11319743 Whirlpool Dishwasher Orifice Holder
3DW10892429 Whirlpool Orifice Spud
3CW11661909 Whirlpool Range Orifice Spud
3BW10892440 Whirlpool Spud Orifice
3AW10892418 Whirlpool Range Orifice Spud
3W11643164 Whirlpool Orifice Spud
4W11573760 Whirlpool Surface Igniter
4AW11238756 Whirlpool Surface Igniter
5W11515370 Whirlpool Burner Grate
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492275 Whirlpool Electronic Control Board + Core
10COVER, WIFI OUTER
11BEZEL-KNOB
12W11355250-includeCORE Whirlpool W11355250 Refrigerator Electronic Control Board + Core
13W11328971 Whirlpool Burner Cap
14W11319683 Whirlpool Burner Head
14AW11319673 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16W11574370 Whirlpool Knob
17ASSEMBLY, GRILL BOX
18AW11316697 Whirlpool Range Cooktop
18W11316696 Whirlpool Cooktop
19W11620700 Whirlpool Knob
20W10323252 Whirlpool Trim Top
21W10130760 Whirlpool Bracket Mounting
21AW10130759 Whirlpool Mounting Bracket
22W11509770 Whirlpool Screw
23W11444450 Whirlpool Control Panel
24W11574368 Whirlpool Knob
25CABINET (NOT A SERVICEABLE PART)
26W11328568 Whirlpool Burner Grille
27W11317499 Whirlpool Knob Bezel
28W11574369 Whirlpool Range Knob
29WPL W11205794
30WPL W11174598
31WPL W11419278
32W10291193 Whirlpool Trim Top
33SCREW
34WPL W11419282
35WP3400814 Whirlpool Screw
36W11319196 Whirlpool Push Button
37W11516014 Whirlpool Trim Top
38W11318857 Whirlpool Push Button
39WPL W10896369
40W11318855 Whirlpool Antenna
41W11515378 Whirlpool Grille Grate
42W11620696-includeCORE Whirlpool W11620696 Refrigerator Electronic Control Board with Core
43W11234290 Whirlpool Electronic Control Board
44KNOB, GRIDDLE (STAINLESS)
45W11317495 Whirlpool Knob Bezel
46W10294500 Whirlpool Light Lens
47W10116114 Whirlpool Indicator Light
48W11318834 Whirlpool Infinite Heat Switch
49WPL 7101P30960
50WPL 7101P62460
51W11591511 Whirlpool Knob
52W11620695 Whirlpool Knob
53WP3196557 Whirlpool Screw
54W11123146 Whirlpool Speaker
