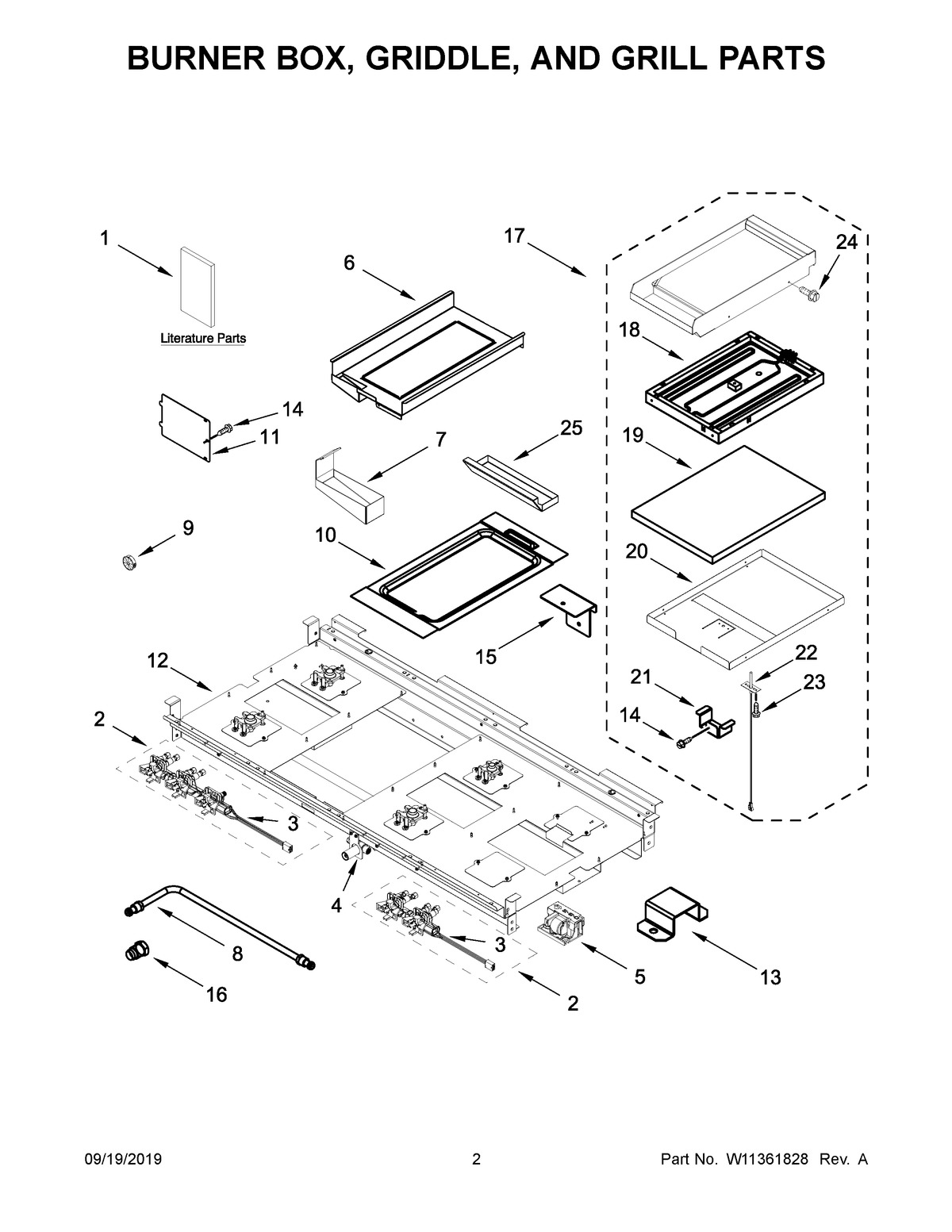

JGRP748HM00 02 – BURNER BOX, GRIDDLE, AND GRILL PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	MAY W11200333
NI	KIT, LP CONVERSION
NI	CORD, POWER
NI	HARNESS, DOOR LOCK
NI	HARNESS, WIFI
NI	MAY W11311196
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W11311197
NI	MAY 4450800
NI	MAY 9759877
NI	HARNESS, GRIDDLE
NI	BRACKET, ANTI-TIP
NI	MAY W11200305
NI	HARNESS, COMMUNICATION
1E	MAY W11202275
1D	MAY W11202375
1	MAY W11177275
1A	MAY W11177278
1B	GUIDE, INTERNET CONNECTIVITY
1C	MAY W11177312
2A	ASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
2	MAY W10893054
3A	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
3	SWITCH, HARNESS (GRILL, RIGHT FRONT, RIGHT REAR)
4	BRACKET, MANIFOLD
5	MODULE, SPARK
6	MAY W11120957
7	MAY W11174414
8	MAY W10892796
8A	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
9	MAY W10189097
10	MAY W11120965
11	MAY W10115843
13	MAY W11174418
14	MAY 7101P426- 60
15	MAY W11285353
16	MAY W10892063
17	ASSEMBLY, GRIDDLE MODULE
18	ELEMENT, GRIDDLE
19	INSULATION, GRIDDLE
20	MAY W11330430
21	BRACKET, GRIDDLE-RTD
22	SENSOR, GRIDDLE
23	MAY 3196160
24	Screw
25	DRIP, TRAY GRIDDLE
