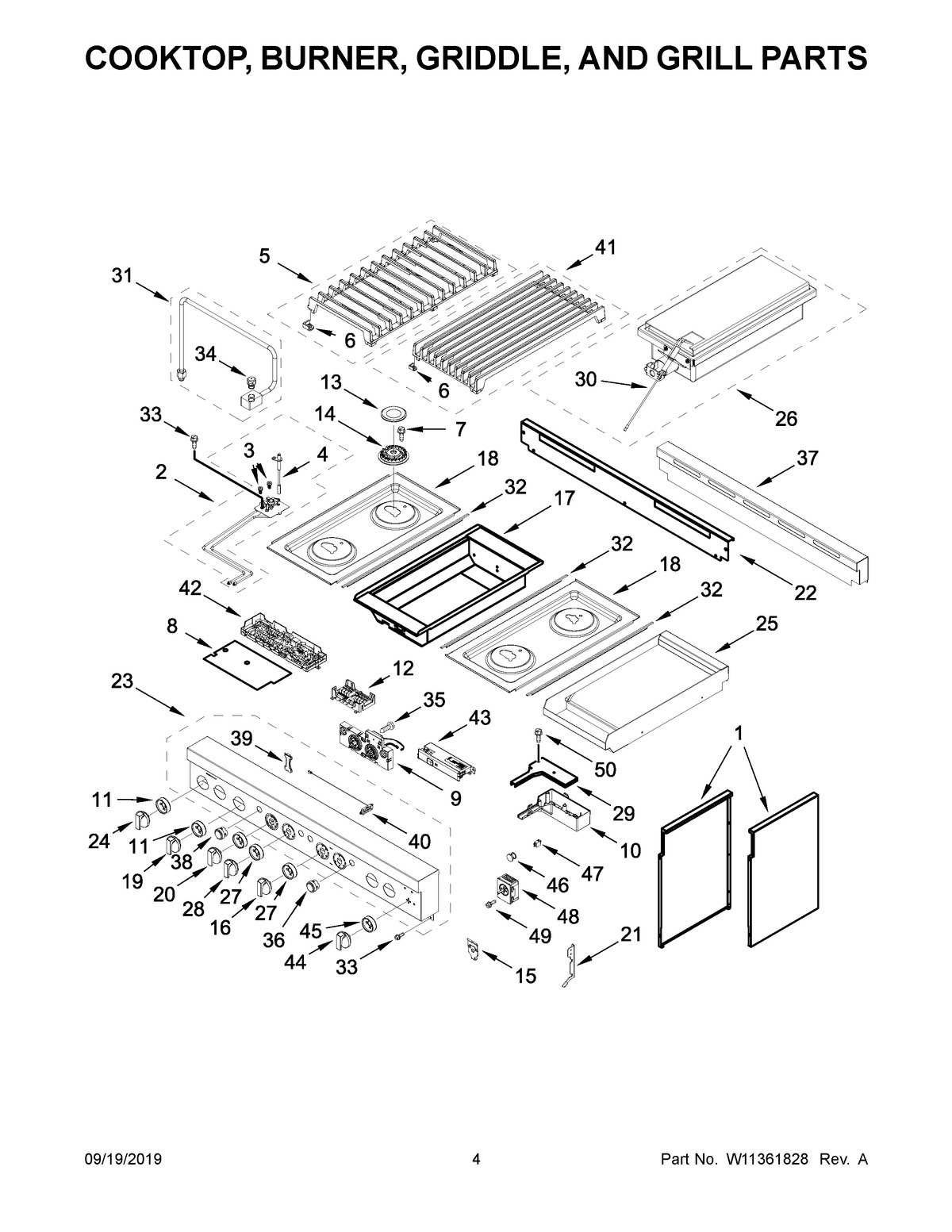

JGRP748HM00 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

JGRP748HM00 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

Written by

in

JGRP748HM00 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

Products

PositionProduct
1APANEL, CABINET SIDE (RIGHT)
1PANEL, CABINET SIDE (LEFT)
2BASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT)
2ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
2AASSEMBLY, ORIFICE HOLDER (LEFT REAR)
2CMAY W10892721
3CORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3DORIFICE, SIMMER (2.0K) (RIGHT REAR)
3BORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3AORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
4AIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5AASSEMBLY, GRATE (BLACK) (RIGHT)
5ASSEMBLY, GRATE (BLACK) (LEFT)
6BUMPER, GRATE
7MAY W11323260
8BARRIER, APPLIANCE MANAGER
9MAY W11219188
10COVER, WIFI OUTER
11BEZEL, COOKTOP
12MAY W10871065
13CAP, BURNER (BLACK (SET OF 4))
14ASPREADER, FLAME (LOW) (RIGHT REAR)
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15SPRING CLIP, RANGE
16MAY W11317854
17MAY W11174429
18PANEL, COOKTOP (BLACK) (LEFT)
18APANEL, COOKTOP (BLACK) (LEFT CENTER)
19MAY W10894926
20MAY W11325046
21ABRACKET,CONSOLE (RIGHT)
21BRACKET,CONSOLE (LEFT)
22MAY W10323252
23MAY W11253770
24KNOB, BURNER (STAINLESS)
25LINER (NOT A SERVICEABLE PART)
26MAY W11120976
27BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28MAY W11325047
28AKNOB, OVEN TEMPERATURE (STAINLESS)
29COVER, WIFI INNER
30MAY W11174598
31MAY W11197929
32L-STRIP
33MAY 7101P426- 60
34MAY W10892423
35SCREW
36BUTTON ASSEMBLY, OVEN START
37MAY W11183087
38BUTTON ASSEMBLY, OVEN LIGHT
39ASSEMBLY, LIGHT PIPE
40ANTENNA, WIFI
41MAY W11172682
42MAY W11100277
43ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
44KNOB, GRIDDLE (STAINLESS)
45BEZEL, GRIDDLE
46MAY W10294500
47LIGHT, INDICATOR HOUSING
48CONTROL, GRIDDLE
49SCREW
50SCREW
