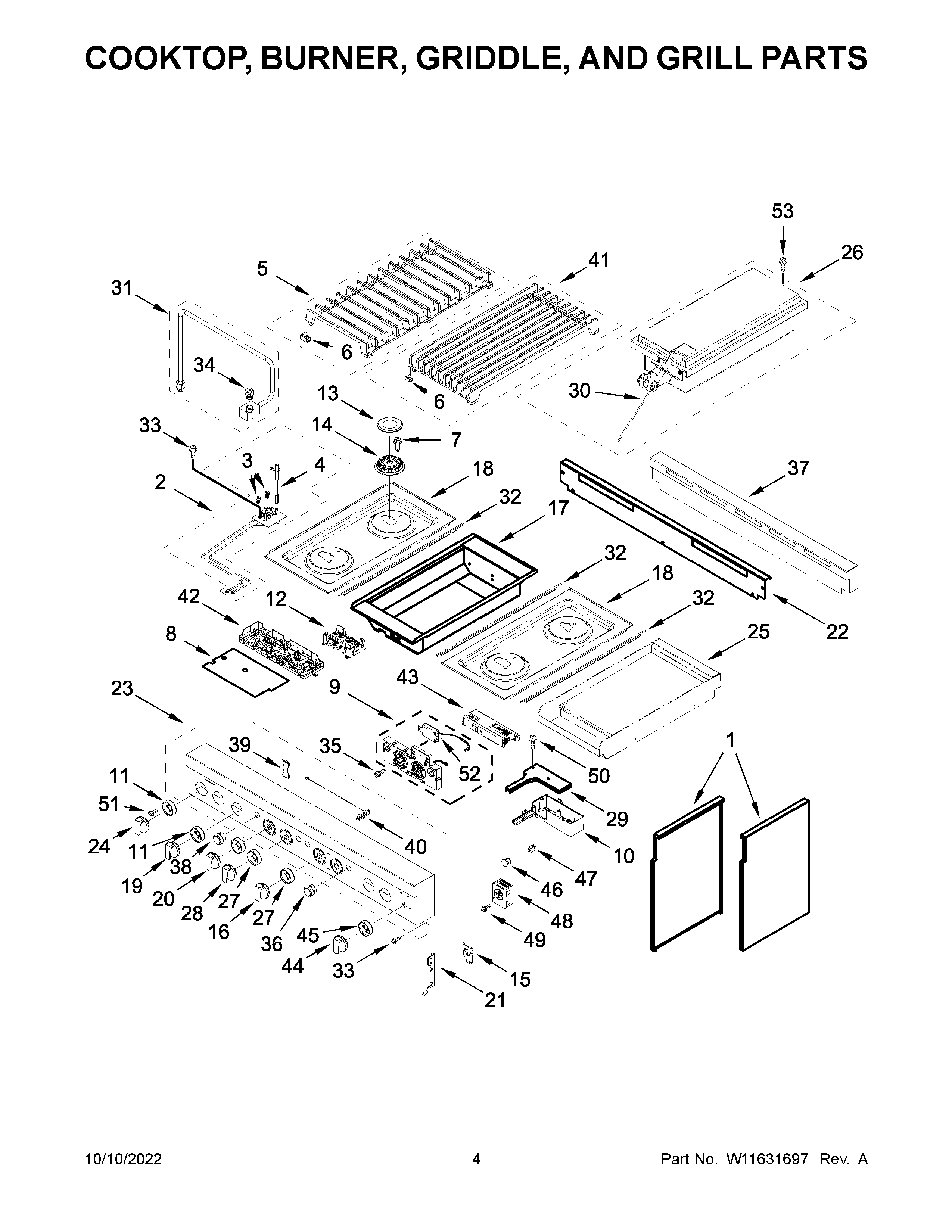

JGRP748HM05 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

JGRP748HM05 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

Written by

in

JGRP748HM05 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

Products

PositionProduct
1W11321067 Whirlpool Complete Side Assembly
1AW11320596 Whirlpool Side Assembly
2BW11319743 Whirlpool Dishwasher Orifice Holder
2AW11319746 Whirlpool Orifice Holder
2W11319741 Whirlpool Orifice Holder
2CASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR)
3AW10892418 Whirlpool Range Orifice Spud
3DW10892429 Whirlpool Orifice Spud
3W11643164 Whirlpool Orifice Spud
3CW11661909 Whirlpool Range Orifice Spud
3BW10892440 Whirlpool Spud Orifice
4W11573760 Whirlpool Surface Igniter
4AW11238756 Whirlpool Surface Igniter
5AW11516462 Whirlpool Burner Grate
5W11516449 Whirlpool Grate Burner
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492275 Whirlpool Electronic Control Board + Core
10COVER, WIFI OUTER
11W11317889 Whirlpool Knob Bezel
12W11355250-includeCORE Whirlpool W11355250 Refrigerator Electronic Control Board + Core
13W11328971 Whirlpool Burner Cap
14AW11319673 Whirlpool Burner Head
14W11319683 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16W11397970 Whirlpool Knob Assembly
17ASSEMBLY, GRILL BOX
18AW11316701 Whirlpool Cooktop
18W11316700 Whirlpool Cooktop
19W11328010 Whirlpool Range Knob
20W11406544 Whirlpool Knob
21AW10130759 Whirlpool Mounting Bracket
21W10130760 Whirlpool Bracket Mounting
22W10323252 Whirlpool Trim Top
23W11444450 Whirlpool Control Panel
24W11317537 Whirlpool Knob
25CABINET (NOT A SERVICEABLE PART)
26W11328568 Whirlpool Burner Grille
27W11317892 Whirlpool Bezel Knob
28AW11317539 Whirlpool Knob
28W11406542 Whirlpool Knob
29WPL W11205794
30WPL W11174598
31WPL W11419278
32W10291193 Whirlpool Trim Top
33SCREW
34WPL W11419282
35WP3400814 Whirlpool Screw
36W11319196 Whirlpool Push Button
37W11516014 Whirlpool Trim Top
38W11318857 Whirlpool Push Button
39WPL W10896369
40W11318855 Whirlpool Antenna
41W11328377 Whirlpool Grate Grille
42W11620696-includeCORE Whirlpool W11620696 Refrigerator Electronic Control Board with Core
43W11234290 Whirlpool Electronic Control Board
44W11317536 Whirlpool Knob Assembly
45W11317890 Whirlpool Knob Bezel
46W10294500 Whirlpool Light Lens
47W10116114 Whirlpool Indicator Light
48W11318834 Whirlpool Infinite Heat Switch
49W10674068 Whirlpool Screw
50WPL 7101P62460
51W11509770 Whirlpool Screw
52W11123146 Whirlpool Speaker
53WP3196557 Whirlpool Screw
