JGRP748HM05 05 – 30-IN OVEN PARTS

JGRP748HM05 05 – 30-IN OVEN PARTS

Written by

in

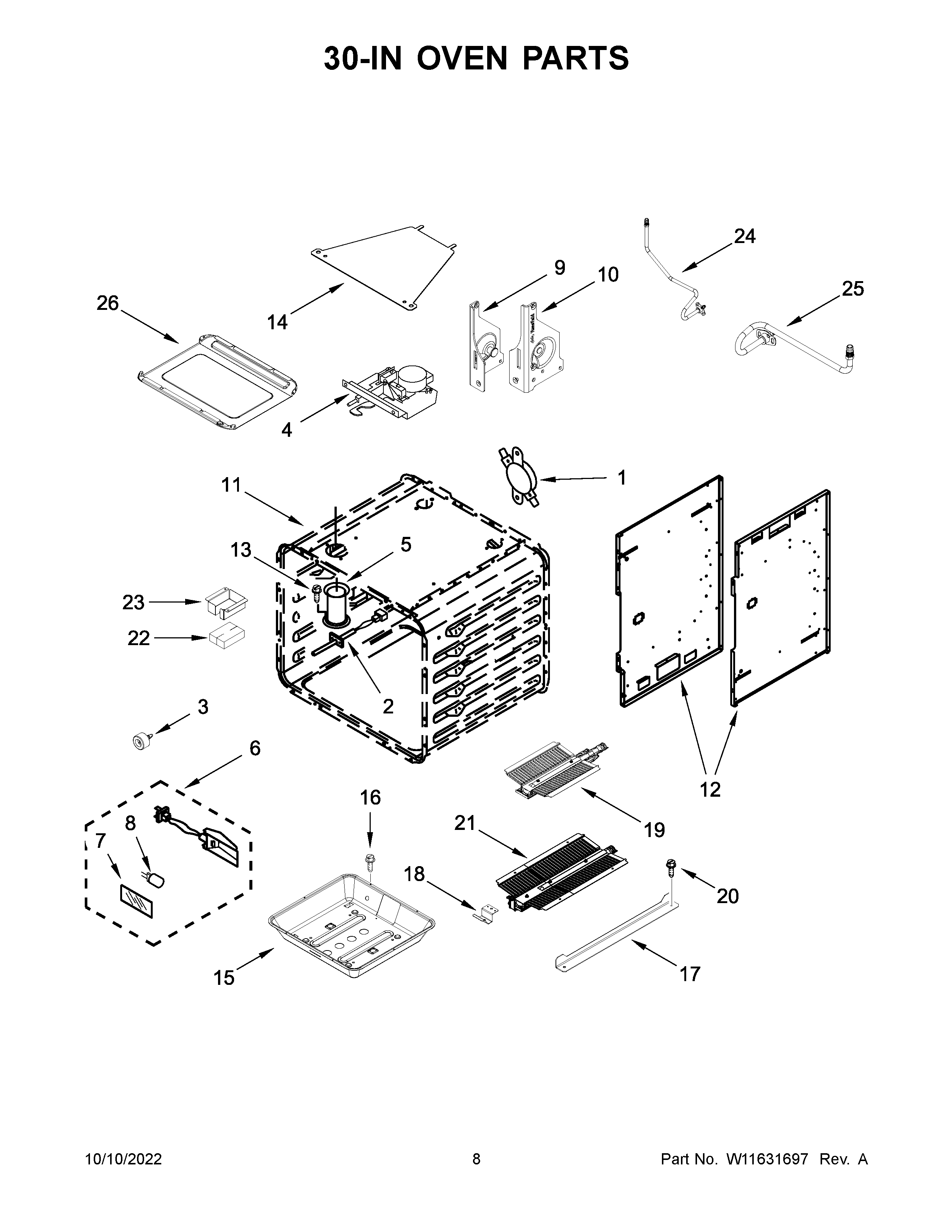

JGRP748HM05 05 – 30-IN OVEN PARTS

Products

PositionProduct
NIINSULATION, BOTTOM
NIINSULATION, WRAP (30 IN)
NIINSULATION, BACK, (30 IN)
NIWP3400968 Whirlpool Nut
NICABINET (NOT A SERVICEABLE PART)
1WP4450249 Whirlpool Thermostat
2W10859573 Whirlpool Range Oven Temperature Sensor
3WPW10351278 Whirlpool Bumper
4W11029221 Whirlpool Door Latch
5TUBE, VENT
6W11233684 Whirlpool Oven Light Assembly
7W10169756 Whirlpool Light Lens
8BULB-LIGHT
9RECEIVER, HINGE (LEFT)
10RECEIVER, HINGE (RIGHT)
12ACHASSIS, SIDE (RIGHT)
12W11320145 Whirlpool Cabinet Panel
13SCREW
14W10160858 Whirlpool Lid Cover
15WPW10145744 Whirlpool Support
16WP12992902 Whirlpool Refrigerator Screw
17W10317437 Whirlpool Support Assembly
18W10308040 Whirlpool Pan Bracket
19W11643161 Whirlpool Oven Burner
20SCREW
21W11661180 Whirlpool Burner Broiler
22INSULATION, BROIL COVER
23W10310985 Whirlpool Access Cover
24W11355244 Whirlpool Gas Tubing
25W11355919 Whirlpool Range Gas Tubing
26W11661576 Whirlpool Oven Bottom Pan
