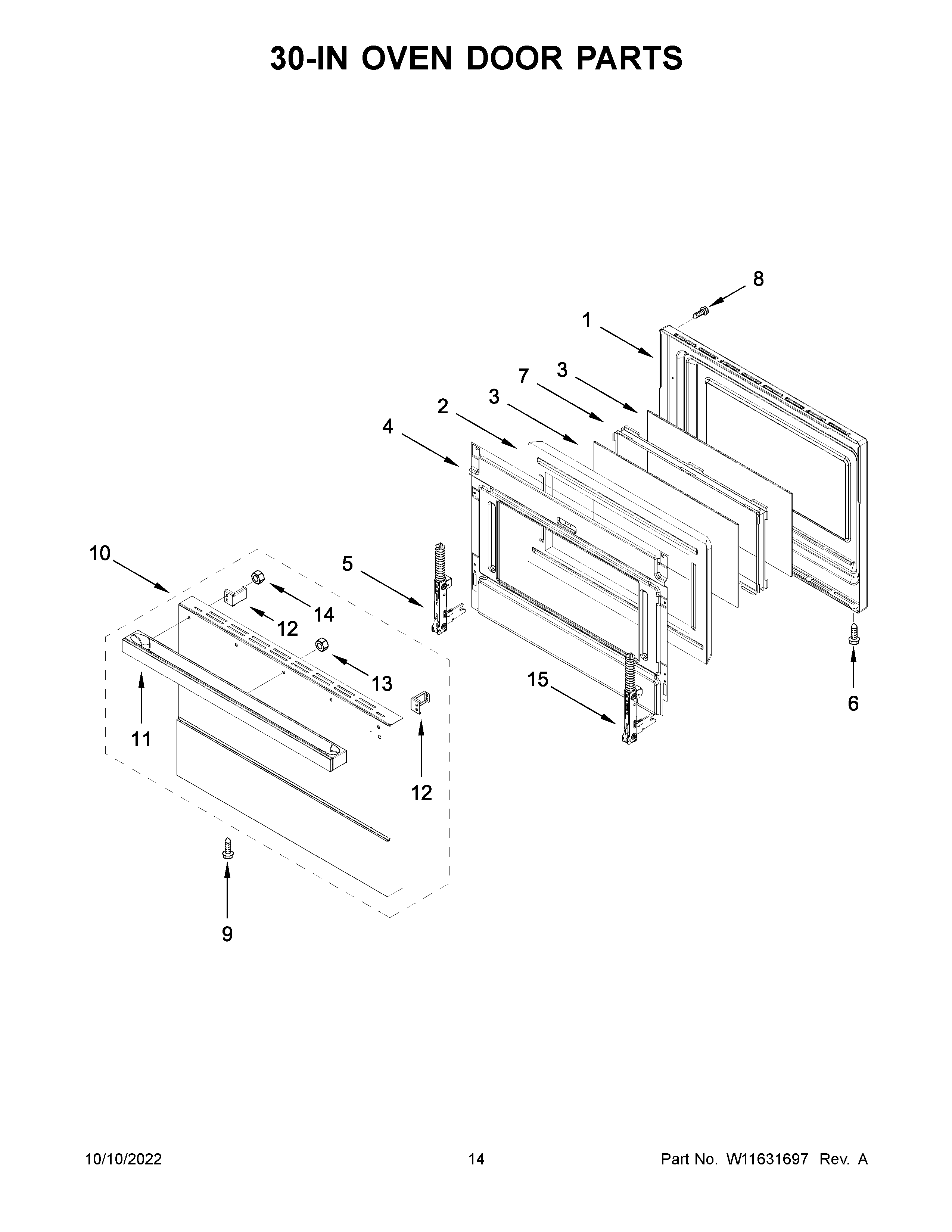

JGRP748HM05 08 – 30-IN OVEN DOOR PARTS

JGRP748HM05 08 – 30-IN OVEN DOOR PARTS

Written by

in

JGRP748HM05 08 – 30-IN OVEN DOOR PARTS

Products

PositionProduct
1W11318831 Whirlpool Glass Frame
2INSULATION, DOOR (30 IN)
3W11318823 Whirlpool Door Glass
4RETAINER, GLASS
5W11568941 Whirlpool Door Hinge Assembly
6W11193480 Whirlpool Screw
7WPW10272594 Whirlpool Window Frame
8W11712404 Whirlpool Screw
9W10162096 Whirlpool Screw
10W11315556 Whirlpool Glass Door
11HANDLE, DOOR
12W11317894 Whirlpool Mounting Bracket
13NUT
14NUT
15W11568813 Whirlpool Door Hinge
