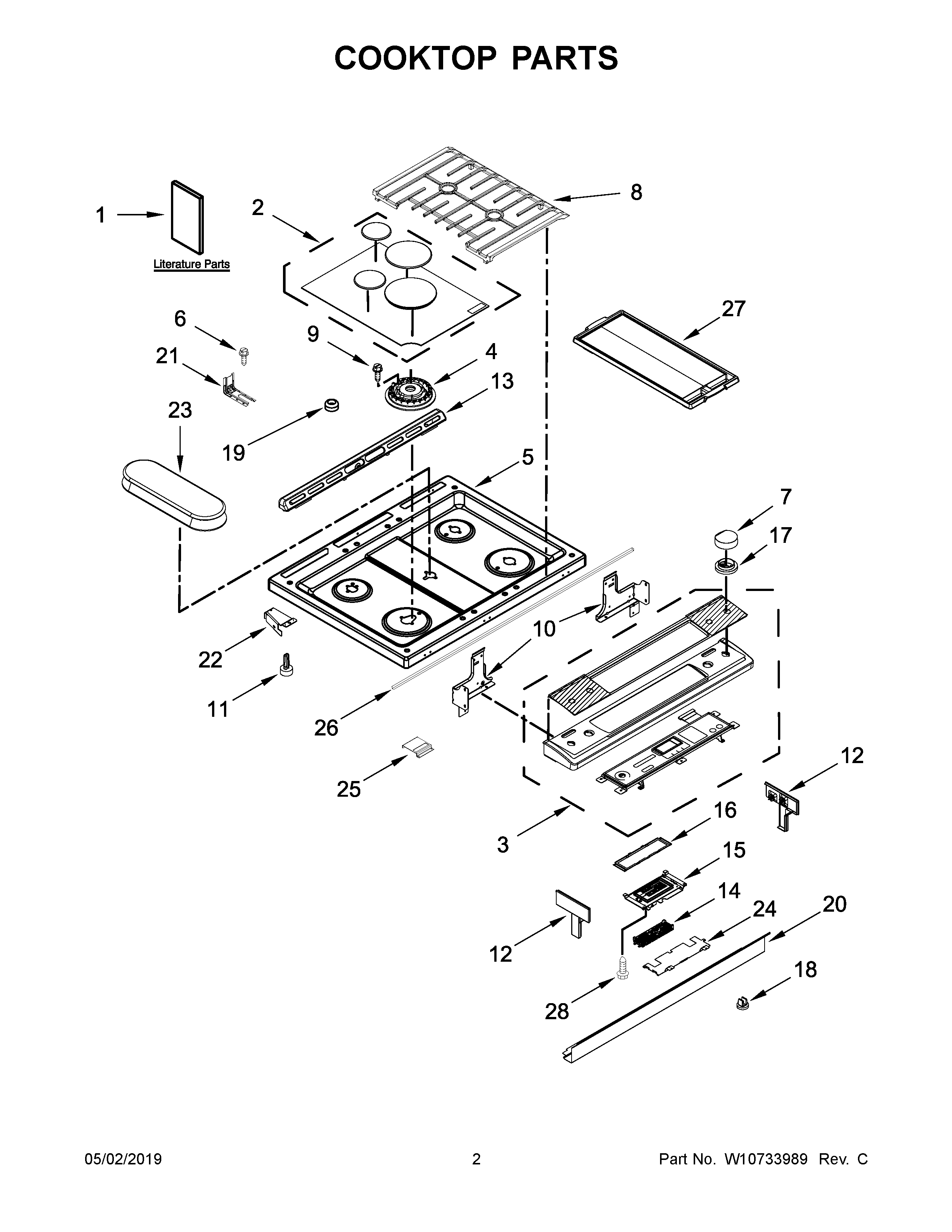

JGS1450DB0 02 – COOKTOP PARTS

JGS1450DB0 02 – COOKTOP PARTS

Written by

in

JGS1450DB0 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, DISPLAY
NI	MAY W10580265
NI	MAY W10575120
NI	LINER (NOT A SERVICEABLE PART)
NI	WIRE, GROUND
NI	CLIP, WIRE
NI	CLIP, HARNESS
NI	MAY W10701082
NI	MAY W10754419
NI	MAY W10580232
1B	SHEET, TECH
1D	MAY W10400066
1E	MAY W10400067
1	MAY W10665256
1A	MAY W10665265
1C	MAY W10665235
2	KIT, BURNER CAP (BLACK)
3A	CONSOLE (STAINLESS)
3	CONSOLE (BLACK)
4C	MAY W10556377
4	MAY W10556380
4B	MAY W10556378
4A	MAY W10556379
5A	MAY W10474665
5	MAY W10474663
6	SCREW, ANTI-TIP KIT
7	MAY W10505765
7A	MAY W10505764
8	KIT, GRATE (BLACK)
9	SCREW
10	SUPPORT, COOKTOP (LEFT)
10B	BRACKET, CONSOLE (CE
10A	SUPPORT, COOKTOP (RIGHT)
11	GLIDE, MAIN TOP
12	ENDCAP (BLACK (LEFT))
12C	ENDCAP (STAINLESS (RIGHT))
12B	ENDCAP (STAINLESS (LEFT))
12A	ENDCAP (BLACK (RIGHT))
13A	MAY W10577782
13	TRIM, VENT (BLACK)
14	MAY W11254196
15	MAY W10603095
16	BRACKET, CONTROL
17	MAY W10490680
17A	MAY W10490679
18	GROMMET
19	BUMPER
20	CONSOLE, LOWER PANEL (BLACK)
20A	CONSOLE, LOWE
21	BRACKET, ANTI-TIP
22	BRACE, CORNER (LEFT)
22A	BRACE, CORNER (RIGHT)
23	SPREADER, FLAME (FISH)
24	BRACKET, CONTROL
25	SHIELD, KEYPAD
26	GASKET, CONSOLE/COOKTOP
27	GRIDDLE
28	SCREW
