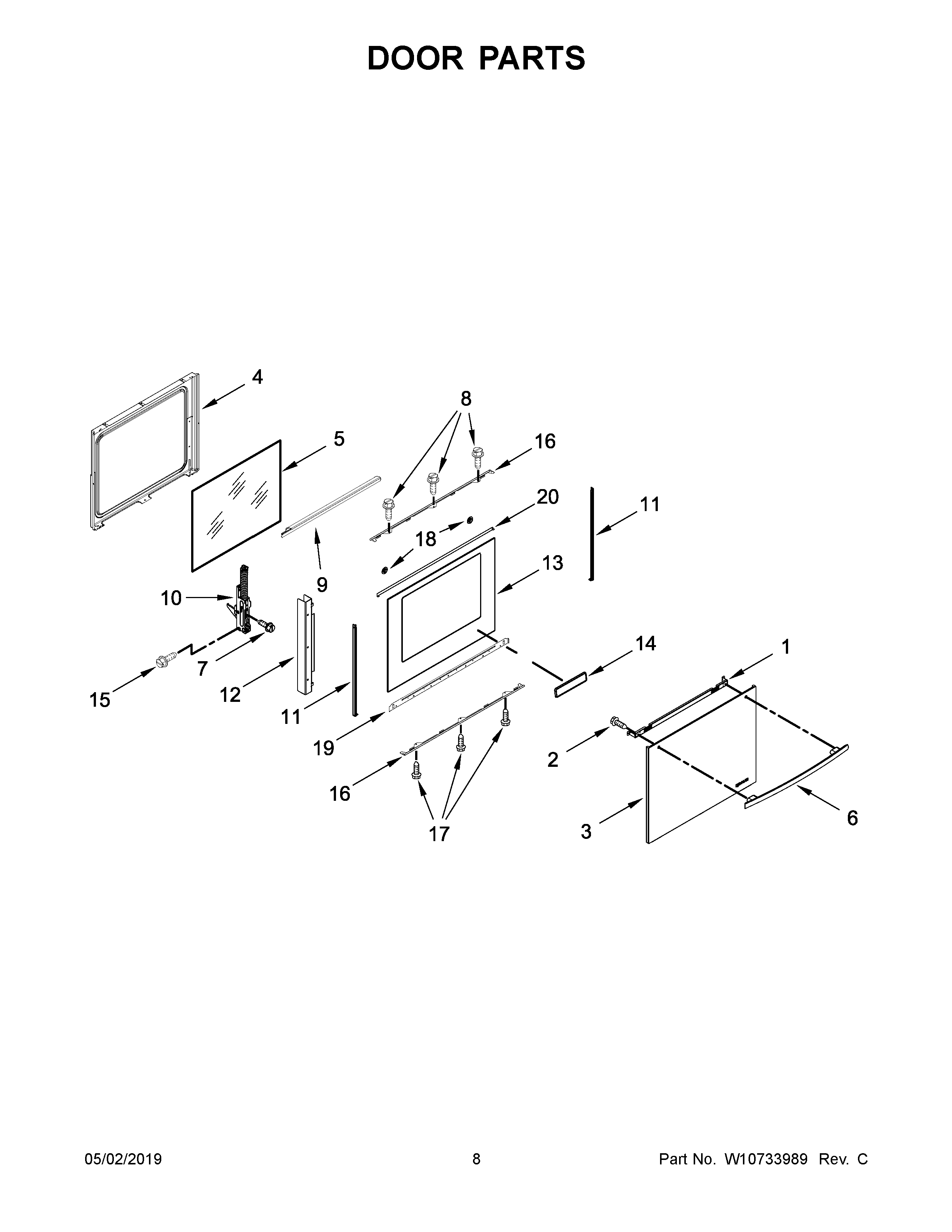

JGS1450DB0 05 – DOOR PARTS

Products

PositionProduct
1BRACKET, GLASS UPPER HANDLE
2SCREW
3DOOR, COMPLETE (STAINLESS)
4MAY W10541882
5MAY W10541888
6AASSEMBLY, DOOR HANDLE (STAINLESS)
6ASSEMBLY, DOOR HANDLE (BLACK)
7MAY W10031780
8SCREW
9ASCOOP, DOOR (STAINLESS)
9SCOOP, DOOR (BLACK)
10MAY W10541887
10AHINGE, SLOW CLOSE (STAINLESS MODELS)
11TRIM, DOOR SIDE (BLACK)
12MAY W10541883
13ASSEMBLY, OUTER DOOR (BLACK)
14AASSEMBLY, BADGE (STAINLESS)
14ASSEMBLY, BADGE (BLACK)
15SCREW
16MAY W10541885
17SCREW
18WASHER, DOOR
19MAY W10541912
20DOOR, TRIM TOP
