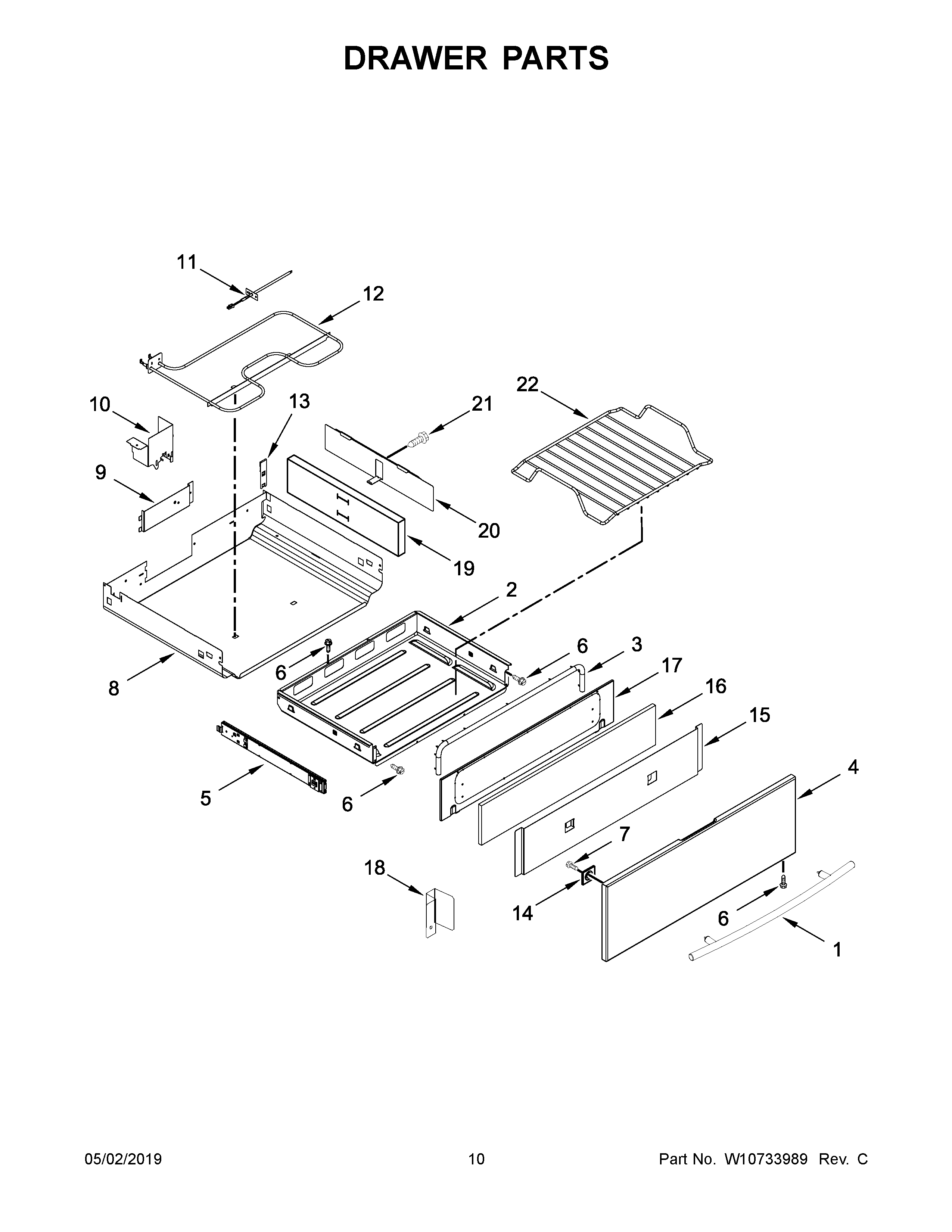

JGS1450DB0 06 – DRAWER PARTS

Products

PositionProduct
NIMAY W10550983
NIMAY W10541960
NILINER (NOT A SERVICEABLE PART)
1AASSEMBLY, DOOR HANDLE (STAINLESS)
1ASSEMBLY, DOOR HANDLE (BLACK)
2DRAWER, BAKE
3SEAL, DRAWER
4APANEL, DRAWER FRONT (STAINLESS)
4PANEL, DRAWER FRONT (BLACK)
5SLIDE, DRAWER (LEFT)
5ASLIDE, DRAWER (RIGHT)
6SCREW
7SCREW
8MAY W10634260
9MAY W10551025
10MAY W10634259
11MAY W10586204
12ELEMENT, BAKE
13COVER, SIDE
14MAY 3823F017-45
15INSULATION, DRAWER FRONT
16INSULATION, DRAWER
17PANEL, FRONT INNER
18MAY W10655446
19MAY W10550984
20MAY W10550985
21SCREW
22RACK, BAKE DRAWER
