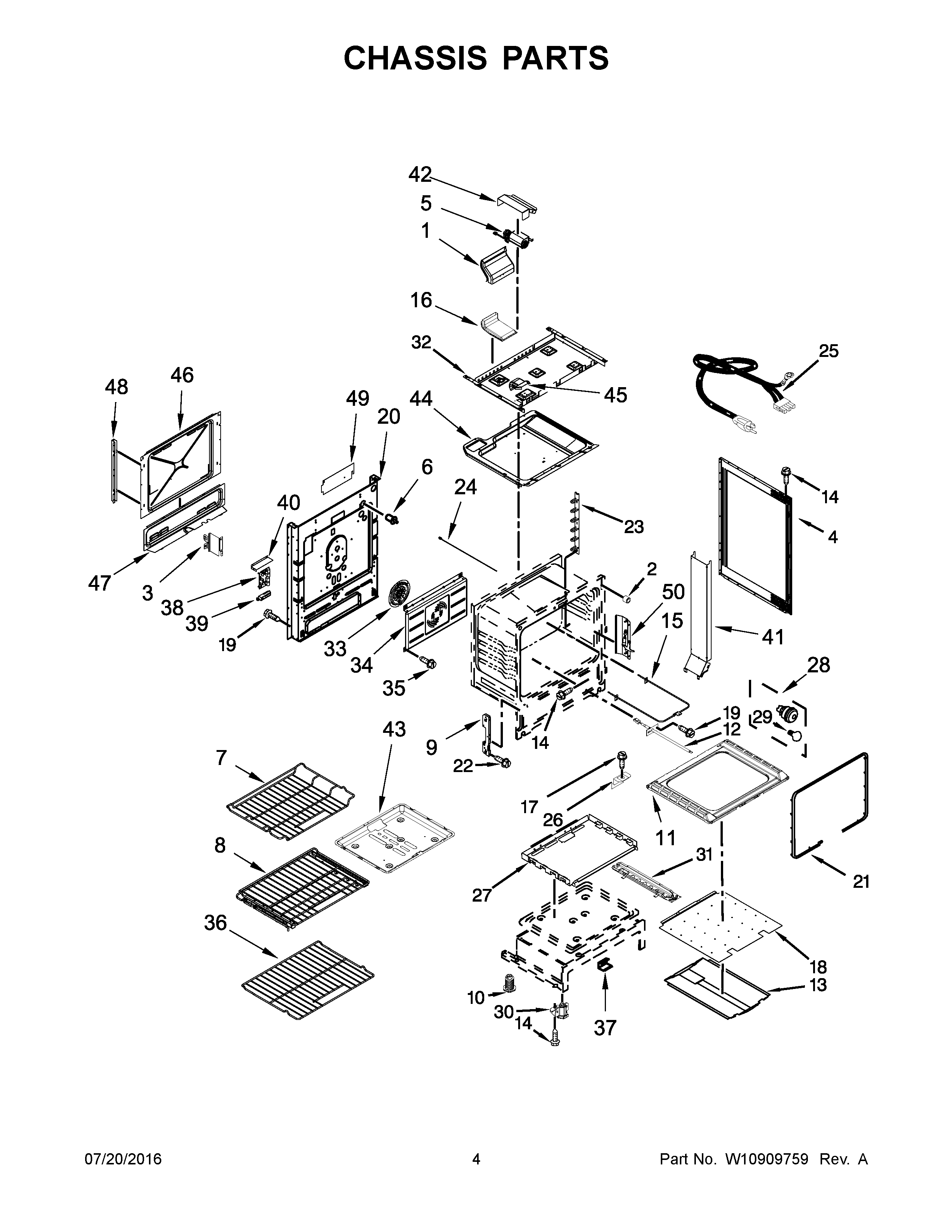

JGS1450DB1 03 – CHASSIS PARTSadmin2025-04-26T09:19:56+00:00JGS1450DB1 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, BACK |
| NI | STRAP, INSULATION |
| NI | INSULATION, WRAP |
| NI | INSULATION, WRAP GAS |
| NI | MAY 7111P017-60 |
| NI | MAY W10526209 |
| 1 | ASSEMBLY, FLUE |
| 2 | SPACER, DOOR |
| 3 | BRACKET, SUPPORT |
| 4 | PANEL, SIDE (BLACK) |
| 5 | ASSEMBLY, COOLING FAN |
| 6 | SWITCH, DOOR |
| 7 | RACK, MAXIMUM CAPACITY |
| 8 | MAY W10554008 |
| 9 | HINGE, RECEIVER |
| 10 | FOOT, LEVELING |
| 11 | MAY W10211368 |
| 12 | MAY W10586204 |
| 13 | MAY 3601P356-45 |
| 15 | MAY W10552502 |
| 16 | ASSEMBLY, UPPER FLUE |
| 18 | MAY W10323077 |
| 19 | SCREW |
| 20 | BACK, MAIN |
| 21 | MAY W10162385 |
| 22 | MAY W10031780 |
| 23 | RACK, LADDER |
| 24 | ROD, REAR DOOR |
| 25 | CORD, POWER |
| 26 | MAY W10035900 |
| 27 | SHIELD, BAKE |
| 28 | ASSEMBLY, LIGHT |
| 29 | BULB, OVEN LIGHT |
| 30 | ASSEMBLY, FRONT FOOT |
| 31A | ASSEMBLY, BASE RAIL (LEFT) |
| 31 | ASSEMBLY, BASE RAIL (RIGHT) |
| 32 | BURNER, BOX GAS |
| 33 | MAY W10617484 |
| 34 | BAFFLE, FULL CONVECTION |
| 35 | MAY W10362924 |
| 36 | RACK, HEAVY DUTY |
| 37 | CLIP, PANEL |
| 38 | MODULE, SPARK (0+2) |
| 39 | MAY W10475149 |
| 40 | MAY W10655451 |
| 41 | DUCT, COOLING |
| 42 | DUCT, COVER |
| 43 | MAY W10273204 |
| 44 | BOX, BURNER SI |
| 45 | MAY W10162257 |
| 46 | MAY W10289172 |
| 47 | COVER, WIRE |
| 48 | MAY W10162241 |
| 49 | SHIELD, WIRE |
| 50 | RECEIVER, SLOW CLOSE HINGE |
