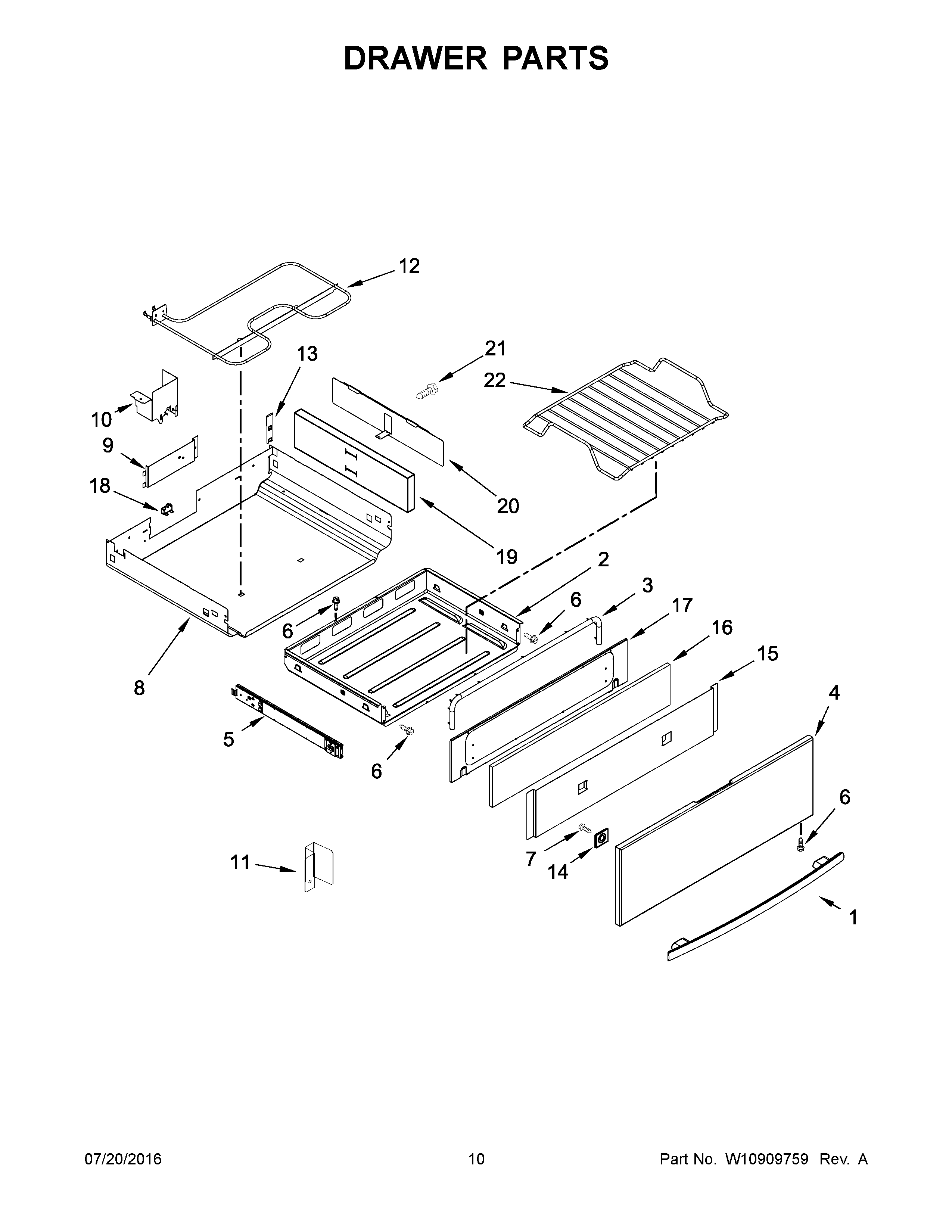

JGS1450DB1 06 – DRAWER PARTSadmin2025-04-26T09:19:52+00:00JGS1450DB1 06 – DRAWER PARTS
Products
| Position | Product |
|---|
| NI | MAY W10550983 |
| NI | MAY W10541960 |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1A | ASSEMBLY, DOOR HANDLE (STAINLESS) |
| 1 | ASSEMBLY, DOOR HANDLE (BLACK) |
| 2 | DRAWER, BAKE |
| 3 | SEAL, DRAWER |
| 4A | PANEL, DRAWER FRONT (STAINLESS) |
| 4 | PANEL, DRAWER FRONT (BLACK) |
| 5A | MAY W10541945 |
| 5 | MAY W10541946 |
| 6 | SCREW |
| 7 | Screw |
| 8 | MAY W10634260 |
| 9 | MAY W10551025 |
| 10 | MAY W10634259 |
| 11 | MAY W10655446 |
| 12 | ELEMENT, BAKE |
| 13 | COVER, SIDE |
| 14 | MAY 3823F017-45 |
| 15 | INSULATION, DRAWER FRONT |
| 16 | INSULATION, DRAWER |
| 17 | PANEL, FRONT INNER |
| 18 | FUSE, THERMAL |
| 19 | MAY W10550984 |
| 20 | MAY W10550985 |
| 21 | SCREW |
| 22 | RACK, BAKE DRAWER |
