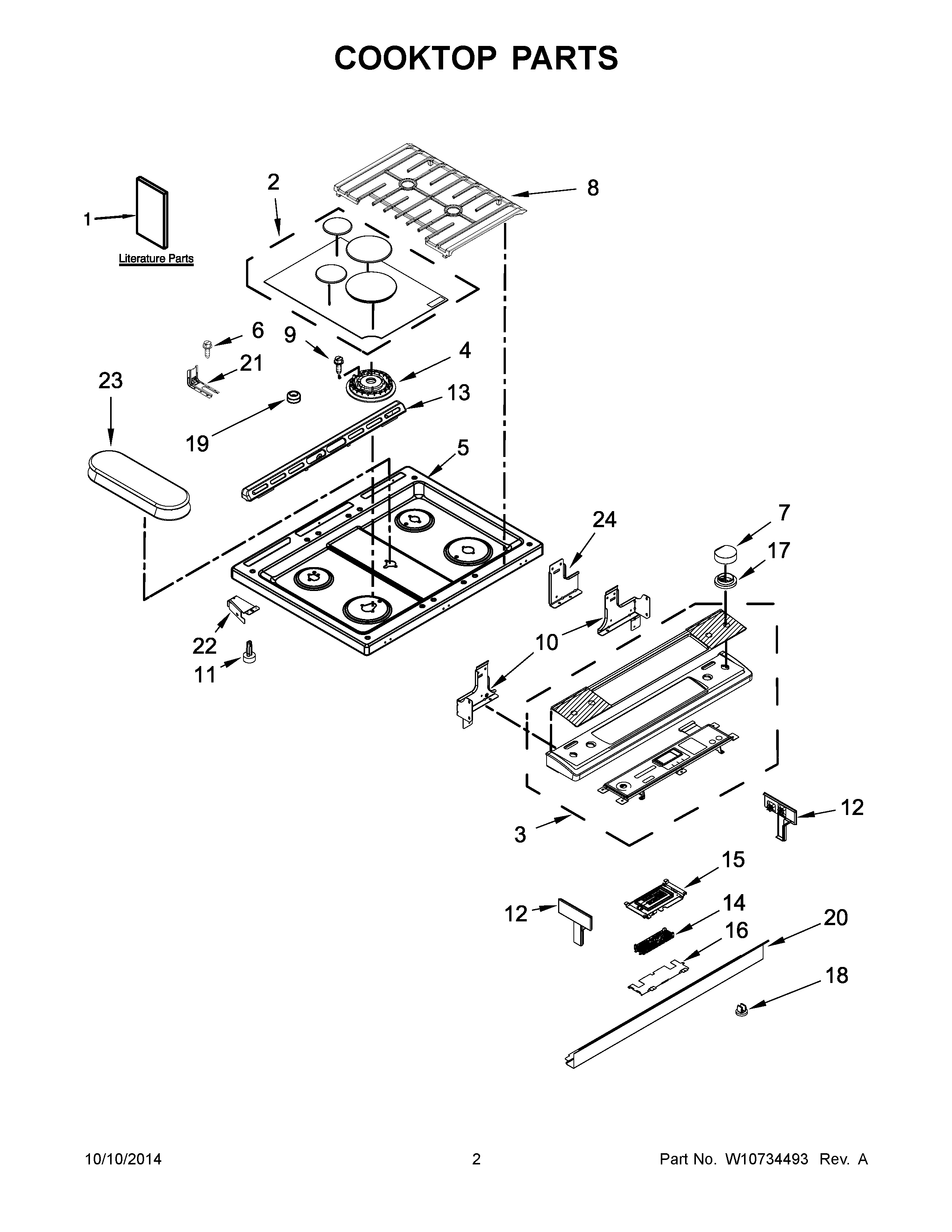

JGS1450DP0 02 – COOKTOP PARTS

JGS1450DP0 02 – COOKTOP PARTS

Written by

in

JGS1450DP0 02 – COOKTOP PARTS

Products

PositionProduct
NIWIRE, GROUND
NIMAY W10575120
NIMAY W10580265
NICLIP, WIRE
NICLIP, HARNESS
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, DISPLAY
NIMAY W10580228
NIMAY W10580232
1AMAY W10665265
1MAY W10665256
1CMAY W10665235
1GMAY W10400067
1FMAY W10400066
1BSHEET, TECH
1ETIPS, SAFE COOKING (FRENCH)
1DTIPS, SAFE COOKING (ENGLISH)
2KIT, BURNER CAP (BLACK)
3CONSOLE (STAINLESS)
4MAY W10556378
4AMAY W10556377
4BMAY W10556379
4CMAY W10556380
5MAY W10474665
6SCREW, ANTI-TIP KIT
7MAY W10505764
8KIT, GRATE (BLACK)
9SCREW
10ASUPPORT, COOKTOP (RIGHT)
10SUPPORT, COOKTOP (LEFT)
11GLIDE, MAIN TOP
12ENDCAP (STAINLESS (LEFT))
12AENDCAP (STAINLESS (RIGHT))
13MAY W10577782
14MAY W10453981
15MAY W10603095
16BRACKET, CONTROL
17MAY W10490679
18GROMMET
19BUMPER
20CONSOLE, LOWE
21BRACKET, ANTI-TIP
22BRACE, CORNER (LEFT)
22ABRACE, CORNER (RIGHT)
23SPREADER, FLAME (FISH)
24BRACKET, CONSOLE (CE
