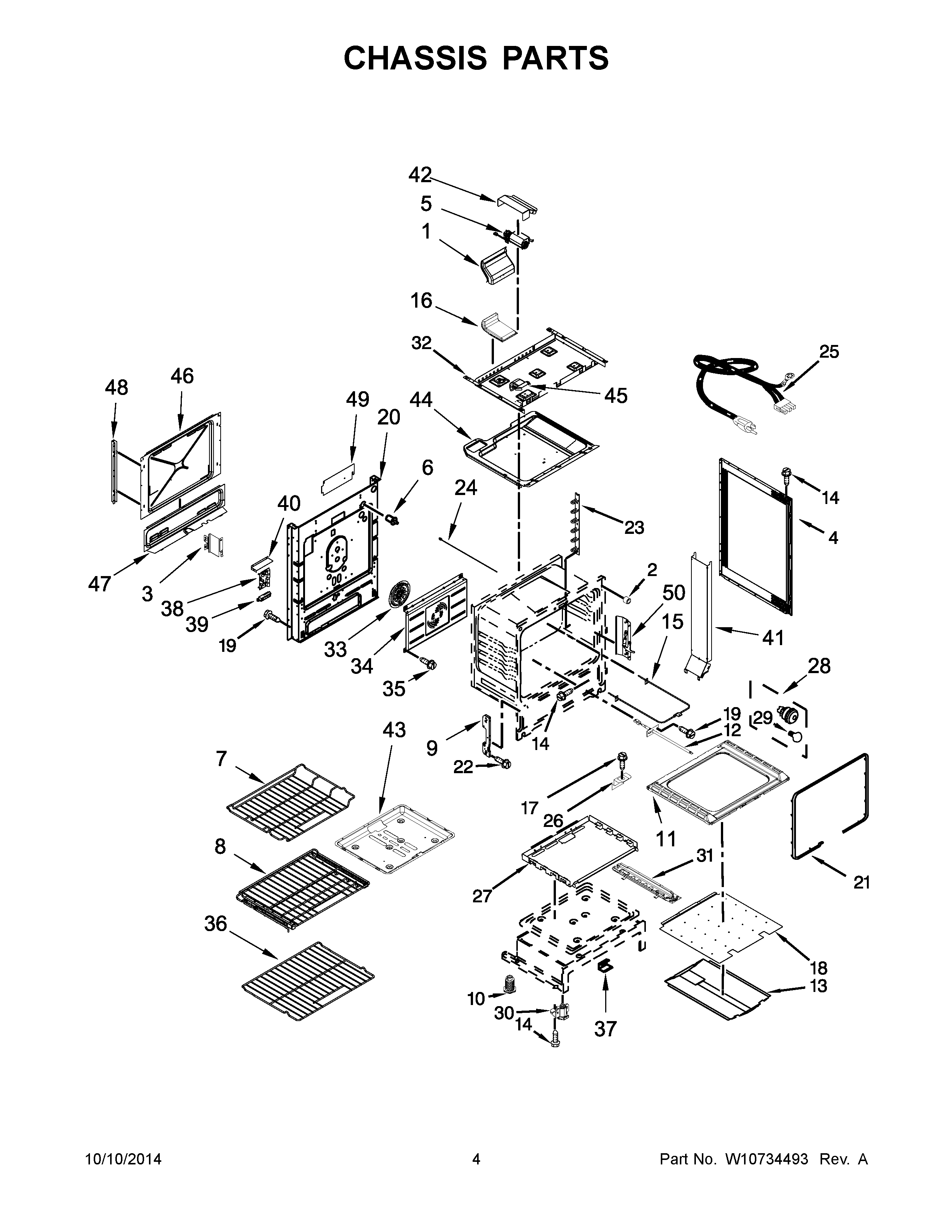

JGS1450DP0 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7111P017-60
NI	INSULATION, BURNER BOX
NI	INSULATION, BACK
NI	STRAP, INSULATION
NI	INSULATION, WRAP
1	ASSEMBLY, FLUE
2	SPACER, DOOR
3	BRACKET, SUPPORT
4	PANEL, SIDE (BLACK)
5	MAY W10162259
6	SWITCH, DOOR
7	RACK, MAXIMUM CAPACITY
8	MAY W10554008
9	HINGE, RECEIVER
10	FOOT, LEVELING
11	MAY W10211368
12	MAY W10586204
13	MAY 3601P356-45
15	MAY W10552502
16	ASSEMBLY, UPPER FLUE
18	MAY W10323077
19	SCREW
20	BACK, MAIN
21	MAY W10162385
22	MAY W10031780
23	RACK, LADDER
24	ROD, REAR DOOR
25	CORD, POWER
26	MAY W10035900
27	SHIELD, BAKE
28	ASSEMBLY, LIGHT
29	BULB, OVEN LIGHT
30	ASSEMBLY, FRONT FOOT
31A	ASSEMBLY, BASE RAIL (LEFT)
31	ASSEMBLY, BASE RAIL (RIGHT)
32	BURNER, BOX GAS
33	MAY W10617484
34	BAFFLE, FULL CONVECTION
35	MAY W10362924
36	RACK, HEAVY DUTY
37	CLIP, PANEL
38	MODULE, SPARK (0+2)
39	MAY W10475149
40	MAY W10655451
41	DUCT, COOLING
42	DUCT, COVER
43	MAY W10273204
44	BOX, BURNER SI
45	MAY W10162257
46	MAY W10289172
47	COVER, WIRE
48	MAY W10162241
49	MAY W10655485
50	RECEIVER, SLOW CLOSE HINGE
