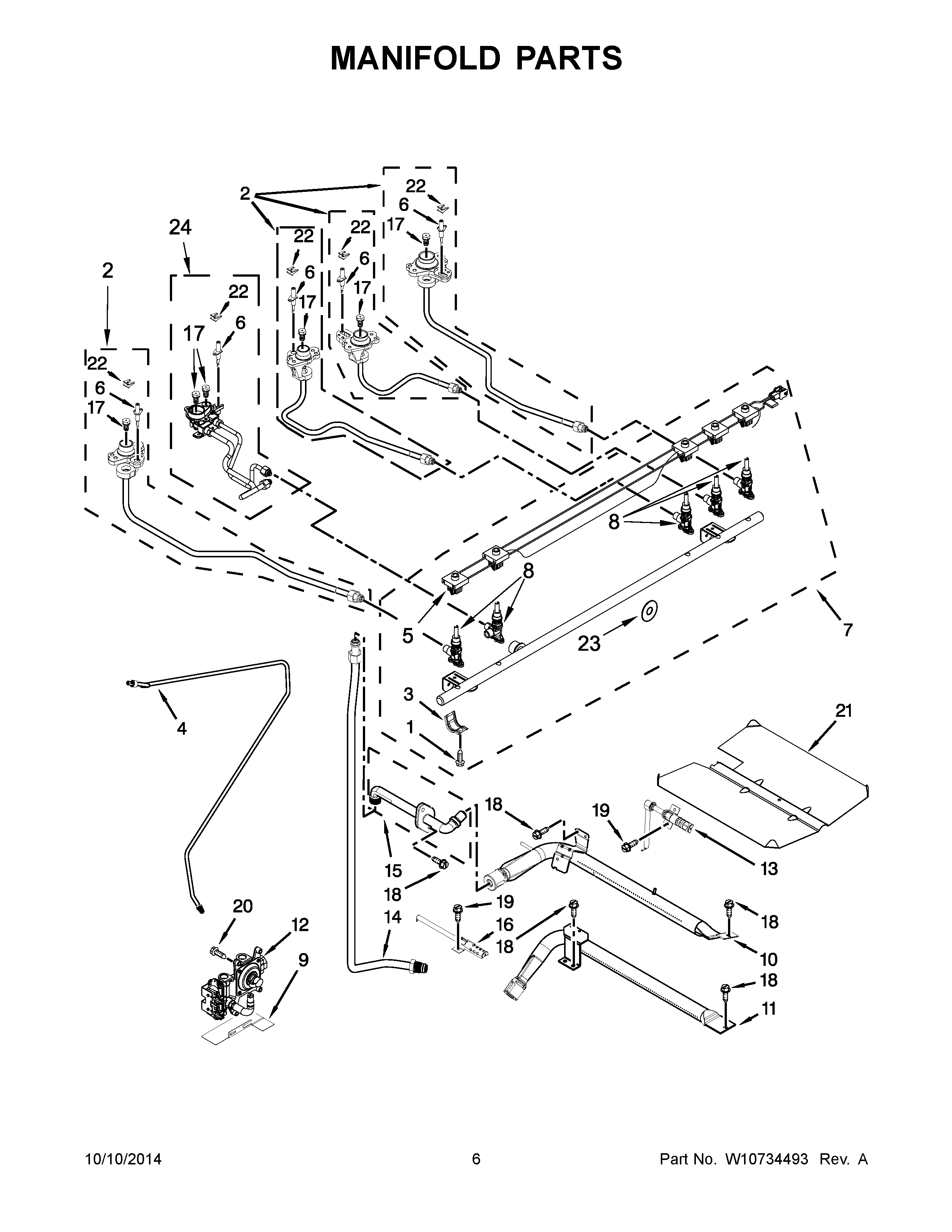

JGS1450DP0 04 – MANIFOLD PARTS

JGS1450DP0 04 – MANIFOLD PARTS

Written by

in

JGS1450DP0 04 – MANIFOLD PARTS

Products

PositionProduct
NIKIT, LP CONVERSION
NILINER (NOT A SERVICEABLE PART)
NIMISCELLANEOUS PARTS, KIT, BAKE & BROIL
1SCREW
2MAY W10552131
2CMAY W10552137
2BMAY W10552132
2AMAY W10552130
3BRACKET, SADDLE VALVE
4MAY W10432252
5MAY W10468433
6MAY W10496872
6AELECTRODE (RIGHT FRONT & CENTER)
6CMAY W10496874
6BMAY W10464799
7MAY W10475028
8VALVE, GAS (RIGHT REAR & CENTER)
8AVALVE, GAS (RIGHT FRONT)
8BVALVE, GAS (LEFT REAR)
8CMAY W10566038
9BRACKET, AEGIS
10MAY W10439242
11MAY W10696896
12MAY W10554066
13ELECTRODE, BAKE
14MAY W10306050
15MAY W10319134
16ELECTRODE, BROIL
17EMAY W10515054
17CORIFICE (LEFT FRONT)
17ORIFICE (RIGHT FRONT)
17AORIFICE (RIGHT REAR)
17BORIFICE (LF-LOW)
17DORIFICE (8K) (CENTER)
18SCREW
19SCREW
20SCREW
21MAY 3601P336-45
22CLIP, SPRING ELECTRODE
23SEAL, SWITCH SHAFT
24ASSEMBLY, ORIFICE (19K)
