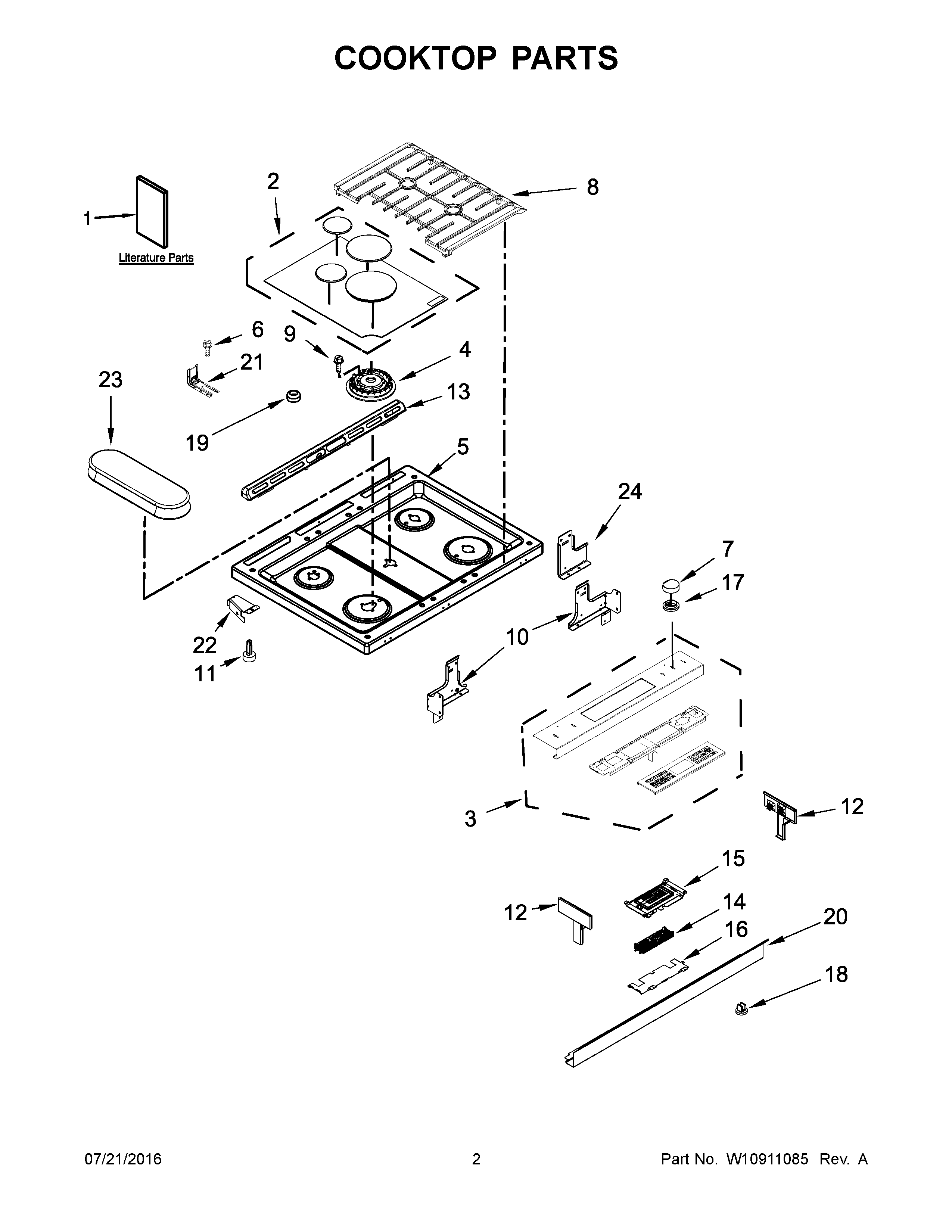

JGS1450DP1 02 – COOKTOP PARTS

Products

PositionProduct
NICLIP, WIRE
NIMAY W10575120
NIMAY W10580265
NIWIRE, GROUND
NICLIP, HARNESS
NILINER (NOT A SERVICEABLE PART)
NIMAY W10754419
NIHARNESS, DISPLAY
NIMAY W10580232
NIMAY 7111P017-60
1FMAY W10400066
1MAY W10665256
1GMAY W10400067
1CMAY W10665235
1AMAY W10665265
1BSHEET, TECH
1DTIPS, SAFE COOKING (ENGLISH)
1ETIPS, SAFE COOKING (FRENCH)
2KIT, BURNER CAP (BLACK)
3MAY W10901070
4CMAY W10556380
4MAY W10556378
4AMAY W10556377
4BMAY W10556379
5MAY W10474665
6SCREW, ANTI-TIP KIT
7KNOB (STAINLESS)
8KIT, GRATE (BLACK)
9SCREW
10ASUPPORT, COOKTOP (RIGHT)
10SUPPORT, COOKTOP (LEFT)
11GLIDE, MAIN TOP
12ENDCAP (STAINLESS (LEFT))
12AENDCAP (STAINLESS (RIGHT))
13MAY W10577782
14MAY W10453981
15MAY W10603095
16BRACKET, CONTROL
17MAY W10490679
18GROMMET
19BUMPER
20CONSOLE, LOWE
21BRACKET, ANTI-TIP
22BRACE, CORNER (LEFT)
22ABRACE, CORNER (RIGHT)
23SPREADER, FLAME (FISH)
24BRACKET, CONSOLE (CE
