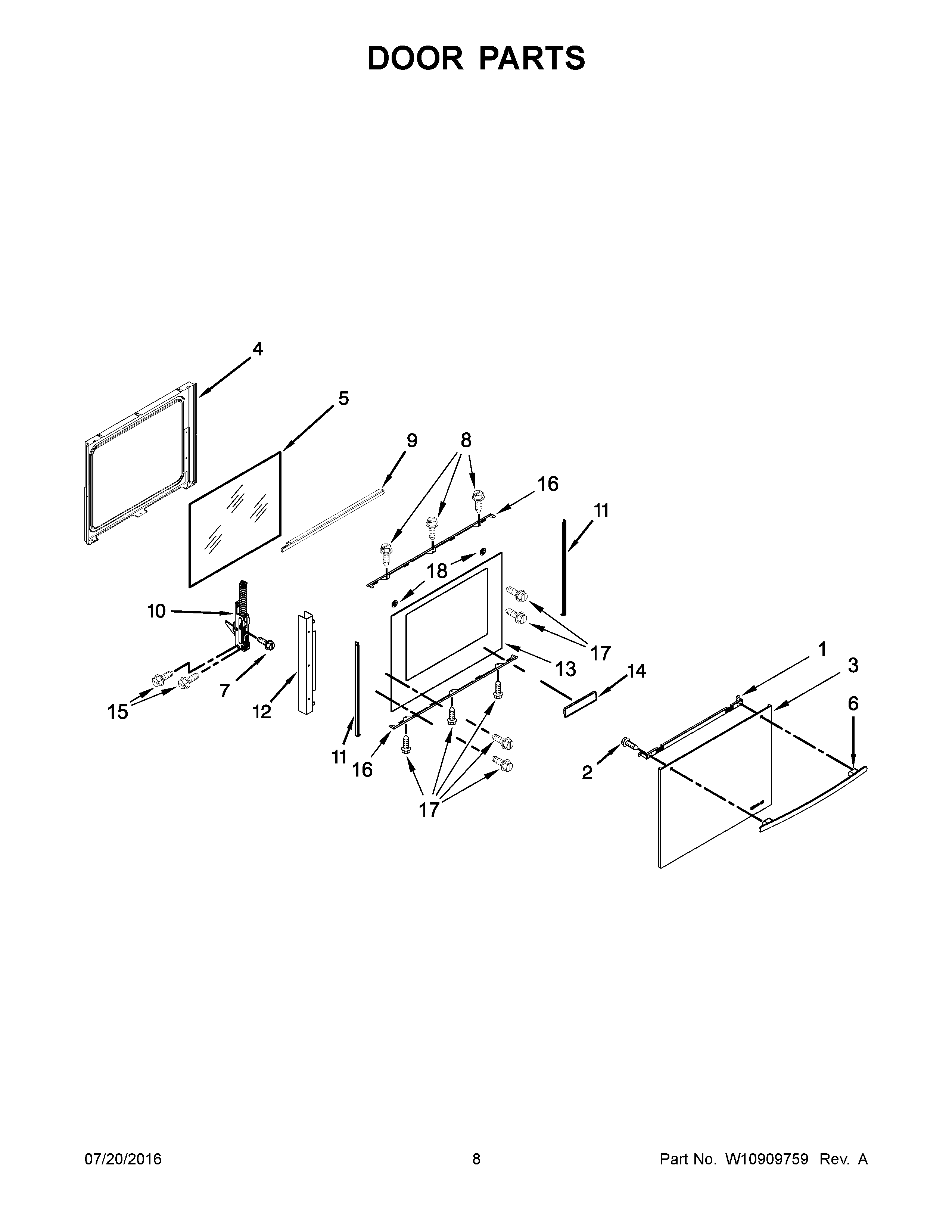

JGS1450DS1 05 – DOOR PARTS

Products

Position	Product
1	BRACKET, GLASS UPPER HANDLE
2	SCREW
3	DOOR, COMPLETE (STAINLESS)
4	LINER, DOOR
5	GLASS, INNER
6A	ASSEMBLY, DOOR HANDLE (STAINLESS)
6	ASSEMBLY, DOOR HANDLE (BLACK)
7	MAY W10031780
8	SCREW
9	SCOOP, DOOR (BLACK)
9A	SCOOP, DOOR (STAINLESS)
10	HINGE, SLOW CLOSE
11	TRIM, DOOR SIDE (BLACK)
12	RAIL, VERTICAL SUPPORT
13	ASSEMBLY, OUTER DOOR (BLACK)
14	ASSEMBLY, BADGE (BLACK)
14A	ASSEMBLY, BADGE (STAINLESS)
15	SCREW
16	RAIL, HORIZONTAL SUPPORT
17	SCREW
18	WASHER, DOOR
