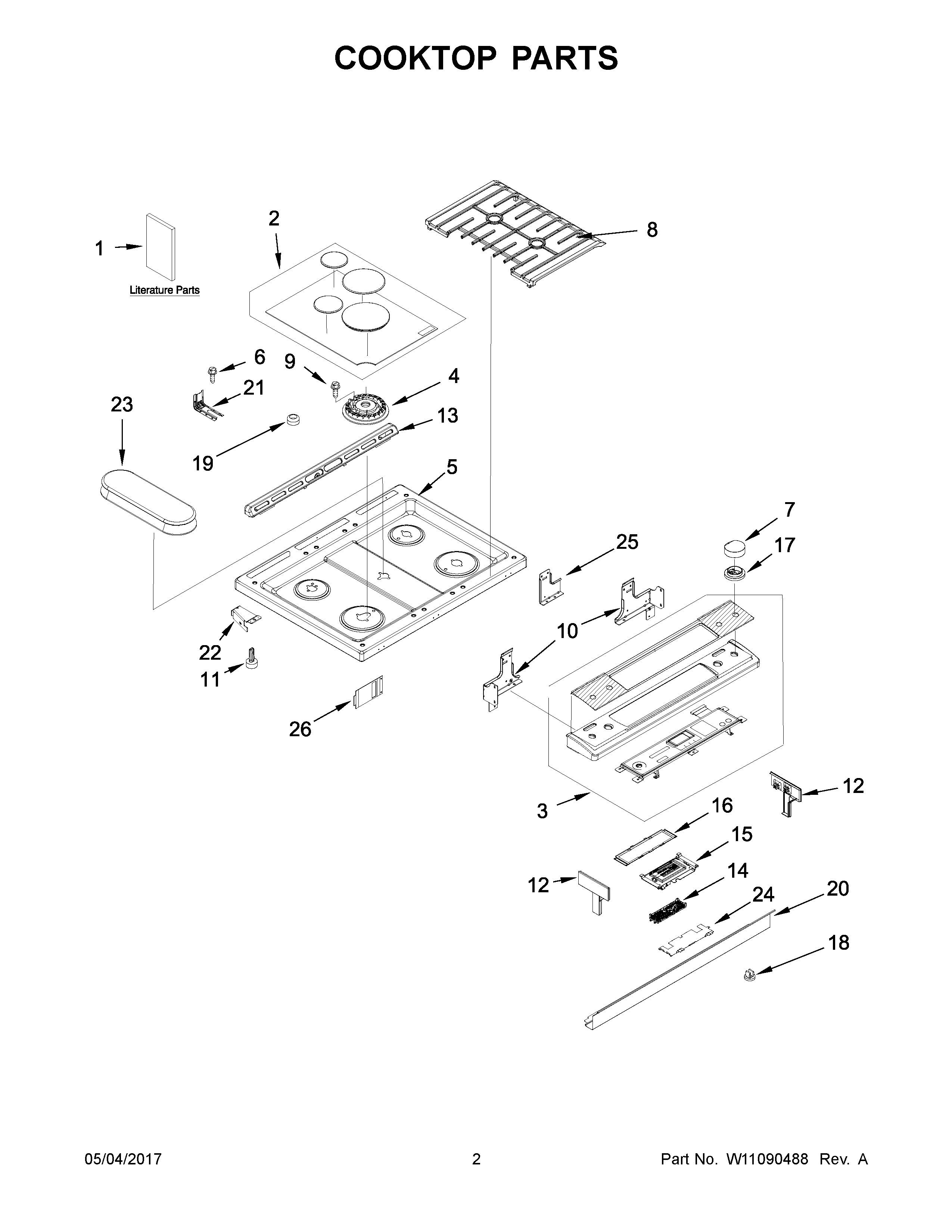

JGS1450FB0 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10575120
NIMAY W10580265
NILINER (NOT A SERVICEABLE PART)
NIWIRE, GROUND
NICLIP, WIRE
NICLIP, HARNESS
NIMAY W10916510
NIMAY W10754419
NIMAY W10580232
NIHARNESS, DISPLAY
1DTIPS, SAFE COOKING (ENGLISH)
1ETIPS, SAFE COOKING (FRENCH)
1GMAY W10400067
1CMAY W10902662
1BSHEET, TECH
1MAY W10665256
1AMAY W10896667
1FMAY W10400066
2KIT, BURNER CAP (BLACK)
3MAY W10901071
3AMAY W10901070
4BMAY W10556379
4CMAY W10556380
4AMAY W10556377
4MAY W10556378
5MAY W10474663
5AMAY W10474665
6SCREW, ANTI-TIP KIT
7MAY W10505765
7AMAY W10505764
8KIT, GRATE (BLACK)
9SCREW
10ASUPPORT, COOKTOP (RIGHT)
10SUPPORT, COOKTOP (LEFT)
11GLIDE, MAIN TOP
12CENDCAP (STAINLESS (RIGHT))
12ENDCAP (BLACK (LEFT))
12BENDCAP (BLACK (RIGHT))
12AENDCAP (STAINLESS (LEFT))
13AMAY W10577782
13TRIM, VENT (BLACK)
14CONTROL, OVEN
15MAY W10759324
16BRACKET, CONTROL
17MAY W10490680
17AMAY W10490679
18GROMMET
19BUMPER
20CONSOLE, LOWER PANEL (BLACK)
20ACONSOLE, LOWE
21BRACKET, ANTI-TIP
22ABRACE, CORNER (RIGHT)
22BRACE, CORNER (LEFT)
23SPREADER, FLAME (FISH)
24BRACKET, CONTROL
25BRACKET, CONSOLE (CE
26SHIELD, KEYPAD
