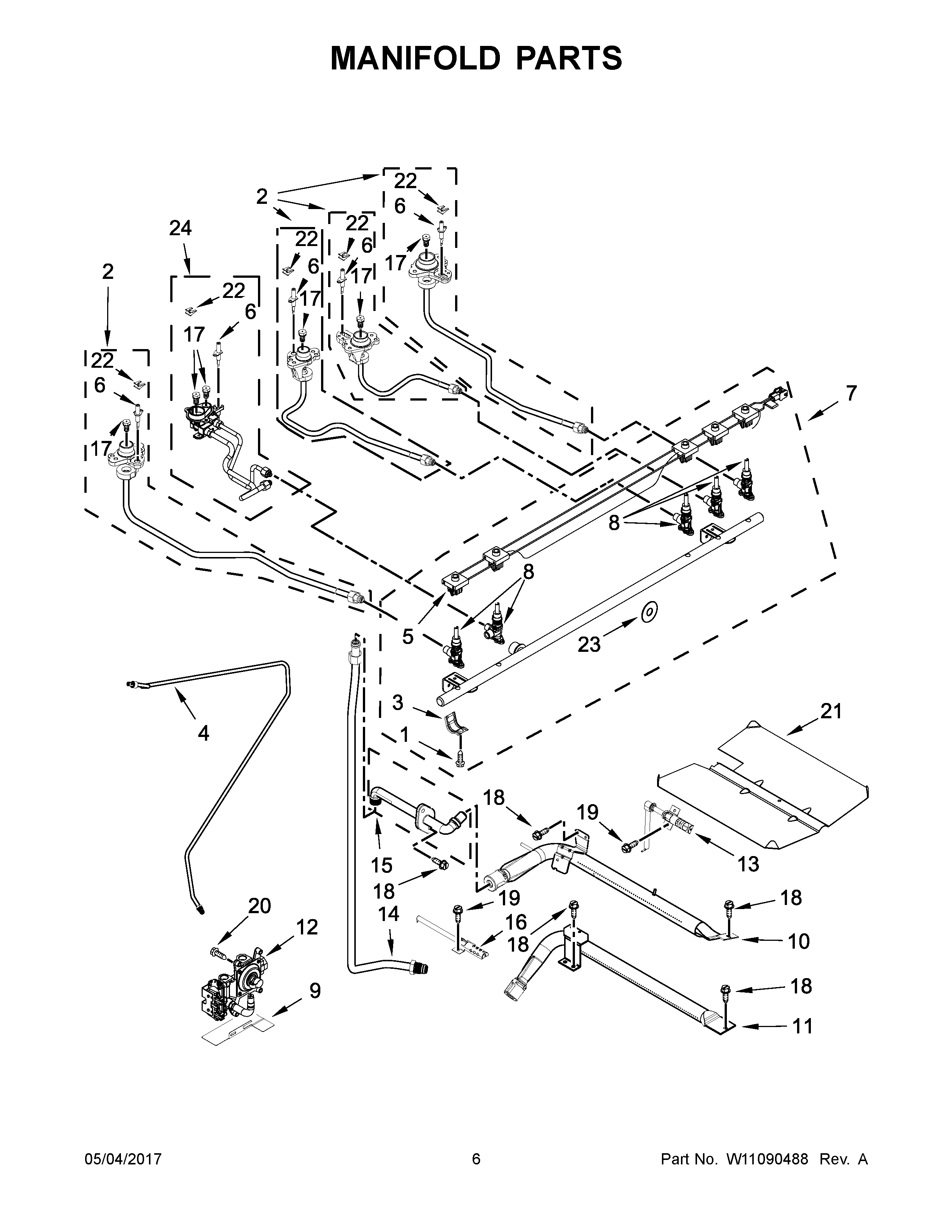

JGS1450FB0 04 – MANIFOLD PARTSadmin2025-04-26T09:20:18+00:00JGS1450FB0 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | KIT, LP CONVERSION |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | SCREW |
| 2B | MAY W10552132 |
| 2C | MAY W10552137 |
| 2A | MAY W10552130 |
| 2 | MAY W10552131 |
| 3 | BRACKET, SADDLE VALVE |
| 4 | MAY W10432252 |
| 5 | MAY W10468433 |
| 6 | MAY W10496872 |
| 6B | MAY W10464799 |
| 6C | MAY W10496874 |
| 6A | ELECTRODE (RIGHT FRONT & CENTER) |
| 7 | ASSEMBLY, MANIFOLD |
| 8 | VALVE, GAS (RIGHT REAR & CENTER) |
| 8C | MAY W10566038 |
| 8B | VALVE, GAS (LEFT REAR) |
| 8A | VALVE, GAS (RIGHT FRONT) |
| 9 | BRACKET, AEGIS |
| 10 | MAY W10439242 |
| 11 | MAY W10680035 |
| 12 | MAY W10554066 |
| 13 | ELECTRODE, BAKE |
| 14 | MAY W10306050 |
| 15 | FITTING, BROIL BURNER |
| 16 | ELECTRODE, BROIL |
| 17E | MAY W10515054 |
| 17A | ORIFICE (RIGHT REAR) |
| 17D | ORIFICE (8K) (CENTER) |
| 17C | ORIFICE (LEFT FRONT) |
| 17B | ORIFICE (LF-LOW) |
| 17 | ORIFICE (RIGHT FRONT) |
| 18 | SCREW |
| 19 | SCREW |
| 20 | SCREW |
| 21 | MAY 3601P336-45 |
| 22 | CLIP, SPRING ELECTRODE |
| 23 | SEAL, SWITCH SHAFT |
| 24 | ASSEMBLY, ORIFICE (19K) |
