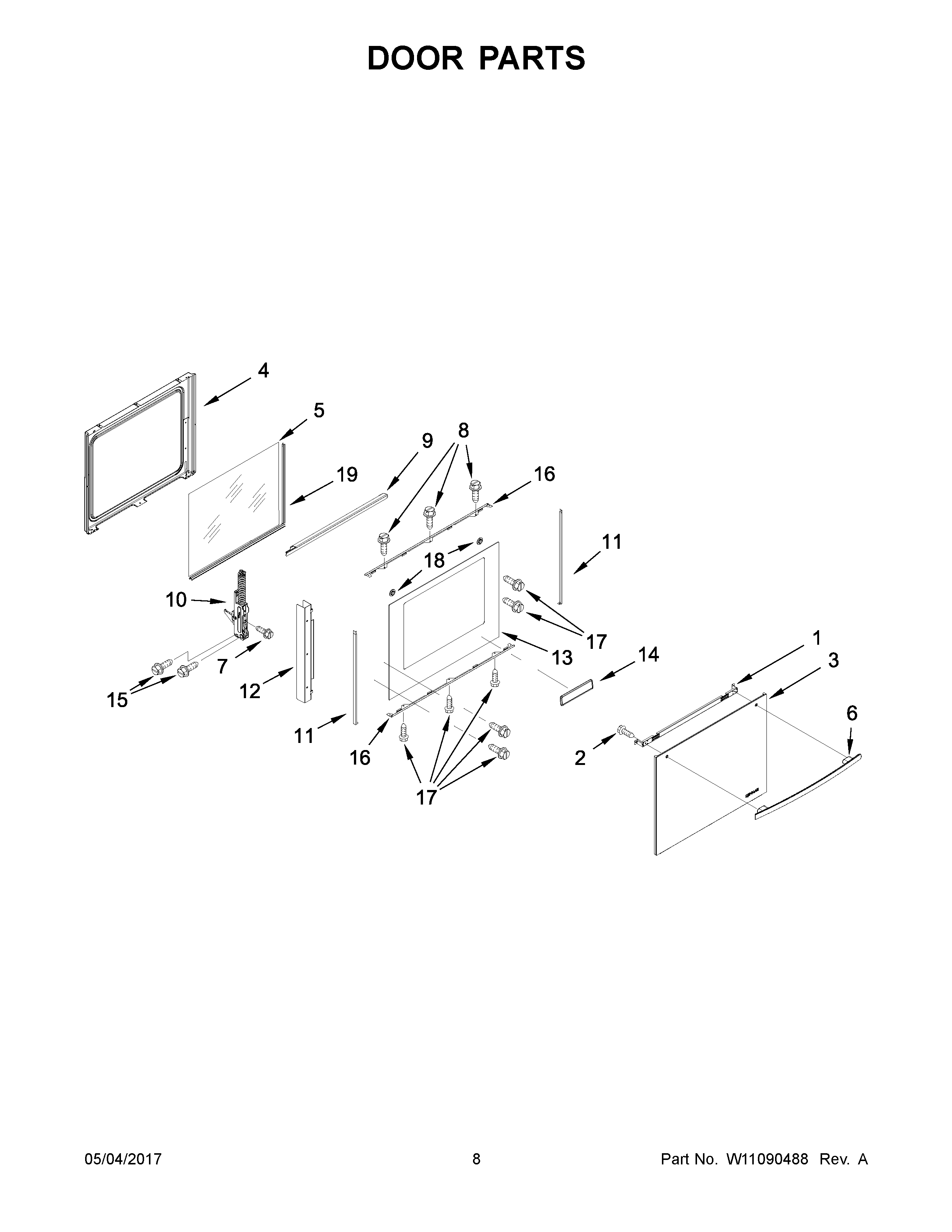

JGS1450FB0 05 – DOOR PARTS

Products

Position	Product
1	BRACKET, GLASS UPPER HANDLE
2	SCREW
3	DOOR, COMPLETE (STAINLESS)
4	LINER, DOOR
5	GLASS, INNER
6	ASSEMBLY, DOOR HANDLE (BLACK)
6A	ASSEMBLY, DOOR HANDLE (STAINLESS)
7	MAY W10031780
8	SCREW
9A	SCOOP, DOOR (STAINLESS)
9	SCOOP, DOOR (BLACK)
10A	HINGE, SLOW CLOSE
10	HINGE, SLOW CLOSE
11	TRIM, DOOR SIDE (BLACK)
12	RAIL, VERTICAL SUPPORT
13	ASSEMBLY, OUTER DOOR (BLACK)
14	ASSEMBLY, BADGE (BLACK)
14A	ASSEMBLY, BADGE (STAINLESS)
15	SCREW
16	RAIL, HORIZONTAL SUPPORT
17	SCREW
18	WASHER, DOOR
19	SPACER, GLASS
