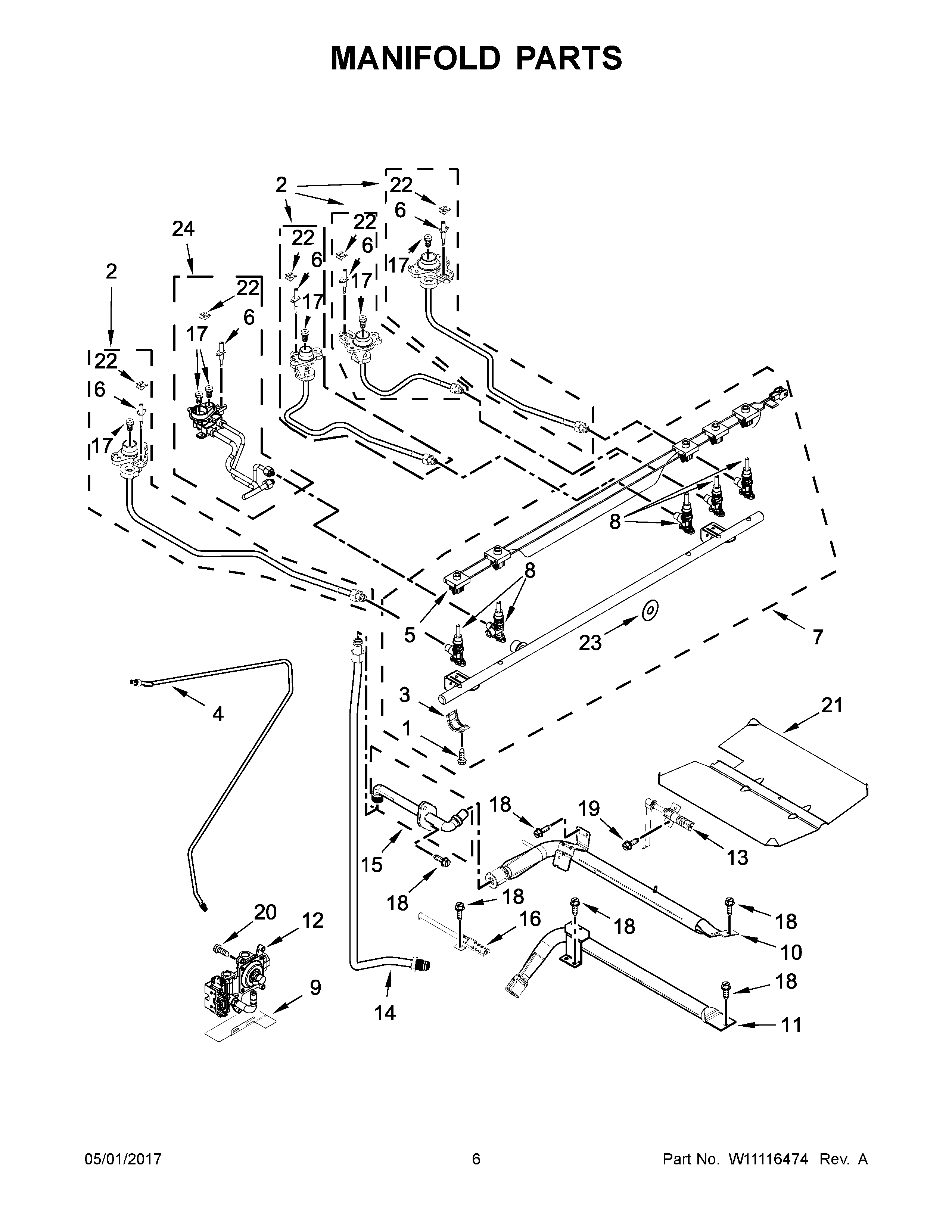

JGS1450FP0 04 – MANIFOLD PARTS

JGS1450FP0 04 – MANIFOLD PARTS

Written by

in

JGS1450FP0 04 – MANIFOLD PARTS

Products

PositionProduct
NIKIT, LP CONVERSION
NIMAY W10566535
NILINER (NOT A SERVICEABLE PART)
1SCREW
2CMAY W10552137
2MAY W10552131
2AMAY W10552130
2BMAY W10552132
3BRACKET, SADDLE VALVE
4MAY W10432252
5MAY W10468433
6BMAY W10464799
6CMAY W10496874
6MAY W10496872
6AELECTRODE (RIGHT FRONT & CENTER)
7ASSEMBLY, MANIFOLD
8BVALVE, GAS (LEFT REAR)
8CMAY W10566038
8VALVE, GAS (RIGHT REAR & CENTER)
8AVALVE, GAS (RIGHT FRONT)
9BRACKET, AEGIS
10MAY W10439242
11MAY W10680035
12MAY W10554066
13ELECTRODE, BAKE
14MAY W10306050
15FITTING, BROIL BURNER
16ELECTRODE, BROIL
17EMAY W10515054
17AORIFICE (RIGHT REAR)
17CORIFICE (LEFT FRONT)
17ORIFICE (RIGHT FRONT)
17BORIFICE (LF-LOW)
17DORIFICE (8K) (CENTER)
18SCREW
19SCREW
20SCREW
21MAY 3601P336-45
22CLIP, SPRING ELECTRODE
23SEAL, SWITCH SHAFT
24ASSEMBLY, ORIFICE (19K)
