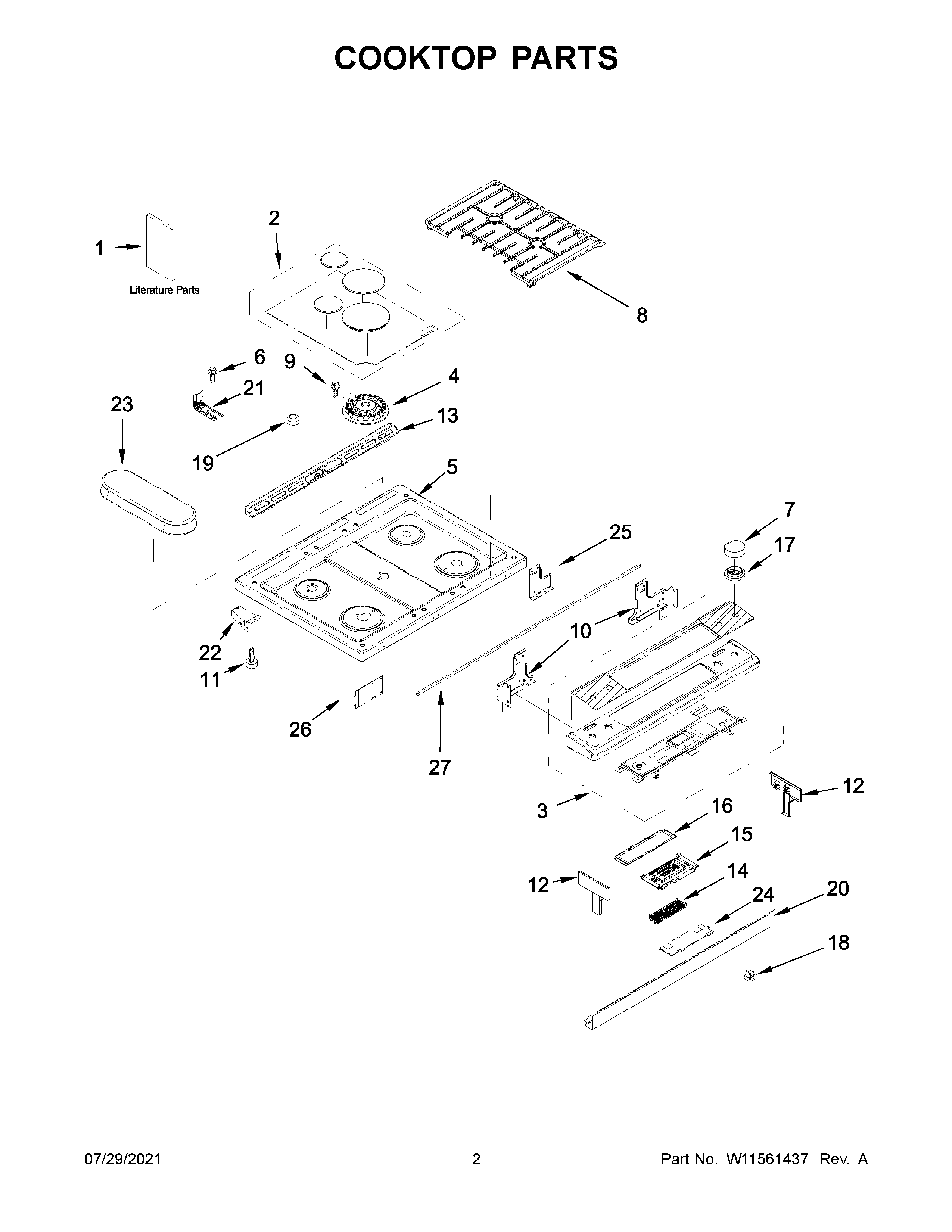

JGS1450FS1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNS-WIRE
NI	W10432544 Whirlpool Range Griddle
NI	INSULATION, VENT TRIM
NI	W11025616 Whirlpool Wire Harness
NI	W10580265 Whirlpool Wire Harness
NI	W10580229 Whirlpool Grounding Wire
NI	3196896 Whirlpool Clip
NI	W11176109 Whirlpool Wire Harness
NI	W11198972 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1A	USE AND CARE GUIDE
1B	TECH SHEET
1D	QUICK START GUIDE (FRENCH)
1C	GUIDE, QUICK START
1	INSTRUCTIONS, INSTALLATION
2	W11244067 Whirlpool Burner Cap
3	W10911397 Whirlpool Control Panel
4C	W10556380 Whirlpool Burner Head
4B	W10556379 Whirlpool Burner Head
4A	W10556377 Whirlpool Head Burner
4	W11238353 Whirlpool Burner Head
5	W10797526 Whirlpool Cooktop
6	SCREW, ANTI-TIP KIT
7	WPW10505764 Whirlpool Knob
8	W11228127 Whirlpool Grate Kit
9	WP3196557 Whirlpool Screw
10A	W10289169 Whirlpool Bracket Support
10	W10289170 Whirlpool Support Bracket
11	GLIDE, MAIN TOP
12A	W10557754 Whirlpool Endcap Panel
12	W10557751 Whirlpool Panel End Cap
13	W10577782 Whirlpool Vent Trim Assembly
14	W11297271-includeCORE Whirlpool W11297271 Refrigerator Control Board + Core
15	W11120573 Whirlpool Range Power Board
16	W10557780 Whirlpool Bracket Mounting
17	BEZEL-KNOB
18	W11025100 Whirlpool Insert
19	W11104127 Whirlpool Bumper Assembly
20	W10565662 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	W10556376 Whirlpool Burner Head
24	W10558372 Whirlpool Bracket Mounting
25	W10598048 Whirlpool Support Bracket
26	SHIELD, KEYPAD
27	W10802441 Whirlpool Gasket
