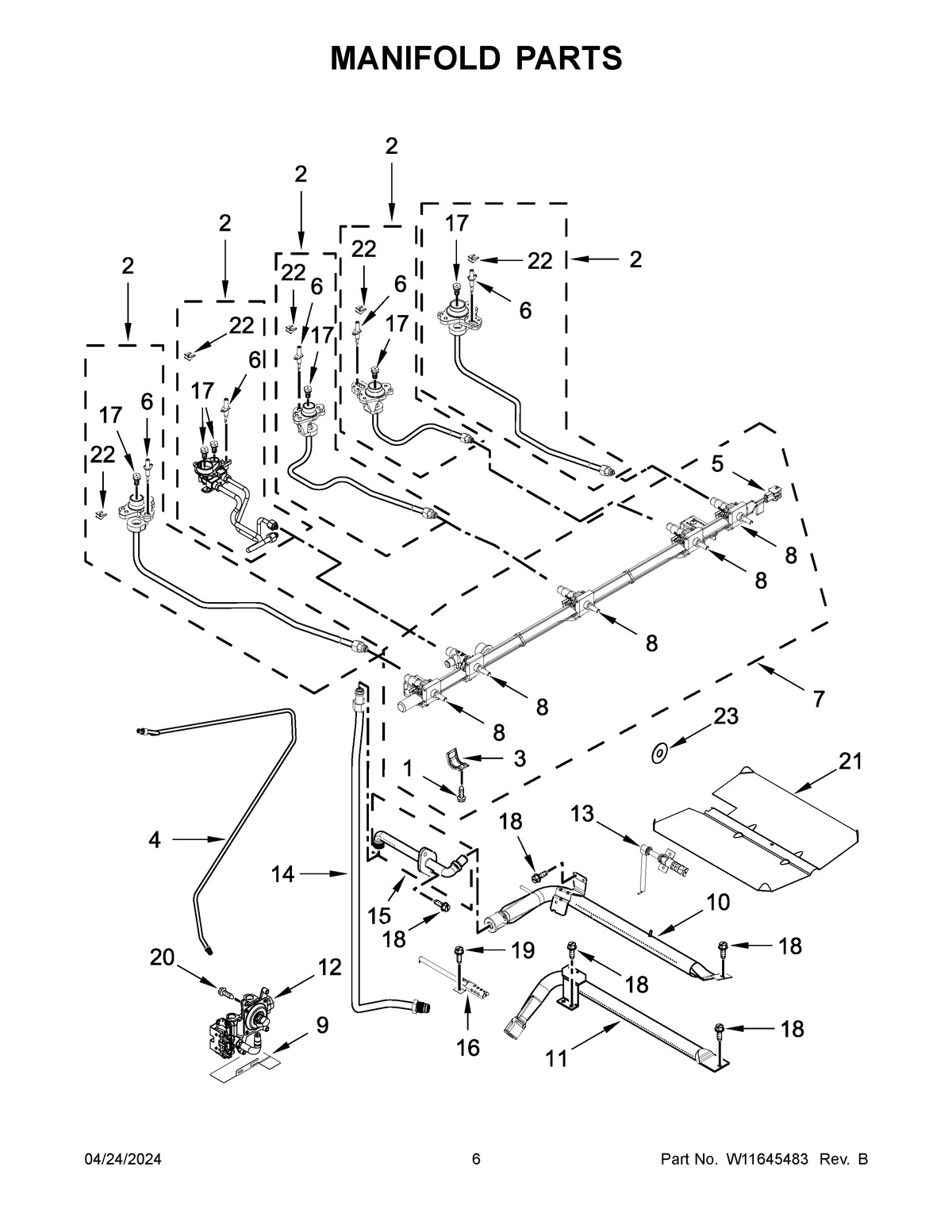

JGS1450ML0 04 – MANIFOLD PARTS

Products

Position	Product
NI	W11087486 Whirlpool Spud Orifice
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11436985 Whirlpool Orifice Spud
NI	WPW10182767 Whirlpool Wire Tie
1	W11577790 Whirlpool Screw Assembly
2A	ORIFICE, ASSEMBLY (LEFT REAR)
2B	ASSEMBLY, ORIFICE (15K) (RIGHT FRONT)
2C	ASSEMBLY, ORIFICE (9.2K) (RIGHT REAR)
2D	ASSEMBLY, ORIFICE (8K) (CENTER)
2	W11186511 Whirlpool Holder Orifice
3	W10949105 Whirlpool Mounting Bracket
4	W10432252 Whirlpool Gas Tubing
5	W11596366 Whirlpool Wire Harness
6C	W11661897 Whirlpool Range Surface Igniter
6B	W11643126 Whirlpool Surface Igniter
6A	W11666003 Whirlpool Range Surface Igniter
6	W11675301 Whirlpool Range Surface Igniter
7	W11602206 Whirlpool Manufactured Pipe
8A	VALVE-BRNR
8C	W11620677 Whirlpool Burner Valve
8B	VALVE-BRNR
8	W11593170 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	W10861656 Whirlpool Regulator Assembly
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10583216 Whirlpool Fitting Assembly
16	WPW10333842 Whirlpool Oven Igniter
17E	ORIFICE (8K) (CENTER)
17C	W10849717 Whirlpool Orifice Spud
17B	W11677633 Whirlpool Spud Orifice
17A	ORIFICE (18K) (LEFT FRONT)
17	ORIFICE (1.45K) (LEFT FRONT)
17D	W10849714 Whirlpool Orifice Spud
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
21	BAFFLE, BROIL BURNER
22	W11684564 Whirlpool Clip Assembly
23	W11507167 Whirlpool Switch Seal
