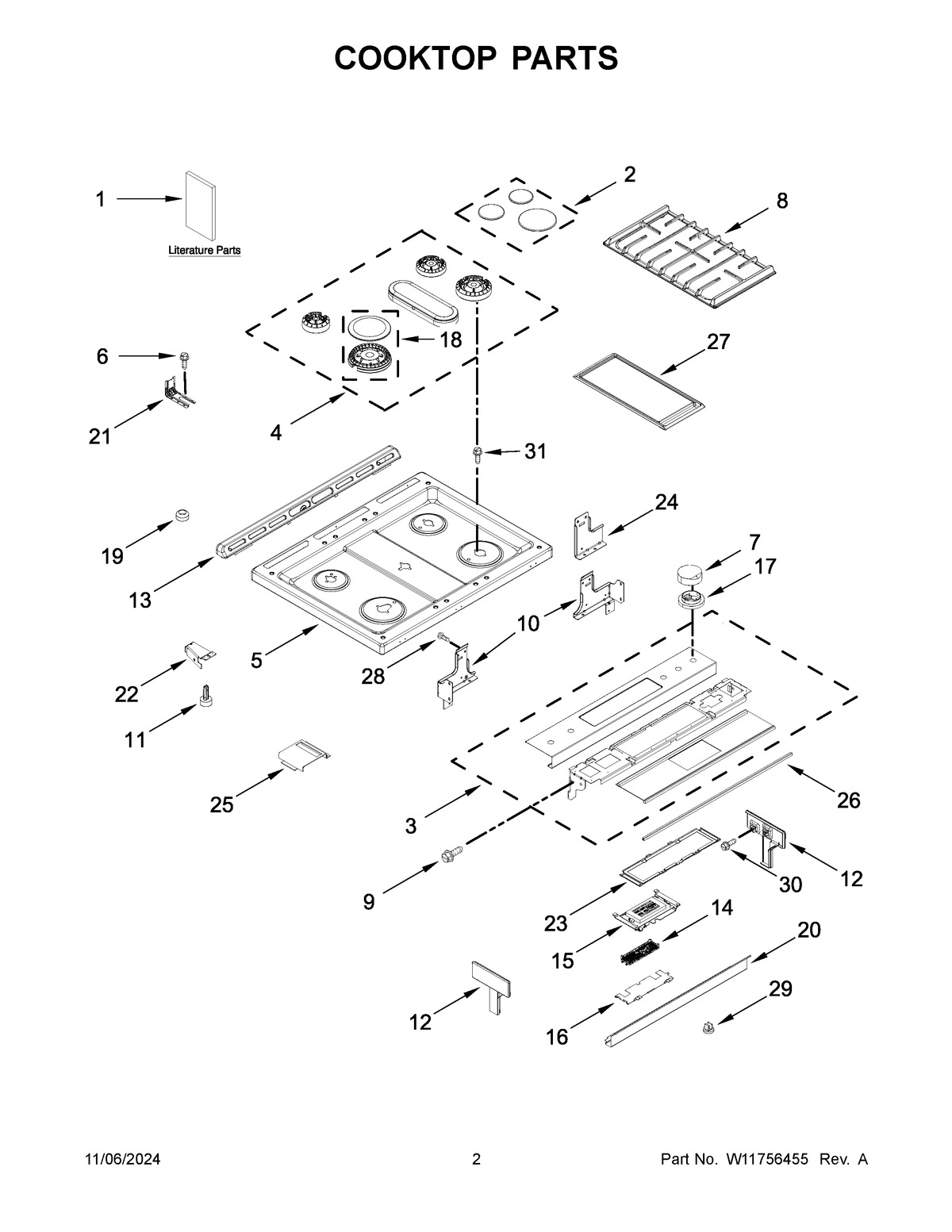

JGS1450ML2 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11025616 Whirlpool Wire Harness
NI	W10580229 Whirlpool Grounding Wire
NI	W11176109 Whirlpool Wire Harness
NI	W11198972 Whirlpool Wire Harness
NI	HARNS-WIRE
NI	HARNS-WIRE
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1C	QUICK START GUIDE
1	DIMENSION GUIDE
1A	OWNERS MANUAL
1B	TECH SHEET
2	W11605764 Whirlpool Burner Cap
3	W11647017 Whirlpool Control Panel
4	W11662377 Whirlpool Range Burner Head
5	COOKTOP (STAINLESS)
6	SCREW, ANTI-TIP KIT
7	KNOB (STAINLESS (ALL EXCEPT LEFT FRONT))
8	W11241056 Whirlpool Grate Kit
9	WP3196557 Whirlpool Screw
10A	BRACKET, SUPPORT (RIGHT)
10	BRACKET,SUPPORT (LEFT)
11	GLIDE, MAIN TOP
12A	W10557754 Whirlpool Endcap Panel
12	W10557751 Whirlpool Panel End Cap
13	W10577782 Whirlpool Vent Trim Assembly
14	W11647021-includeCORE Whirlpool W11647021 Refrigerator Electronic Control Board + Core
15	W11120573 Whirlpool Range Power Board
16	W10558372 Whirlpool Bracket Mounting
17	BEZEL-KNOB
18	W11443594 Whirlpool Burner Head
19	W11690600 Whirlpool Bumper
20	W10565662 Whirlpool Mounting Bracket
21	W11502257 Whirlpool Anchor Tip
22	W10162253 Whirlpool Mounting Bracket
22A	W10162252 Whirlpool Bracket Mounting
23	W10557780 Whirlpool Bracket Mounting
24	W10598048 Whirlpool Support Bracket
25	SHIELD, KEYPAD
26	GASKET, CONSOLE AND COOKTOP
27	W10432544 Whirlpool Range Griddle
28	WPW10067840 Whirlpool Screw
29	W11025100 Whirlpool Insert
30	W11245710 Whirlpool Refrigerator Screw
31	W11241230 Whirlpool Screw
