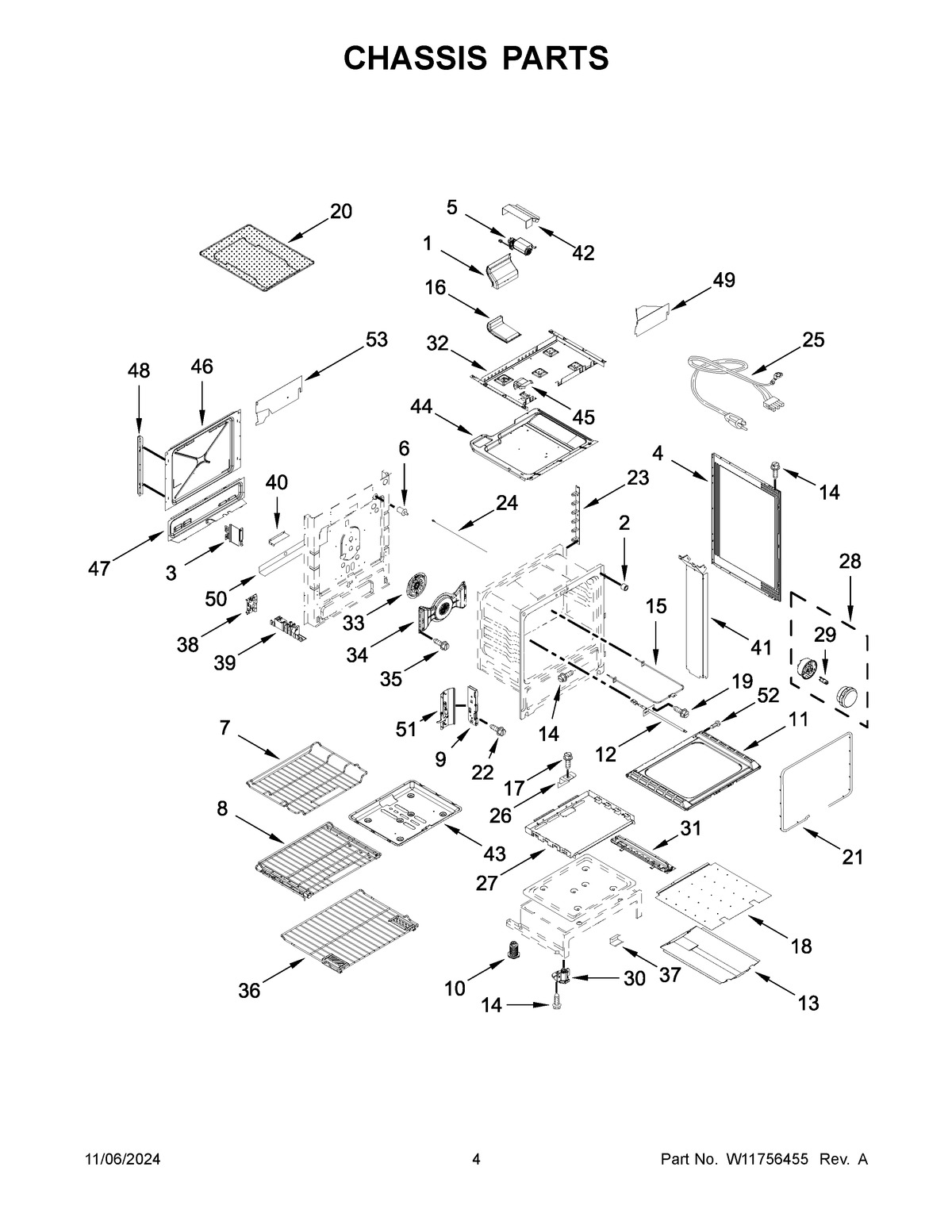

JGS1450ML2 03 – CHASSIS PARTS

JGS1450ML2 03 – CHASSIS PARTS

Written by

in

JGS1450ML2 03 – CHASSIS PARTS

Products

PositionProduct
NI3196896 Whirlpool Clip
NIINSULATION, VENT TRIM
NIW11688363 Whirlpool Insulation
NIWPW10400494 Whirlpool Orifice Assembly
NIINSULATION, STRAP
NIW11216991 Whirlpool Orifice
NIW11688567 Whirlpool Insulation Assembly
NIFOLLOWING PARTS NOT ILLUSTRATED
NICLAMP, WIRE
1W10614920 Whirlpool Oven Flue
2W10877054 Whirlpool Spacer Assembly
3W10273002 Whirlpool Support Bracket
4W11730303 Whirlpool Side Panel
5W11620737 Whirlpool Blower Fan
6SWTCH-LITE
7W11256463 Whirlpool Oven Rack
8W11225131 Whirlpool Oven Rack
9W10634238 Whirlpool Receiver Hinge
10WPW10058460 Whirlpool Appliance Levelling Leg
11WPW10211368 Whirlpool Oven Bottom
12SENSOR-RANGE
13BAFFLE, BAKE BURNER
15W10552502 Whirlpool Broil Element
16W11243157 Whirlpool Oven Flue
18W10323077 Whirlpool Burner Baffle
19SCREW
20W11692811 Whirlpool Fryer Basket
21W11562931 Whirlpool Door Gasket
22W10777162 Whirlpool Screw
23W10603482 Whirlpool Oven Rack
24W11370463 Whirlpool Door Rod Assembly
25W10889764 Whirlpool Power Cord
26W10035900 Whirlpool Support Bracket
27W10541959 Whirlpool Heat Shield Assembly
28W11707255 Whirlpool Light
29BULB-LIGHT
30WPW10341186 Whirlpool Refrigerator Front Levelling Leg
31AWPW10306546 Whirlpool Base Rail
32W11320442 Whirlpool Burner Box
33W11441001 Whirlpool Convection Fan
34W10554262 Whirlpool Baffle Assembly
36W11699908 Whirlpool Rack
37W10137382 Whirlpool Clip
38W10860916 Whirlpool Spark Module
39W11703692 Whirlpool Speaker Module
40W10655451 Whirlpool Spill Guard
41W10162254 Whirlpool Air Duct
42W10162255 Whirlpool Exhaust Cover
43W11379356 Whirlpool Hidden Pan Assembly
44W10289168 Whirlpool Burner Box
45W10162257 Whirlpool HVAC Air Duct
46W11379354 Whirlpool Rear Cover
47W10162249 Whirlpool Wire Cover
48W10162241 Whirlpool Channel
49W10818358 Whirlpool Shield
50W10435470 Whirlpool Brace
51W10605411 Whirlpool Hinge
52W10516115 Whirlpool Screw
53W11117035 Whirlpool Shield
