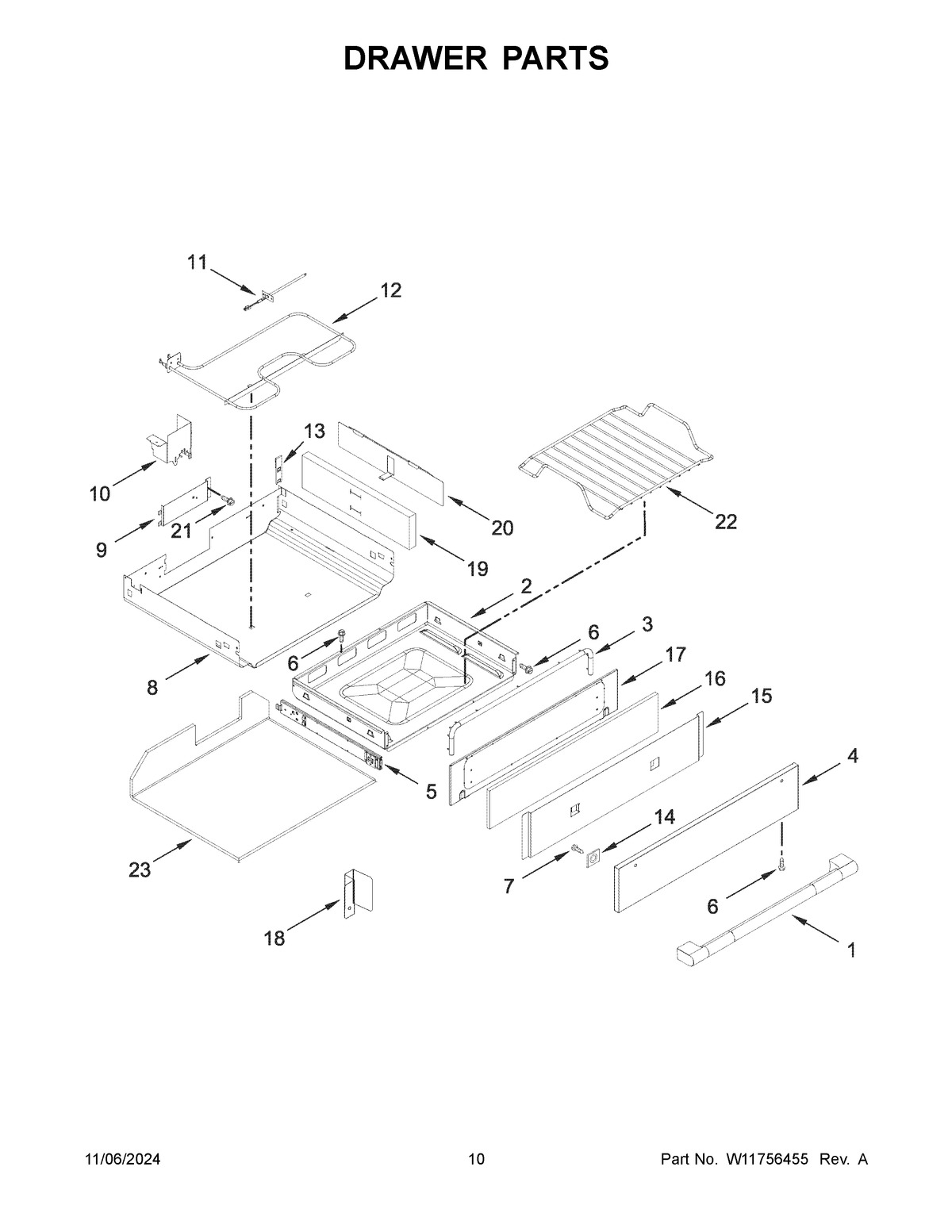

JGS1450ML2 06 – DRAWER PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11688782 Whirlpool Insulation
NI	INSULATION, RETAINER BAKE DRAWER
1	ASSEMBLY, DOOR HANDLE (STAINLESS)
2	W11036176 Whirlpool Utility Drawer
3	W10550987 Whirlpool Door Seal
4	W10541958 Whirlpool Drawer Panel
5A	W11670723 Whirlpool Drawer Slide
5	W11670722 Whirlpool Drawer Slide
6	WP355214 Whirlpool Screw
7	WP8533988 Whirlpool Screw Fastener
8	W10634260 Whirlpool Utility Drawer
9	COVER, GAS VALVE
10	W10634259 Whirlpool Wire Cover
11	SENSOR-RANGE
12	W10541944 Whirlpool Bake Element
13	W10551019 Whirlpool Clip
14	SPACER, HANDLE
15	W10551018 Whirlpool Drawer Panel
16	W11688515 Whirlpool Insulation Assembly
17	W10541947 Whirlpool Drawer Panel
18	SHIELD, CORNER
19	INSULATION, DRAWER SIDE
20	W10550985 Whirlpool Retainer
21	WP3196557 Whirlpool Screw
22	W10602493 Whirlpool Oven Rack
23	W11688775 Whirlpool Insulation
