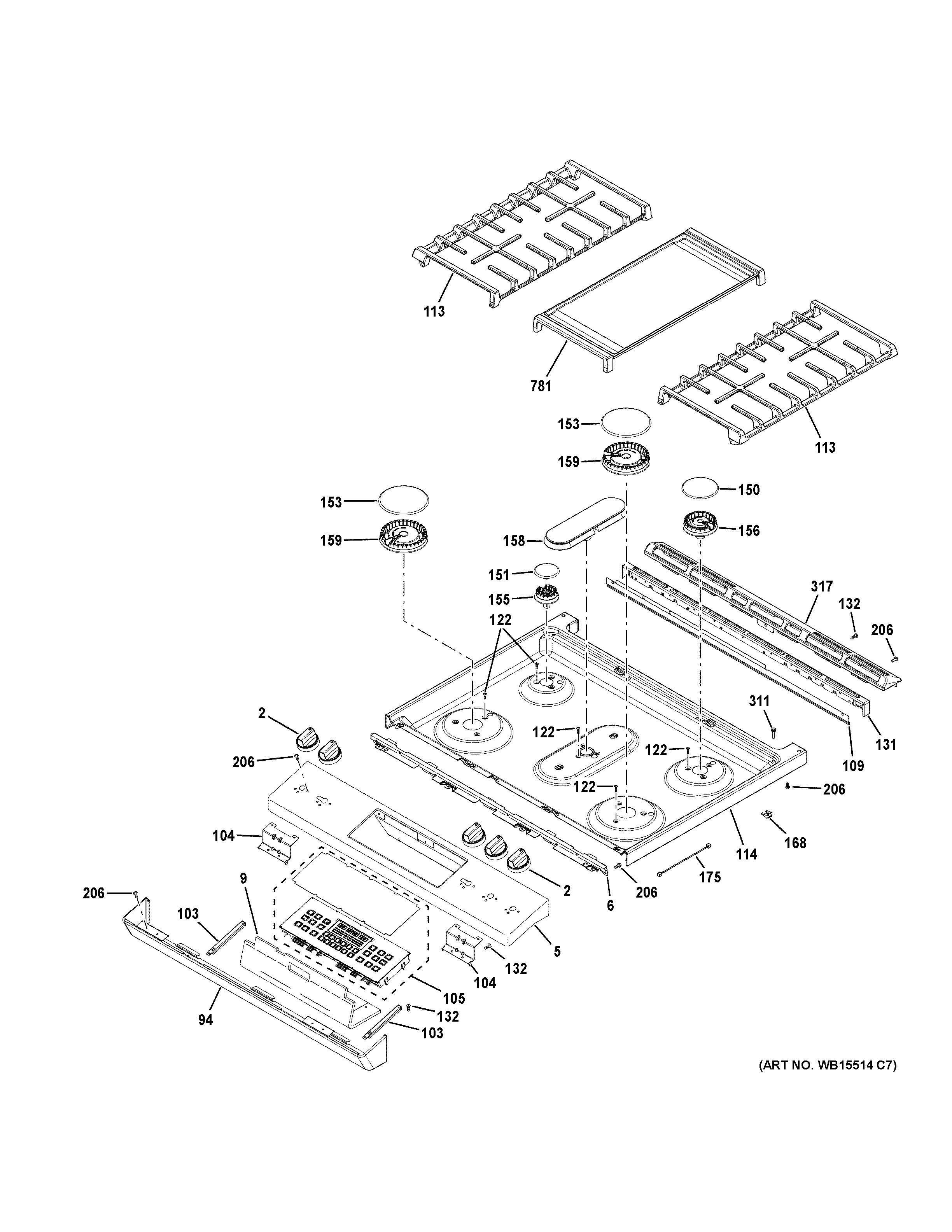

JGS760DEL3WW CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB03X28131 GE Oven Knob Assembly
5	PANEL MANIFOLD UPPER
6	PANEL COMPLEMENT
9	WB35X28981 GE Oven Control Housing Insulation
94	MANIFOLD PANEL LOWER
103	WB34X28235 GE Bracket Assembly
104	WB34X28238 GE Bracket
105	WB27X32211 GE White Control Overlay
109	WB34X28912 GE Oven Backguard Component
113	WB31X28755 GE Oven Grate Assembly
114	WB62X28230 GE Range Top
122	WB01X24735 GE Oven CKT Screw
131	WB07X28822 GE Oven Trim Kit
132	WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
153	CAP BURNER ASM (15K)
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24724 GE Oven Medium Burner
158	WB16K10076 GE Oven Oval Burner Assembly
159	WB16X24722 GE Oven Gas Range XL Surface Burner
168	WB02X24976 GE Oven Igniter Clip V2
175	HARNESS GROUND
206	WB01X26995 GE Oven Screw 8-18 AB X 5/16
311	BUMPER
317	WB07X28819 GE Oven Vent Trim
781	GRIDDLE
