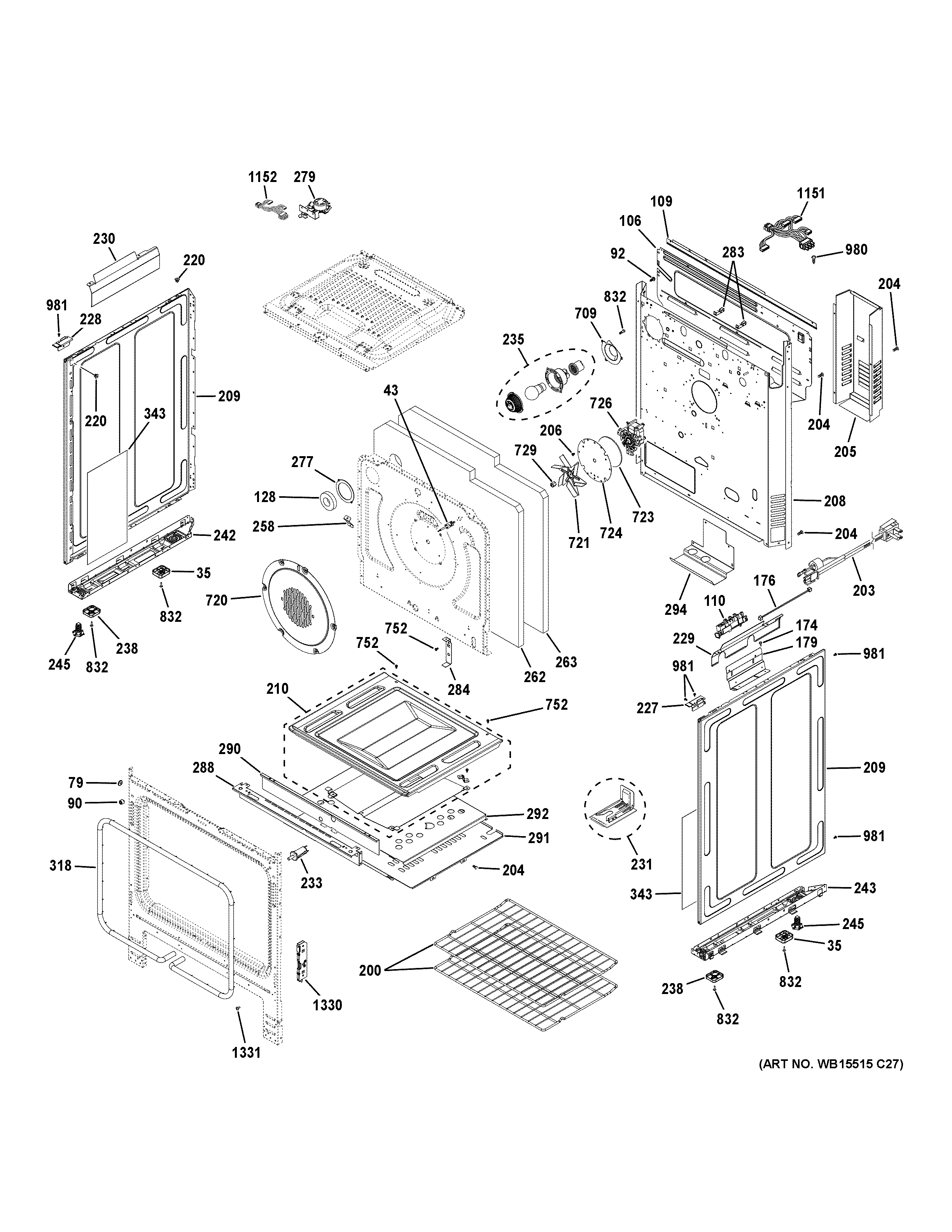

JGS760DP3BB BODY PARTS

JGS760DP3BB BODY PARTS

Written by

in

JGS760DP3BB BODY PARTS

Products

PositionProduct
35WB16X20449 GE Oven Base Spacer
43WB24X25557 GE Oven Sensor Assembly
79SPACER SIDE
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
106COVER BACK
109WB34X28912 GE Oven Backguard Component
110WB13X24741 GE Oven Spark Module
128LAMP INSULATION
174WB01X31119 GE Screw 8-18
176WB18X25597 GE Ground Harness
179WB34X36828 GE Spark Module Bracket
200OVEN RACK
203WB18X28854 GE Oven Line Cord
204WB1K5062 GE Oven Screw
205WB34K10097 GE Oven Motor Cover
206WB01X26995 GE Oven Screw 8-18 AB X 5/16
208WB63X28974 GE Back
209WB56X28849 GE Oven Side Panel
210WB35X37968 GE Heat Shield
220GEN WB02K0008
227FRONT SUPPORT RH
228FRONT SUPPORT LH
229DIVERTER
230DIVERTER
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
238WB16X20448 GE Oven Spacer Base
242WB63X20216 GE Oven Support Base
243WB63X20215 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
258BRACE VENT
262WB35X28785 GE Oven Back Insulation
263WB35X28787 GE Oven Back Insulation
277WB32K10044 GE Oven Light Gasket
279WB10X28793 GE Oven Automatic Latch
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
288BRACE
290GEN WB34K0012
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
294GEN WB63K10040
318WB32X29539 GE Oven Gasket Assembly
343WB35X26892 GE Oven Side Panel Foil
709WB08K10018 GE Range Light Cover
720WB34X28703 GE Oven Fan Cover
721WB2X8351 GE Oven Blade Fan
723WB35K10013 GE Fan Insulation
724WB02K10034 GE Range Fan Support
726WB26X28953 GE Oven Convection Fan Motor
729WB02T10017 GE Oven Nut
752WZ4X345D GE Screw Package 12 C92
832WR01X10065 GE Screw
980SCREW
981WB01K10091 GE Oven Screw
1151HARNESS MAIN
1152WB18X28893 GE Latch Harness
1330WB10X28563 GE Oven Receiver Hinge
1331WB01T10008 GE Oven Screw 10-32
