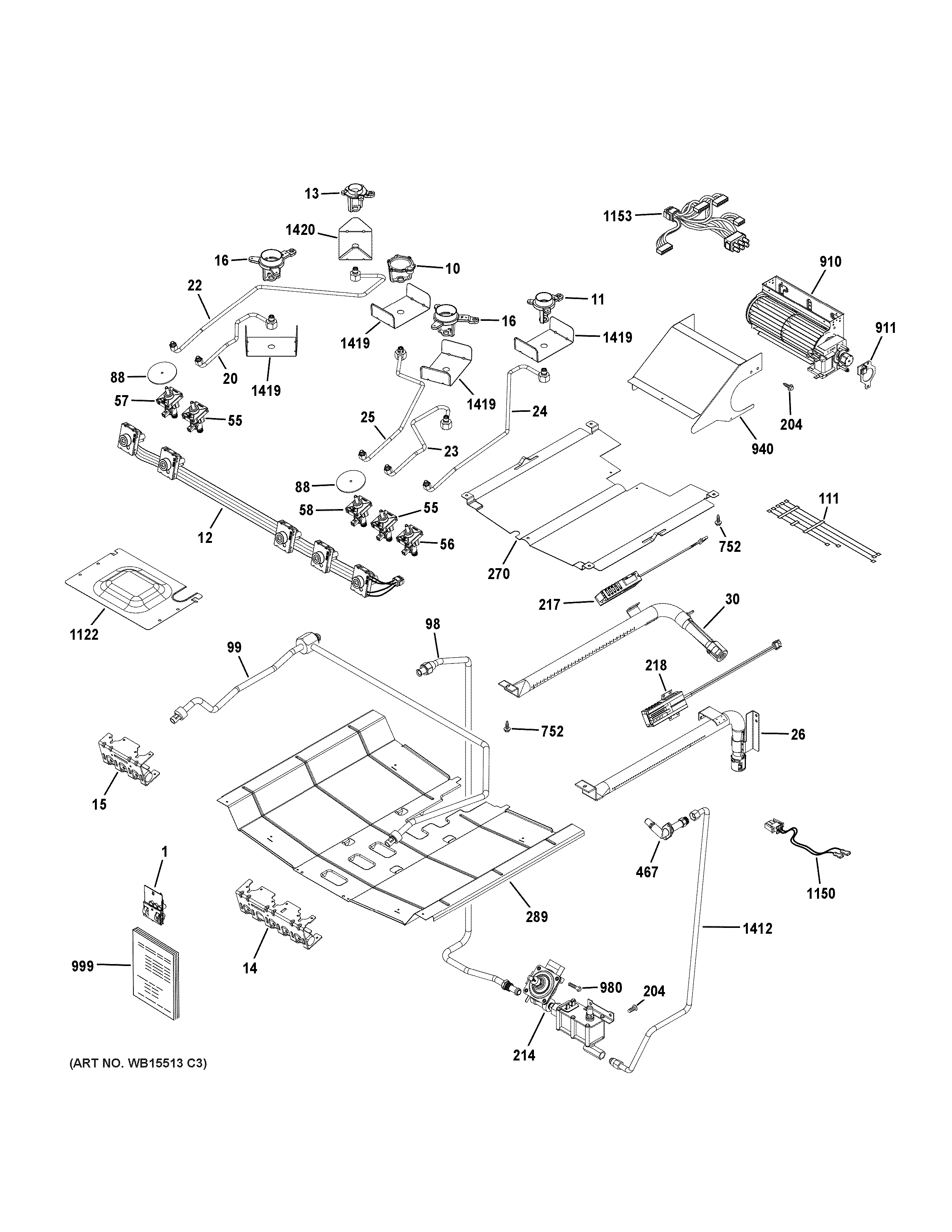

JGS760EEL4ES GAS & BURNER PARTS

JGS760EEL4ES GAS & BURNER PARTS

Written by

in

JGS760EEL4ES GAS & BURNER PARTS

Products

PositionProduct
1WB28X29255 GE Range LP High Altitude Kit
1WB28X29254 GE Range Natural Gas High Altitude Kit
1WB28X39135 GE LP Conversion Kit
1LABEL WIRE DIAGRAM
10WB02K10360 GE Oven Circuit Bracket Small
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12WB18X46772 GE Harness Switch Assembly
13WB02X24728 GE Range Small Injector
14WB28X43250 GE Pipe Manifold Assembly
15WB28X28204 GE Manifold Pipe Assembly
16WB02X24725 GE Oven Inlet XLV2
20WB28X28866 GE Oven Left Orifice Holder
22WB28X28142 GE Oven Left Rear Orifice Holder
23WB28X28144 GE Oven Right Front Orifice Holder
24WB28X28147 GE Oven Right Rear Orifice Holder
25WB16X28686 GE Oven Center Orifice Holder
26WB16X28250 GE Oven Bake Burner
30WB16X28251 GE Range Broil Burner
55VALVE BURNER 270
56VALVE BURNER 270
57WB21X25979 GE Oven Burner Valve 270
58WB21X20471 GE Oven Burner Valve
88WB35X21708 GE Valve Seal
98WB28X28151 GE Range Burner Supply Tube Box
99WB28X28158 GE Manifold Supply Tube
111WB18X33922 GE Electrode Harness and Top HV
204WB1K5062 GE Oven Screw
214VALVE CONTROL ASM
217WB13X24755 GE Broil Igniter Glow Bar
218IGNITER GLOWBAR
270WB34X28689 GE Deflector
289WB34K10086 GE Oven Lower Heat Shield
467WB28X28697 GE Oven 90-Degree Elbow Assembly
752WZ4X345D GE Screw Package 12 C92
910WB26X32571 GE Range Tangential Blower
911WB27X28659 GE Oven Sensor Board
940WB34X28735 GE Oven Fan Support
980SCREW
999PM GAS QUICK GUIDE
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM ONLINE OWNERS MANUAL
1122GEN WB34X21710
1150WB18X28724 GE Drawer Harness
1153WB18X31604 GE Oven Blower Harness
1412WB28X24773 GE Oven Burner Supply Tube
1419WB02X28653 GE Air Deviator
1420WB02X28652 GE Air Deviator
