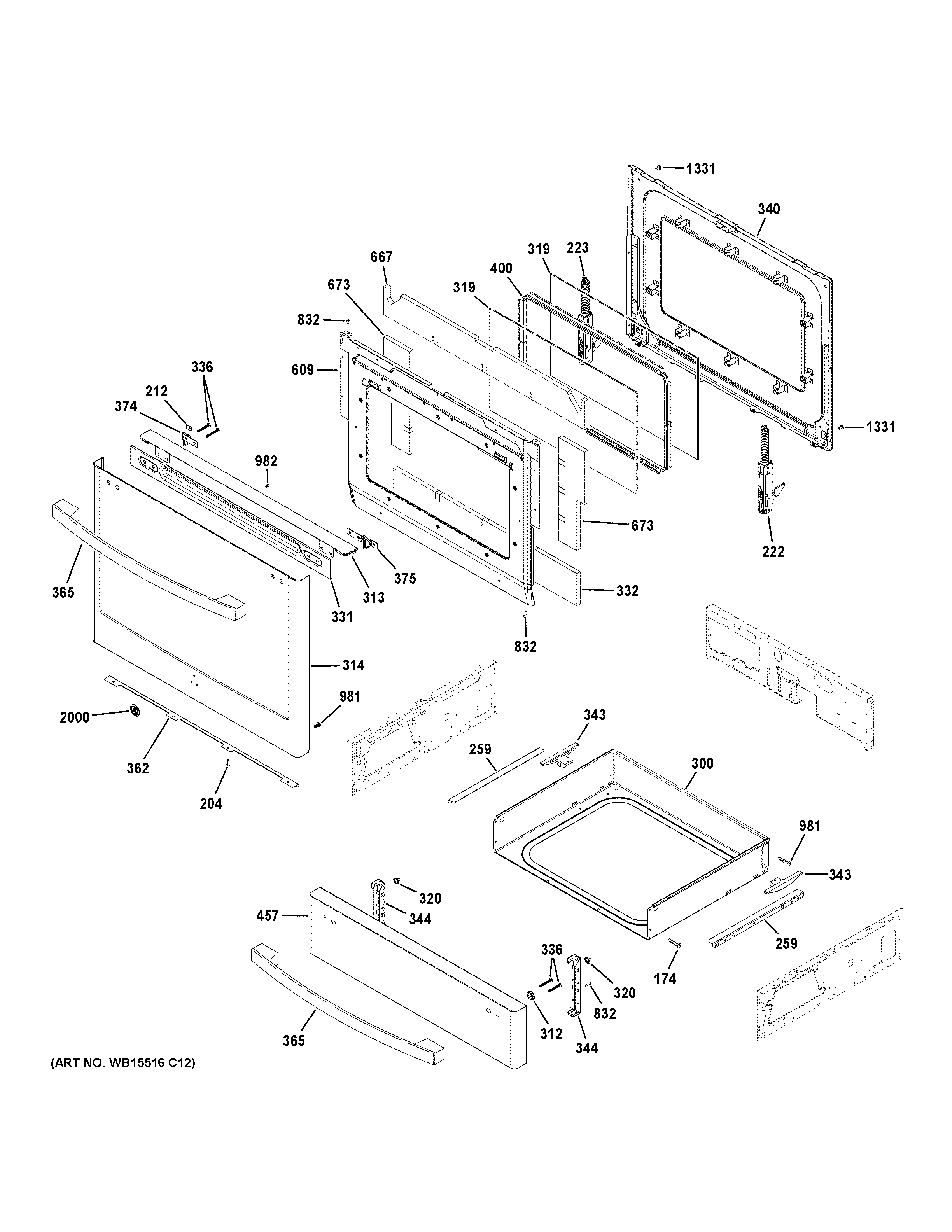

JGS760EP5ES DOOR & DRAWER PARTS

JGS760EP5ES DOOR & DRAWER PARTS

Written by

in

JGS760EP5ES DOOR & DRAWER PARTS

Products

PositionProduct
174WB01X31119 GE Screw 8-18
204WB1K5062 GE Oven Screw
212WB1K2 GE Oven Speednut
222WB10X26766 GE Oven Door Hinge
223WB10X24776 GE Oven Door Hinge
259WB39K16 GE Oven Drawer Rail
300WB49X26422 GE Oven Drawer Body Assembly
312WB02X32440 GE Washer Contoured
313WB34X28682 GE Oven Vent Trim Cover
314WB56X28184 GE Oven Glass & Panel Door Assembly
319WB57K10174 GE Range Crystal Window Door
320WB01K10023 GE Oven Grommet Handle
331WB56X28193 GE Oven Glass Door Backer
332WB35K10221 GE Range Insulation
336WB02X32442 GE Screw 10-24
340WB56X24760 GE Range Door Liner
343WB02X26847 GE Range Drawer Glider
344WB02X24742 GE Oven Drawer Bracket
362WB07X28885 GE Range Barrier Door
365WB15X35050 GE Stainless Steel Handle
374WB02X24743 GE Handle Bracket
375WB02X24744 GE Handle Bracket
400WB34X28742 GE Window Frame Assembly
457PANEL DRAWER
609WB34X24749 GE Door Guard
667WB35X20077 GE Door Insulation
673WB35K10222 GE Oven Insulation
832WR01X10065 GE Screw
981WB01K10091 GE Oven Screw
982GEN WB01K0078
1331WB01T10008 GE Oven Screw 10-32
2000WB02X29479 GE Oven Badge Assembly
