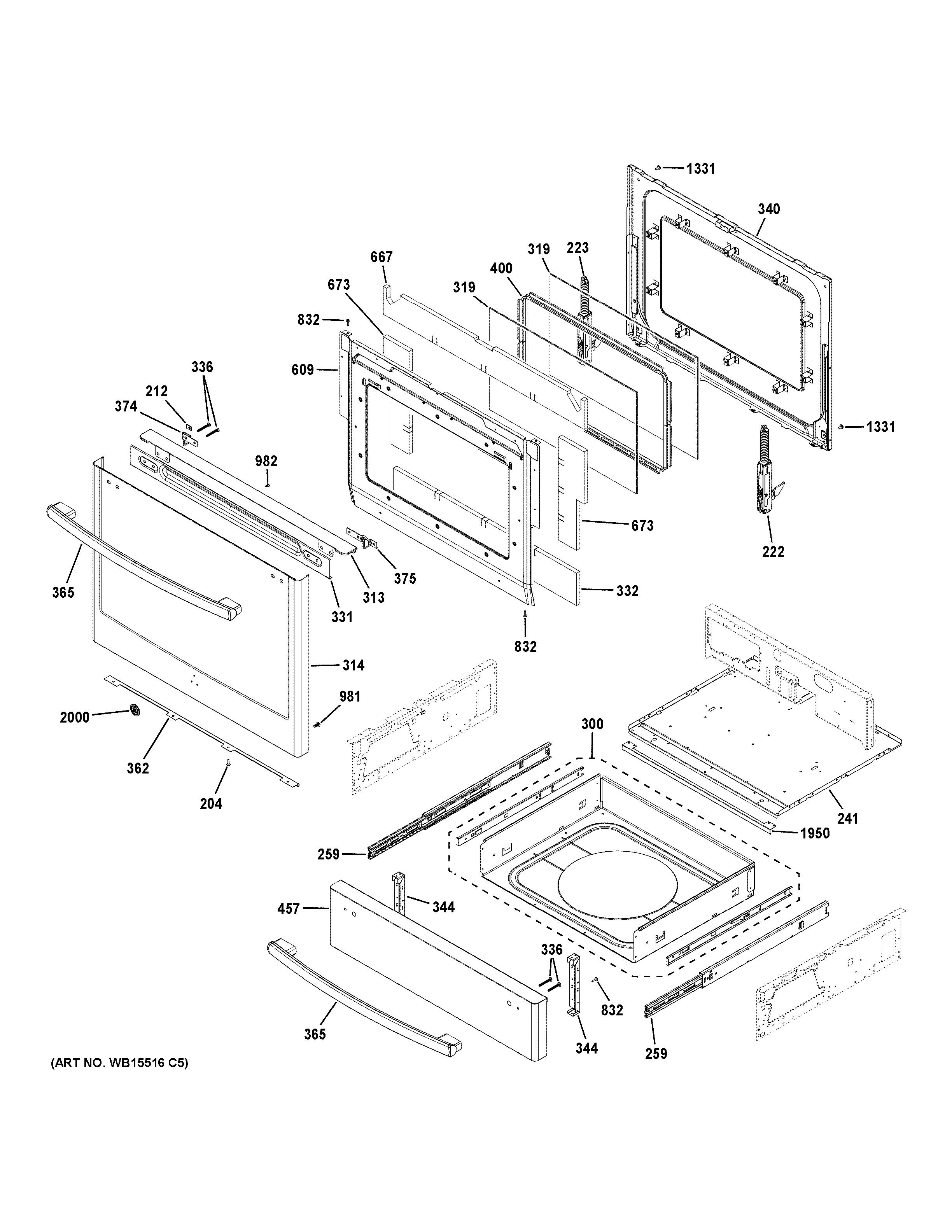

JGS760FEL1DS DOOR & DRAWER PARTS

JGS760FEL1DS DOOR & DRAWER PARTS

Written by

in

JGS760FEL1DS DOOR & DRAWER PARTS

Products

PositionProduct
204WB1K5062 GE Oven Screw
212WB1K2 GE Oven Speednut
222WB10X26766 GE Oven Door Hinge
223WB10X24776 GE Oven Door Hinge
241GEN WB63K10041
259WB39K10021 GE Oven Left Drawer Slide Assembly
259WB39K10020 GE Oven Right Drawer Slide Assembly
300WB49X26562 GE Oven Drawer Body Assembly Kit
313WB34X28682 GE Oven Vent Trim Cover
314WB56X30821 GE Door Assembly with Glass and Panel
319WB57K10174 GE Range Crystal Window Door
331WB56X28193 GE Oven Glass Door Backer
332WB35K10221 GE Range Insulation
336WB02X32442 GE Screw 10-24
340WB56X24760 GE Range Door Liner
344WB02X24742 GE Oven Drawer Bracket
362WB07X28885 GE Range Barrier Door
365WB15X28756 GE Oven Handle and Endcap Assembly
374WB02X24743 GE Handle Bracket
375WB02X24744 GE Handle Bracket
400WB34X28742 GE Window Frame Assembly
457WB56X30815 GE Drawer Panel
609WB34X24749 GE Door Guard
667WB35X20077 GE Door Insulation
673WB35K10222 GE Oven Insulation
832WR01X10065 GE Screw
981WB01K10091 GE Oven Screw
982GEN WB01K0078
1331WB01T10008 GE Oven Screw 10-32
1950WB01K10072 GE Oven Front Bottom Trim
2000WB02X29637 GE Oven Badge Assembly
