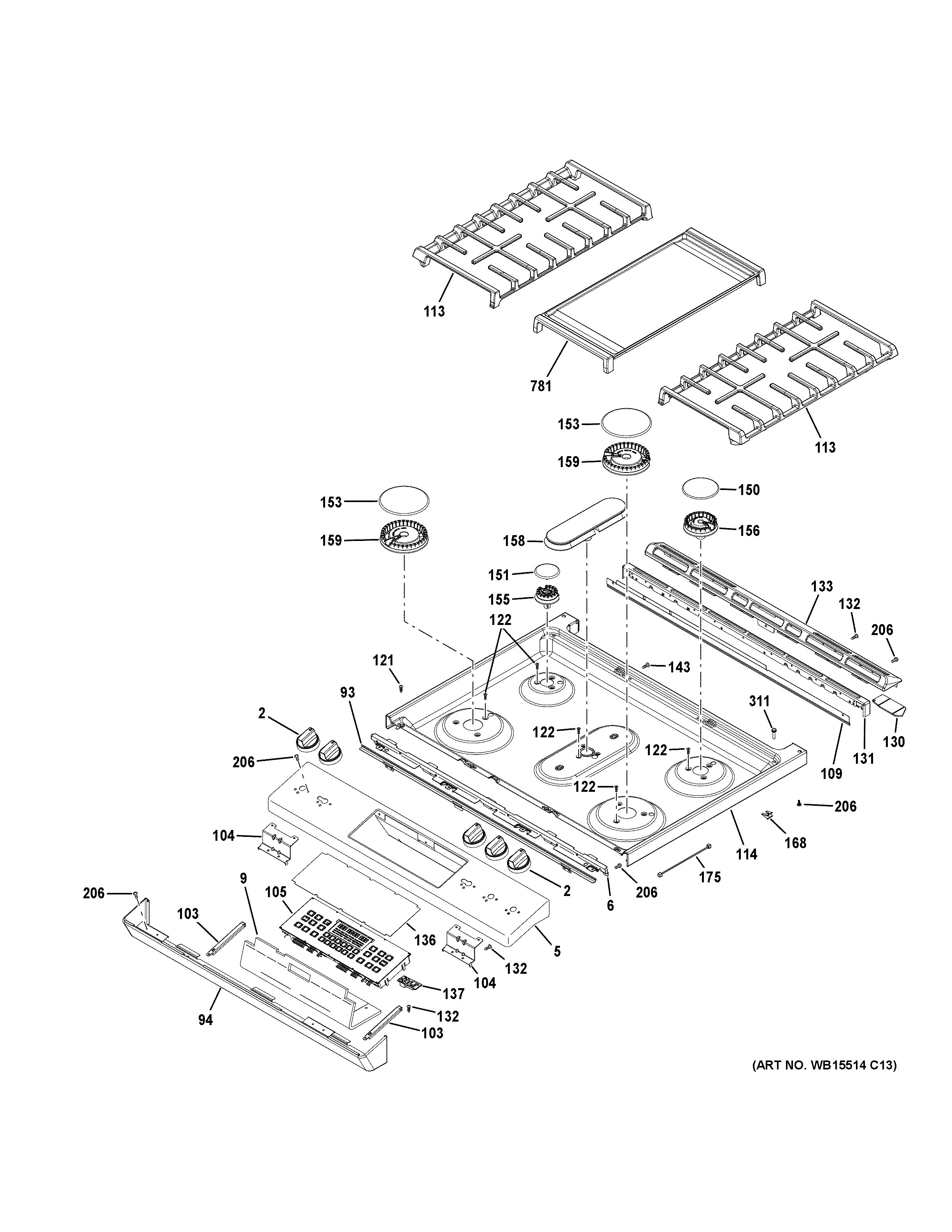

JGS760FP5DS CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB03X28132 GE Oven Knob Assembly
5	DARK SLATE PANEL MANIFOLD UPPER
6	WB36X28810 GE Panel Complement
9	WB35X28981 GE Oven Control Housing Insulation
93	WB36X28858 GE Manifold Panel
94	WB36X29269 GE Oven Lower Manifold Panel
103	WB34X28235 GE Bracket Assembly
104	WB34X28238 GE Bracket
105	RC19 CONTROL (FLASHED)
109	WB34X28912 GE Oven Backguard Component
113	WB31X28755 GE Oven Grate Assembly
114	WB62X28233 GE Range Top
121	SCREW MTG END CAP
122	WB01X24735 GE Oven CKT Screw
130	WB35X41087 GE Spill Gasket
131	WB07X28825 GE Oven Trim Kit
132	WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
133	WB07X28819 GE Oven Vent Trim
136	WB07X41933 GE Overlay
137	GEA3 WIFI/BLE BOARD W/INSTRUCT
143	WB1K5119 GE Oven Screw
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
153	CAP BURNER ASM (15K)
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24724 GE Oven Medium Burner
158	WB16K10076 GE Oven Oval Burner Assembly
159	WB16X24722 GE Oven Gas Range XL Surface Burner
168	WB02X24976 GE Oven Igniter Clip V2
175	WB18X27594 GE Ground Harness
206	WB01X26995 GE Oven Screw 8-18 AB X 5/16
311	BUMPER
781	GRIDDLE
