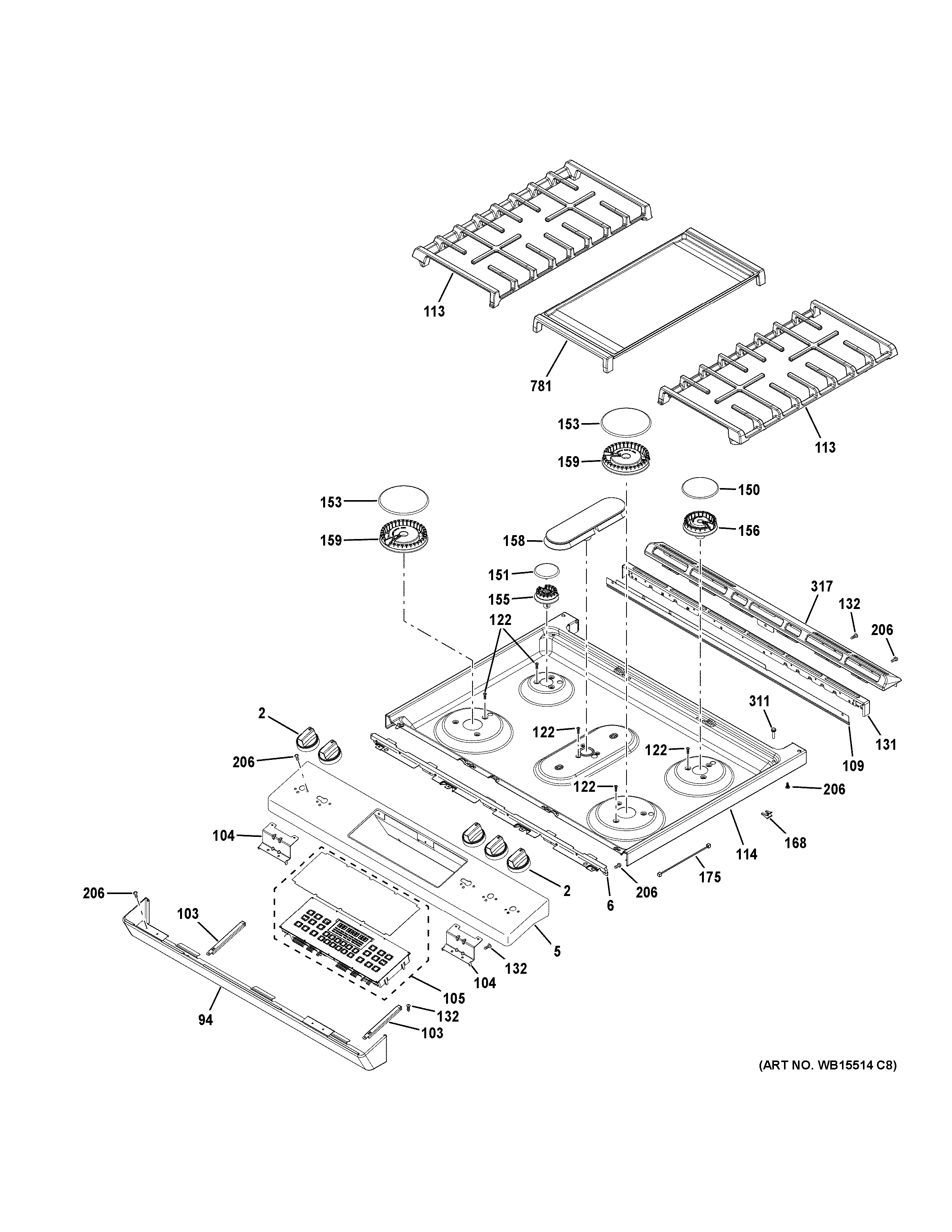

JGS760SEL2SS CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB03X42210 GE Burner Knob Stainless Steel
5	MANIFOLD PANEL UPPER
6	WB36X28810 GE Panel Complement
94	WB36X28207 GE Lower Manifold Panel
103	WB34X28235 GE Bracket Assembly
104	WB34X28238 GE Bracket
105	WB27X32209 GE Dorian Gray Overlay and Controller
109	WB34X28912 GE Oven Backguard Component
113	WB31X28755 GE Oven Grate Assembly
114	WB62X28228 GE Range Top Assembly
122	WB01X24735 GE Oven CKT Screw
131	WB07X28824 GE Oven Trim Kit
132	WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
153	CAP BURNER ASM (15K)
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24724 GE Oven Medium Burner
158	WB16K10076 GE Oven Oval Burner Assembly
159	WB16X24722 GE Oven Gas Range XL Surface Burner
168	WB02X24976 GE Oven Igniter Clip V2
175	WB18X25597 GE Ground Harness
206	WB01X26995 GE Oven Screw 8-18 AB X 5/16
311	BUMPER
317	WB07X28819 GE Oven Vent Trim
781	GRIDDLE
