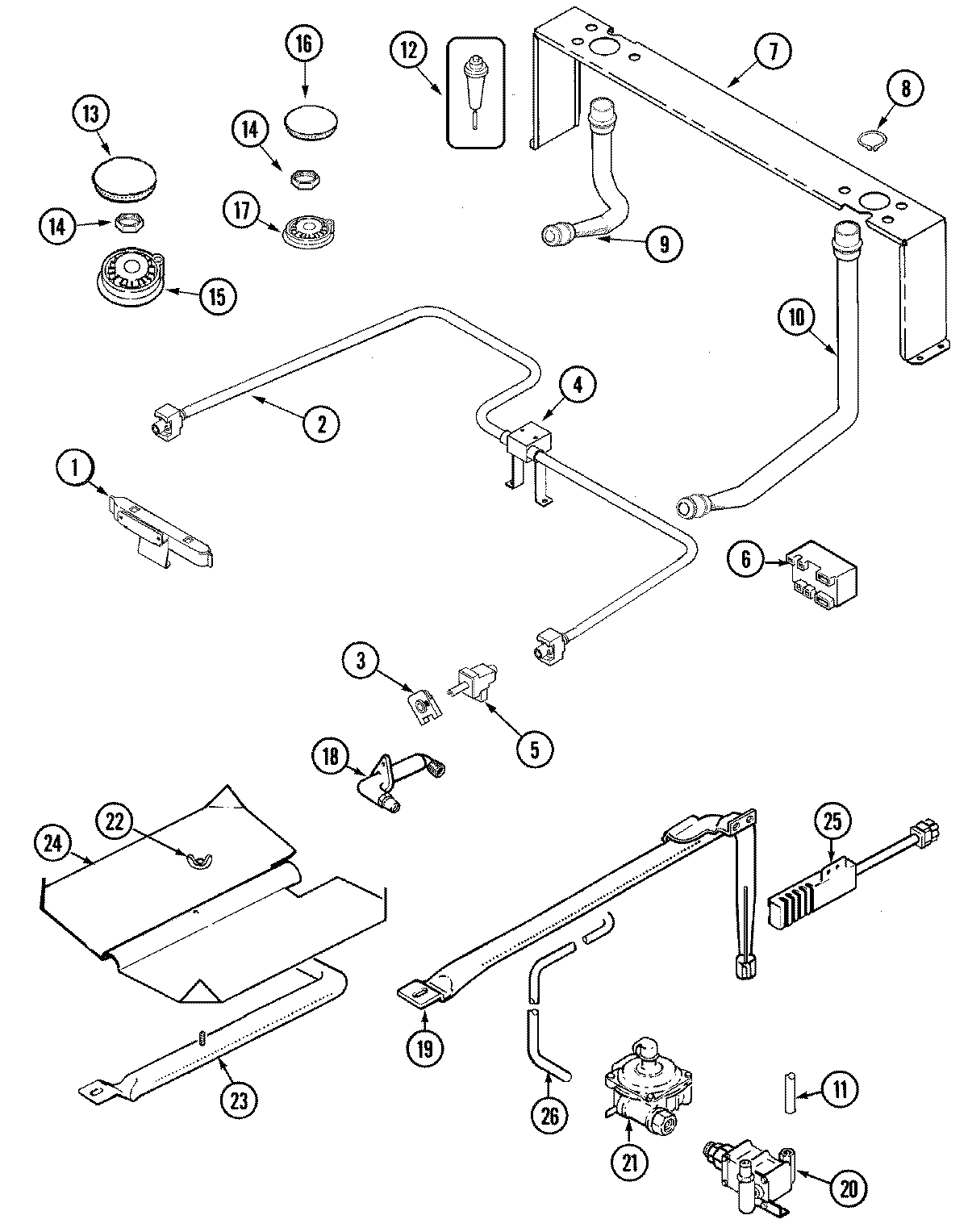

JGS8750ADB 03 – GAS CONTROLS

Products

Position	Product
1	MAY 74006023
2	MAY 74006024
3	SCREW (8BX3/8-NI)
3	MAY 74005998
3	74005997 Whirlpool Valve Switch Harness
3	WP74005954 Whirlpool Igniter Switch
4	MAY 74006026
4	MAY 74006027
5	12002342 Whirlpool Oven Valve Kit and Screw
5	12002343 Whirlpool Oven Valve Kit with Screw
5	MAY 74006028
5	MAY 74006029
5	MAY 71003231
6	WPW10475147 Whirlpool Spark Module
7	MAY 74005992
8	MAY 74005993
9	MAY 74006016
9	MAY 74006018
10	MAY 74006019
10	MAY 74006017
11	MAY 74004408
12	WP7432P109-60 Whirlpool Oven Igniter
13	MAY 74005345
13	CAP, BURNER (LRG-BLK)
14	MAY 74006032
15	MAY 74006022
15	MAY 74007186
16	WP74007196 Whirlpool Burner Cap
16	CAP, BURNER (SMR-MT BLK)
16	MAY 74005349
16	MAY 74005344
17	MAY 74006020
17	MAY 74006021
17	MAY 74007185
17	MAY 74007184
18	MAY 7507P088-60
18	MAY 74004307
18	WP3387230 Whirlpool Screw
19	MAY 3807F446-45
19	MAY 74003960
20	MAY 74006034
21	WP74006035 Whirlpool Regulator
21	MAY 74007796
22	NUT, WING
23	MAY 74004076
24	MAY 3601F217-47
24	MAY 74009231
25	MAY 4005F421-45
25	MAY 7432P075-60
26	MAY 74006000
27	MAY 74007017
