JGS8750ADS 03 – GAS CONTROLS

JGS8750ADS 03 – GAS CONTROLS

Written by

in

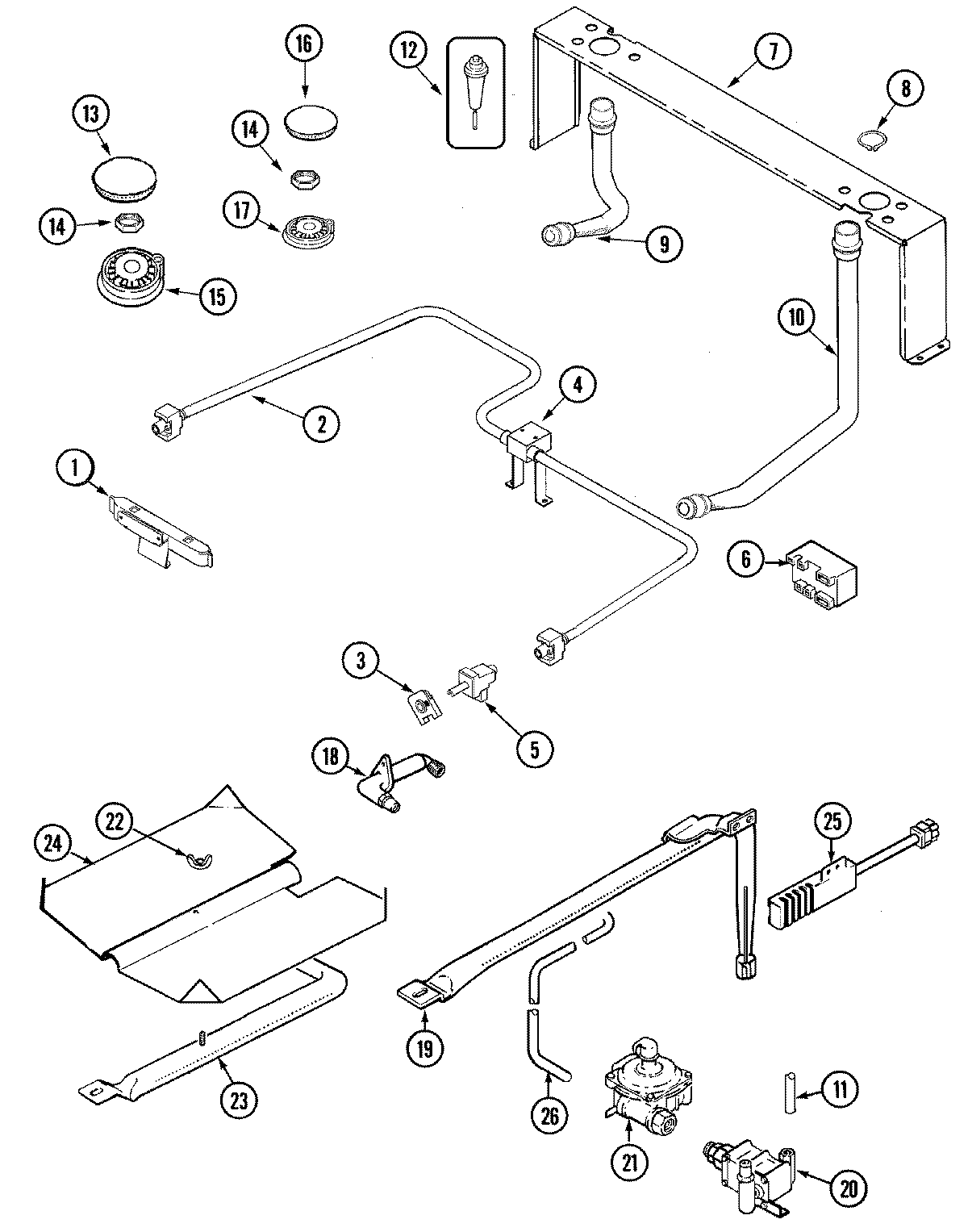

JGS8750ADS 03 – GAS CONTROLS

Products

PositionProduct
1MAY 74006023
2MAY 74006024
3SCREW (8BX3/8-NI)
374005997 Whirlpool Valve Switch Harness
3MAY 74005998
3WP74005954 Whirlpool Igniter Switch
4MAY 74006026
4MAY 74006027
5MAY 71003231
512002342 Whirlpool Oven Valve Kit and Screw
512002343 Whirlpool Oven Valve Kit with Screw
5MAY 74006028
5MAY 74006029
6WPW10475147 Whirlpool Spark Module
7MAY 74005992
8MAY 74005993
9MAY 74006016
9MAY 74006018
10MAY 74006017
10MAY 74006019
11MAY 74004408
12WP7432P109-60 Whirlpool Oven Igniter
13CAP, BURNER (LRG-BLK)
14MAY 74006032
15MAY 74007186
16CAP, BURNER (SMR-MT BLK)
16WP74007196 Whirlpool Burner Cap
17MAY 74007184
17MAY 74007185
18WP3387230 Whirlpool Screw
18MAY 74004307
18MAY 7507P088-60
19MAY 3807F446-45
19MAY 74003960
20MAY 74006034
21WP74006035 Whirlpool Regulator
21MAY 74007796
22NUT, WING
23MAY 74004076
24MAY 3601F217-47
24MAY 74009231
25MAY 4005F421-45
25MAY 7432P075-60
26MAY 74006000
27MAY 74007017
