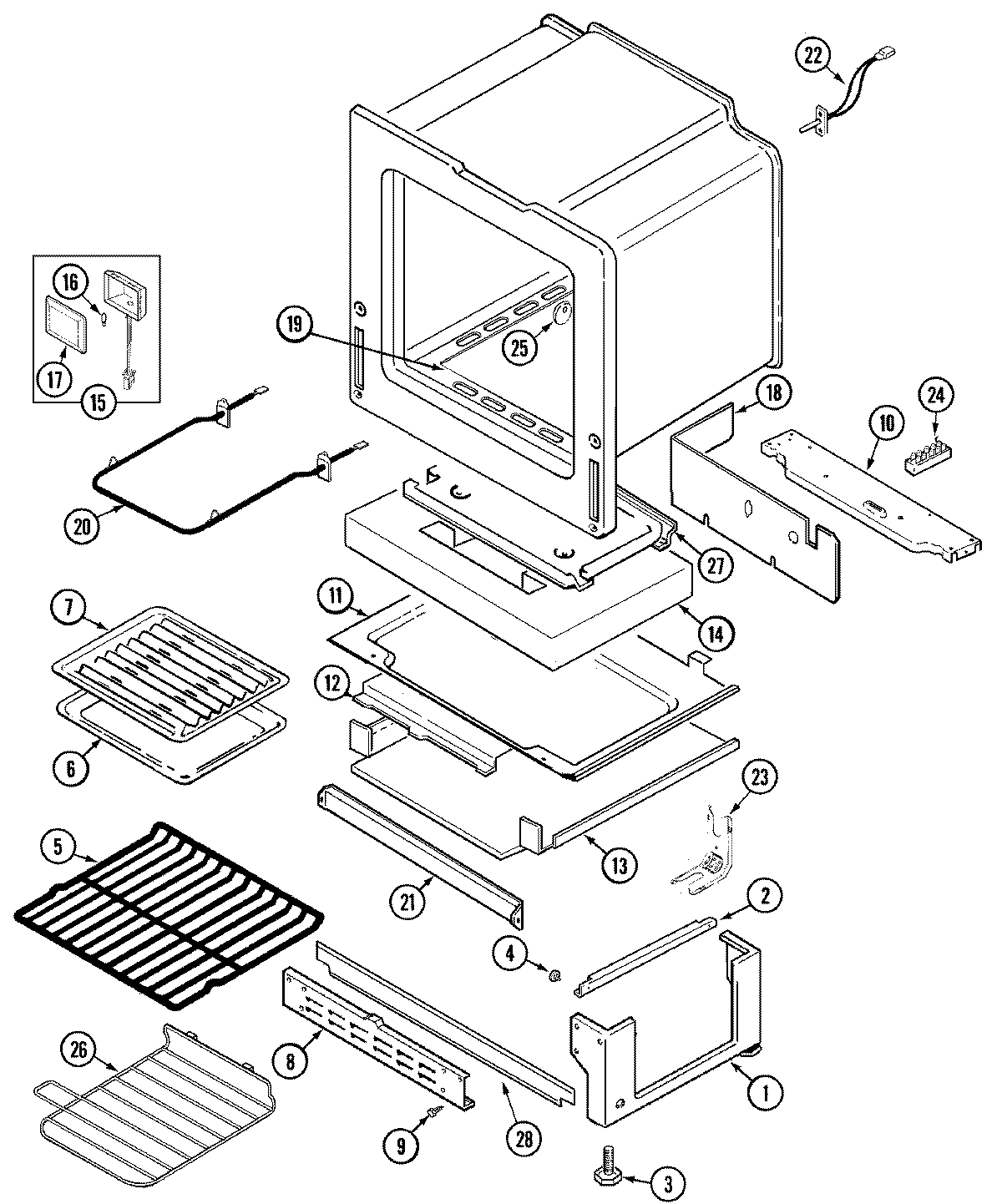

JGS8750ADS 04 – OVEN/BASE

Products

Position	Product
1	MAY 74005772
2	RUNNER, DRAWER
3	W11665456 Whirlpool Range Level Foot
4	WP488130 Whirlpool Air Conditioner Nut
4	SHAFT, STORAGE DRAWER ROLLER
4	WP74004078 Whirlpool Door Roller
5	WPW10282492 Whirlpool Oven Rack
6	MAY Y3401F02019
7	MAY Y3413F01619
8	MAY 4020F001-80
10	MAY 74005464
11	MAY 74004296
12	MAY 3604F204-51
13	MAY 74006591
13	MAY 3604F205-51
14	MAY 74003503
15	MAY 74005773
15	MAY 74011220
16	W10886919 Whirlpool Light Bulb
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	WP74004607 Whirlpool Light Lens
18	COVER, VALVE/REGULATOR
19	MAY 5504M004-19
19	MAY 3601F239-47
19	MAY 74002377
20	MAY 74003908
21	BAFFLE, OVEN FRONT
22	12001655 Whirlpool Oven Sensor
23	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
23	WP7101P485-60 Whirlpool Anchor Tip
24	MAY 74006037
25	MAY 702929
26	MAY 74003590
27	PAN, BAKE BURNER
27	SCREW
28	SCREW (8ABX1/2``-BLK)
28	MAY 74005723
