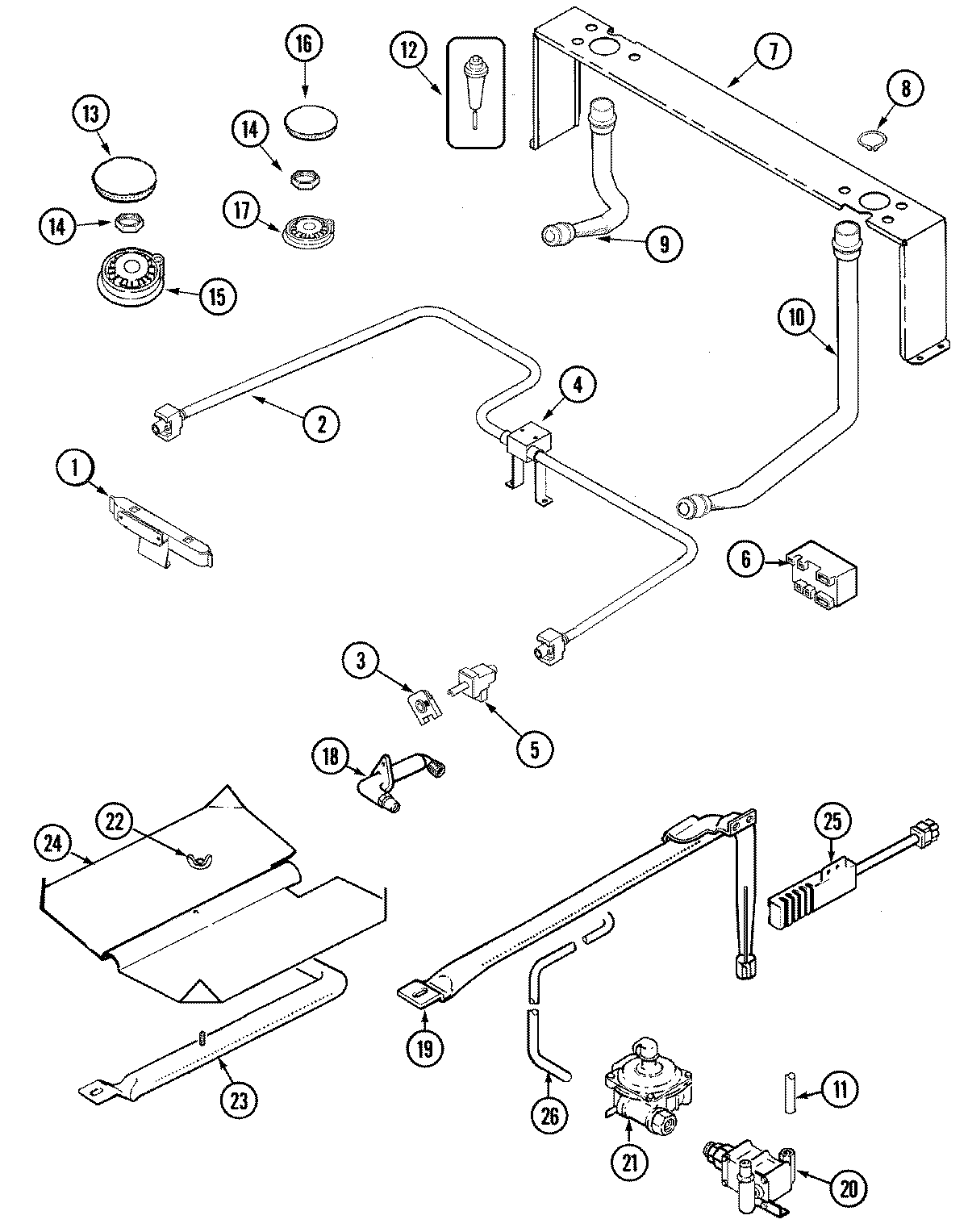

JGS8750ADW 03 – GAS CONTROLS
Written by
in
JGS8750ADW 03 – GAS CONTROLS
Products
Position
Product
1
MAY 74006023
2
MAY 74006024
3
SCREW (8BX3/8-NI)
3
MAY 74005998
3
74005997 Whirlpool Valve Switch Harness
3
WP74005954 Whirlpool Igniter Switch
4
MAY 74006026
4
MAY 74006027
5
12002342 Whirlpool Oven Valve Kit and Screw
5
12002343 Whirlpool Oven Valve Kit with Screw
5
MAY 74006028
5
MAY 74006029
5
MAY 71003231
6
WPW10475147 Whirlpool Spark Module
7
MAY 74005992
8
MAY 74005993
9
MAY 74006016
9
MAY 74006018
10
MAY 74006019
10
MAY 74006017
11
MAY 74004408
12
WP7432P109-60 Whirlpool Oven Igniter
13
MAY 74005968
13
MAY 74007204
14
MAY 74006032
15
MAY 74006022
15
MAY 74007186
16
MAY 74007197
16
MAY 74007192
16
MAY 74005966
16
MAY 74005967
17
MAY 74006020
17
MAY 74006021
17
MAY 74007185
17
MAY 74007184
18
MAY 7507P088-60
18
MAY 74004307
18
WP3387230 Whirlpool Screw
19
MAY 3807F446-45
19
MAY 74003960
20
MAY 74006034
21
WP74006035 Whirlpool Regulator
21
MAY 74007796
22
NUT, WING
23
MAY 74004076
24
MAY 3601F217-47
24
MAY 74009231
25
MAY 4005F421-45
25
MAY 7432P075-60
26
MAY 74006000
27
MAY 74007017
←
