JGS8750BDB 03 – DOOR/DRAWER (SER PRE 10)

JGS8750BDB 03 – DOOR/DRAWER (SER PRE 10)

Written by

in

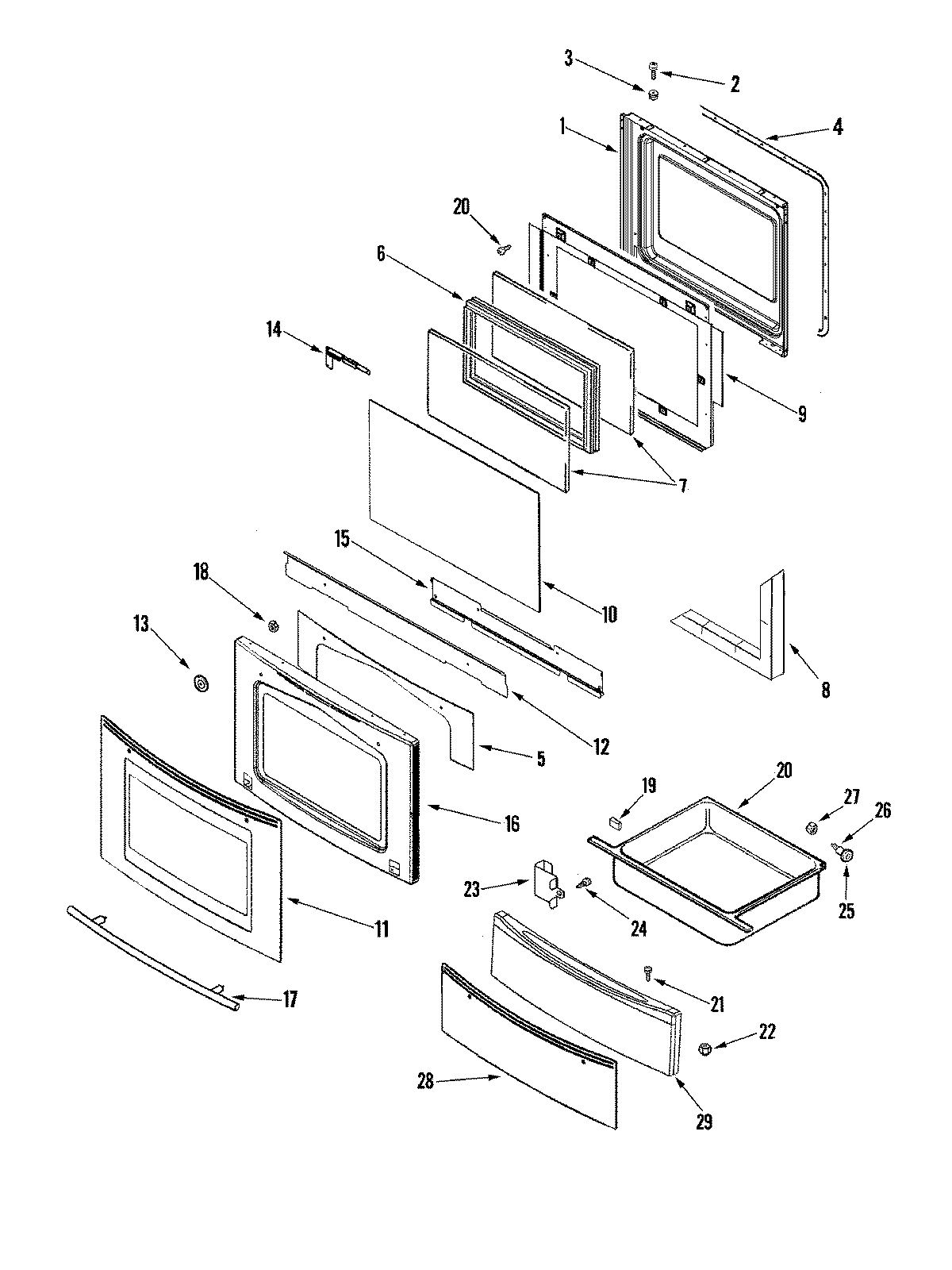

JGS8750BDB 03 – DOOR/DRAWER (SER PRE 10)

Products

PositionProduct
1MAY 74003642
2WP98008545 Whirlpool Screw
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 74011509
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9MAY 74011339
10GLASS, DOOR (INNER/COATED)
11MAY 74011511
12MAY 74011049
13MAY 74009194
14MAY 74011504
14MAY 74011503
15MAY 74007215
16MAY 74011507
17WP74008625 Whirlpool Door Handle
18WP3400029 Whirlpool Dishwasher Nut
19WP74005546 Whirlpool RU Spacer
20DRAWER, STORAGE
21SCREW
2274005230 Whirlpool Oven Lock Nut (8-32)
23MAY 74010896
24SCREW, 8 X 1/2
25WP74004078 Whirlpool Door Roller
26SHAFT, STORAGE DRAWER ROLLER
27WP488130 Whirlpool Air Conditioner Nut
28SCREW (8BX3/8-NI)
28MAY 74011543
29WP2416F086-70 Whirlpool Panel Assembly
